Description
- Cooling Capacity @ 70 F: 16720/12000 BTUH
- Airflow: 810 cfm (cubic feet per minute)
- Weight: 206 lbs.
- Capacity: 8000 - 15680 BTU
- Condensate Drain: .5" ID
- Power Requirements (volt/phase/hz): 230/1/60 & 208/1/60

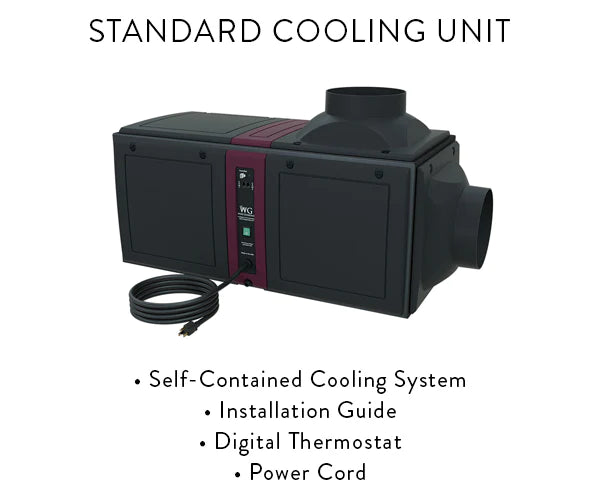

Sentinel Series Ducted Cooling Systems
Protect your wine investment. Wine Guardian’s Sentinel Series units are the strongest and most energy efficient wine cellar cooling systems on the market. They provide optimal temperature and humidity control for both commercial and residential cellars with a design that allows for easy installation and service. Ducted systems are self-contained units that contain the evaporator, fans, compressor, condenser, and controls. This means that installation is entirely indoors. These units can be placed outside the cellar, so the system can cool the space while remaining unseen and unheard.
The Sentinel Series ducted cooling systems have a broad range of capacities at wine cellar conditions (55-58°F/12-14°C). An optional humidifier can be installed with the ability to achieve 55-65% relative humidity.
Versatile and self-contained. Wine Guardian ducted wine cellar cooling systems have been engineered for maximum flexibility in design and installation. Advanced wine cellar cooling technology creates optimal environmental conditions for any sized wine collection in any sized space — whether that is a residential, a restaurant, or commercial wine cellar.
With ducted wine cellar conditioning systems, a grille on the inside cellar wall is connected by insulated flexible ductwork to the self-contained unit outside the wine cellar. These complete systems house the evaporator, fans, compressor, condenser, and controls in just a single unit.
OUT OF SIGHT, OUT OF MIND
Relish in the quietness of your wine room with no obtrusive equipment taking up valuable wine racking space. Ducted wine cellar cooling systems are designed to be installed in a space outside the wine cellar, keeping your wine cool and your cellar quiet, beautiful, and efficient.
INSTALLATION WITHOUT THE HASSLE
We’ve made ducted wine cellar cooling units easy for contractors to install. Just connect the ductwork, make the drain connection, and plug it in. That’s it. No cutting copper and no licensed contractor needed on site.
Need to install the system against a wall or ceiling? No problem. Multiple duct configurations can be made without having to remove the fan motor or any other internal component.
A SILENT GUARDIAN
Like knights of the olden days, Wine Guardian watches over your wine room’s conditions 24/7. Equipped with air sensing technology, Wine Guardian’s modern remote interface controller constantly monitors the temperature and humidity of your cellar. If conditions leave the optimal range, the system will take action and steer the cellar back to ideal temperatures – before your wine collection is affected.
FULL CONTROL IN ANY ROOM
The ducted system’s remote interface controller allows you to control temperature and measure humidity. With Wine Guardian-designed Wireless2Base™ technology, the controller can be placed inside the cellar, a kitchen, den or wherever is most convenient for you. An additional controller and remote sensors can be remotely connected for accurate measurements when the controller is placed outside the cellar.
IT'S NOT JUST THE TEMPERATURE. IT'S THE HUMIDITY.

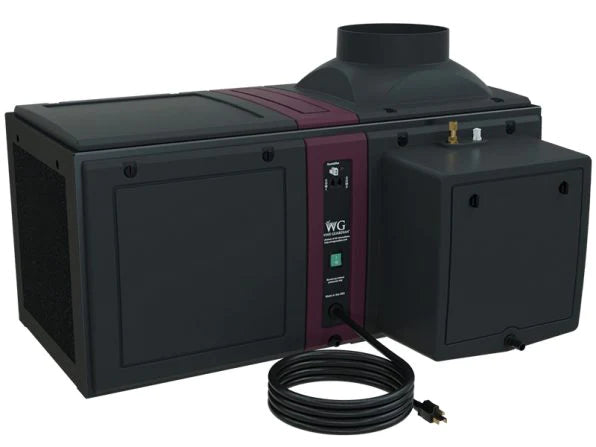

Crucial yet almost always overlooked, proper cellar humidification ensures you can enjoy 100% of the flavors of your wine. Mold, loss of liquid, and dried out corks are just some of the ways improper humidity can degrade wine quality. Wine Guardian humidifiers attach directly to your ducted system and introduce humidity back into your cellar.
SERVICEABILITY SIMPLIFIED
With easy access quarter-turn fasteners, we’ve made self-contained wine cellar cooling units simple for servicepersons to get into the ducted unit, make repairs, and move onto the next job. And unlike our competitors, all Wine Guardian units are fully serviceable in field without needing to be returned to factory.
Wine is your passion. Preserving it is ours.
- Accessible: Composite multi-panel design with integral captive quarter-turn fasteners allows for ease of access and serviceability. Interchangeable duct collars and solid panels can be simply configured during installation.
- Comprehensive: Our cooling systems offer a wide range of control, so you can match our units to your specific needs. Up to 3 optional remote sensors and 2 remote interface controllers with Wireless2Base™ technology can be added to your unit for easy monitoring and control of your cellar or in whatever room is most convenient for you.
- Efficient: The ducted system chassis features up to three times more insulation than previous versions. New stronger, double wall insulated duct collars insulate 42% more to help reduce temperature loss and condensation even in the most demanding environments.
- Bold: A sleek and modern look to compliment any wine cellar design.
- Strong: The Sentinel Series is made of the highest UL rated composite material, features an all aluminum chassis, and contains coated coils to ensure product durability. It is five times stronger than our previous model. The unit’s construction prevents dents and scratches from installation and shipping.
- Model: Sentinel D200
Performance
- @60 Deg F condenser inlet air (BTUH): 17680/12790
- @70 Deg F condenser inlet air (BTUH): 16720/12000
- @80 Deg F condenser inlet air (BTUH): 15680/11780
- @90 Deg F condenser inlet air (BTUH): 15000/10870
Controls
- Type: Digital electronic
- Temperature Accuracy/RH% Accuracy: 1F / 10%
Evaporator Section
- Fan Motor Size (Watts): 180
- Rated Air Flow (free blow) (CFM): 810
- Rated Air Flow @ pressure loss (CFM): 745 @0.35" wc
Electrical Requirements
- Current Draw - Cooling mode (Amps): 14.1
- Current Draw - Heating mode (Amps): 9.5
- Minimum Circuit amps (heat / no heat) (Amps): 11.7 / 17.2
- Optional Low Ambient (Amps): 0.2
- Optional High Ambient (Amps): N/A
- Optional Humidifier (Amps): 0.4
Cabinet
- Construction: Aluminum chassis & UL Rated plastic panels
- Finish: Gray Metal epoxy powder coat/textured PVC Acrylic blend
- Condensate Drain connection (ID): 0.50"
- Minimum Ductwork Size: 12"
- Agency approval (ETLc): UL 1995 / CSA C22.2

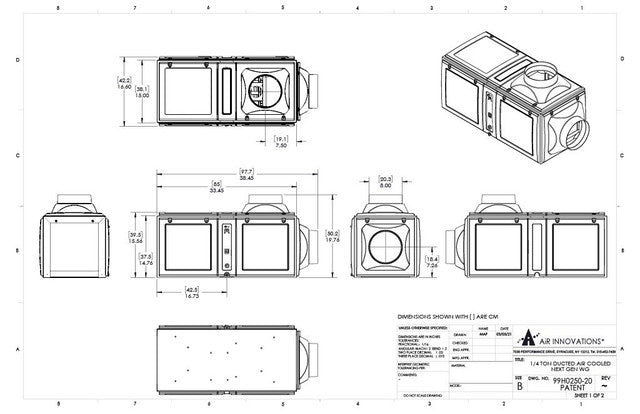

Dimensions
- Dimensions (inches): 41.5"W x 22.4"D x 18.85"H
- Weight: 206 lbs.
