Description
Features
Glass Ceramic Surface
Spend more time creating and less time cleaning with our easy-to-clean glass ceramic top and removable knobs. Wear-resistant glass ceramic surface extremely durable for easy cleanup.

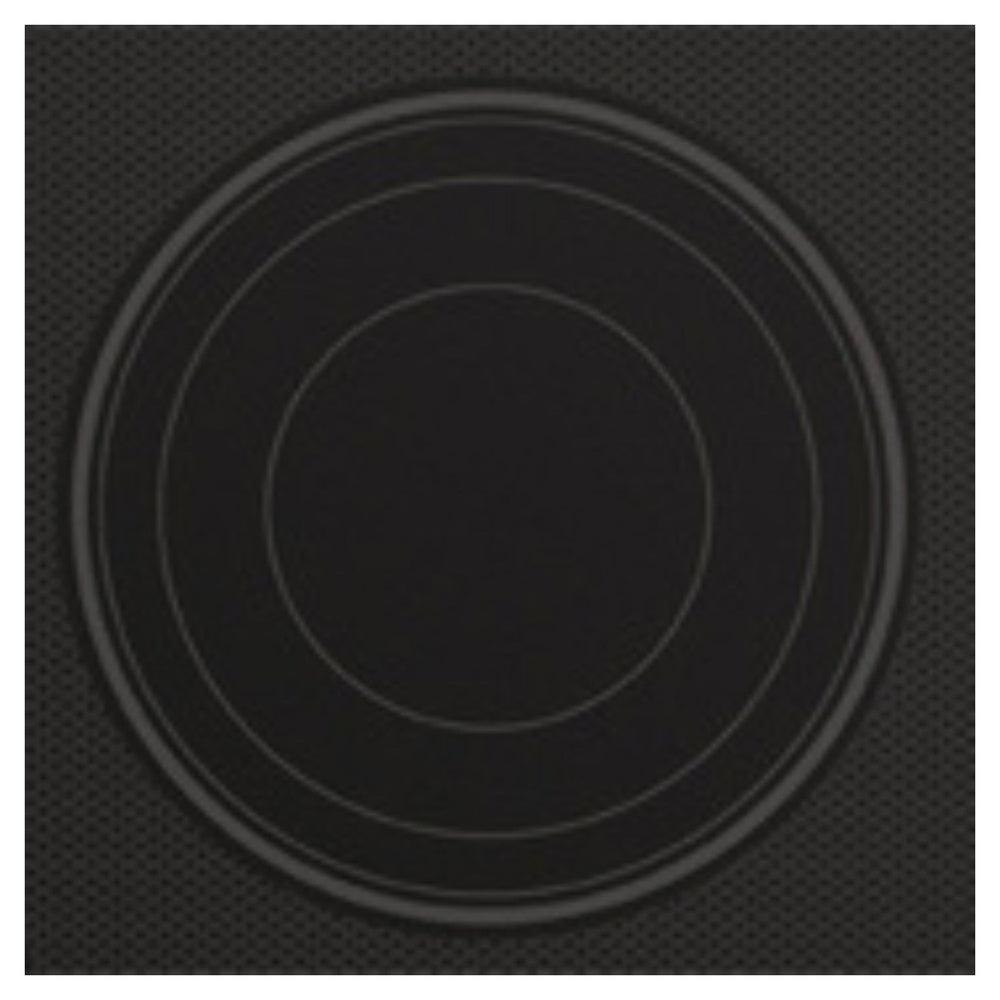

QuickCook Surface Elements
Fast high heat makes cooking a flash in the pan with our QuickCook surface elements. Surface elements utilize new ribbon technology elements – elements reaching full power in about three seconds.

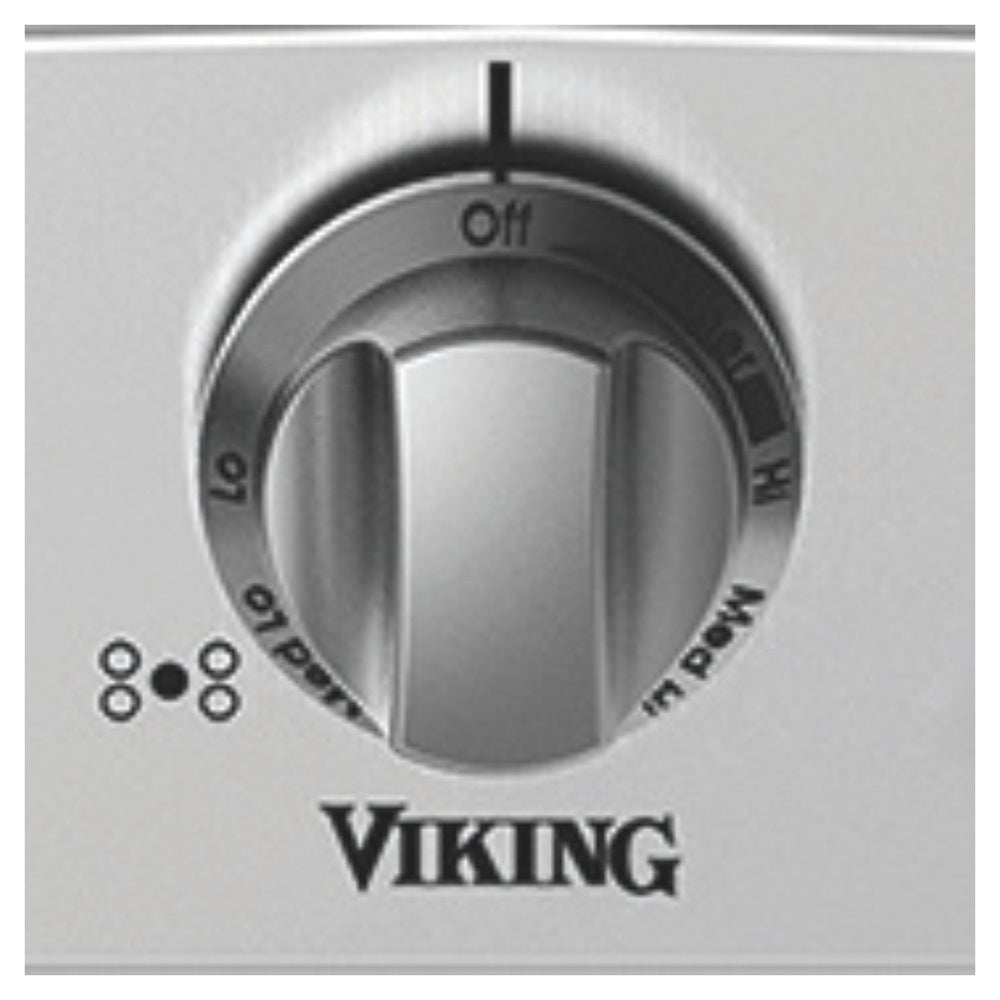

Metal Die-Cast Knobs
Keep everything under control with our childproof metal die-cast knobs. These removable, push-to-turn knobs provide safe, easy operation as well as cleanup.
Features and Functions
- Left front-8 1/2”, 2,000-watt dual element
- Left rear-6 1/2”, 1,200-watt single element
- Left center-12”, 3,200-watt triple element
- Right center-8 1/2”, 2,000-watt dual element
- Right front-8 1/2”, 2,000-watt dual element
- Right rear-6 1/2”, 1,200-watt single element
- QuickCook Surface Elements utilize ribbon technology to reach full power in about three seconds
- High infrared transmission for fast cooking, regardless of the type of cookware used
Easy Operation and Cleanup
- Strong, wear-resistant glass ceramic surface with stainless steel frame offers excellent cleanability
- Durable metal die-cast knobs with child-proof, push-to-turn safety feature
- Customer-removable knobs for easy cleaning
- Overall/burner box dimensions designed to fit the majority of similarly sized cooktop cutouts
Warranty Highlights
- One-year full-complete product
- Ninety-day full-cosmetic parts such as glass, painted items, and decorative items
- Five-year limited-surface burners
Specifications
Brand | Viking |
Appliance Category | Cooktop |
Appearance |
|
Color | Stainless Steel |
Color Family | Stainless Steel |
Design Style | Pro Style |
Dimensions |
|
Exterior Width | 36" |
Width | 35 7/8" |
Depth | 28 3/16" |
Height | 8 1/8" |
Cutout Width | 36" |
Cutout Height | 7 1/2" |
Cutout Depth | 24" |
Fuel Type |
|
Fuel Type | Electric |
Style |
|
Type | Rangetop |
Pro-Style | Yes |
Control Location | Front |
Cooking Surface |
|
Burner/Element Type | Radiant Element |
Number of Burners/Elements | 6 |
Grill | No |
Griddle | No |
French Top | No |
Highest Element Output | 3000 Watts |
Burner/Element Output N1 | 1500 Watts |
Burner/Element Output N2 | 3000 Watts |
Burner/Element Output N3 | 3000 Watts |
Burner/Element Output N4 | 1500 Watts |
Burner/Element Output N5 | 1800 Watts |
Burner/Element Output N6 | 1800 Watts |
Hot Surface Indicator Light | Yes |
Technical Details |
|
Voltage | 240 |
Amps | 49.2 |
Features |
|
Control Type | Knobs |
