Description
Features
Glass Ceramic Surface
Strong, wear resistant glass ceramic surface provides an easy-to-clean, continuous work surface and stainless steel frame.

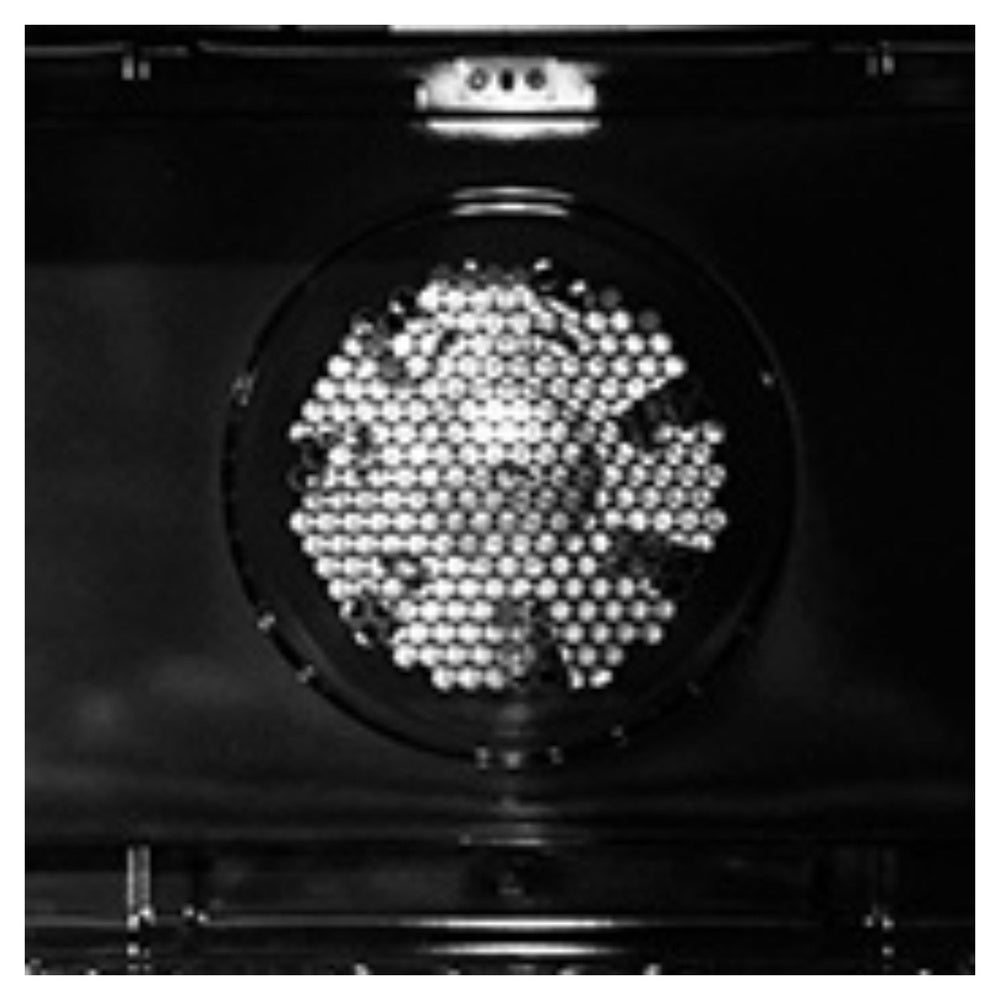

Vari-Speed Dual Flow Convection
Maximize air flow and fluffiness with Vari-Speed Dual Flow Convection system. Two-speed convection system capable of turning the fan in both directions. This combined with the largest convection fan blades in the industry provides maximum airflow.

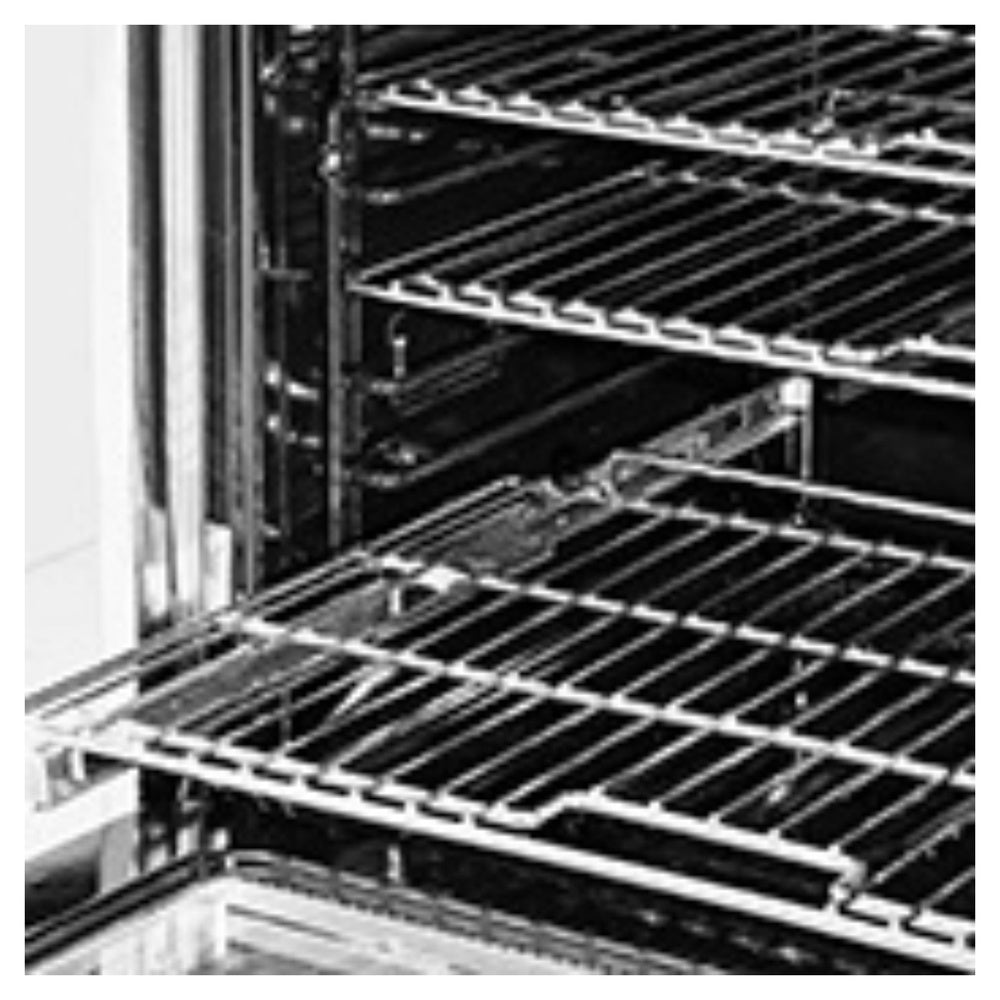

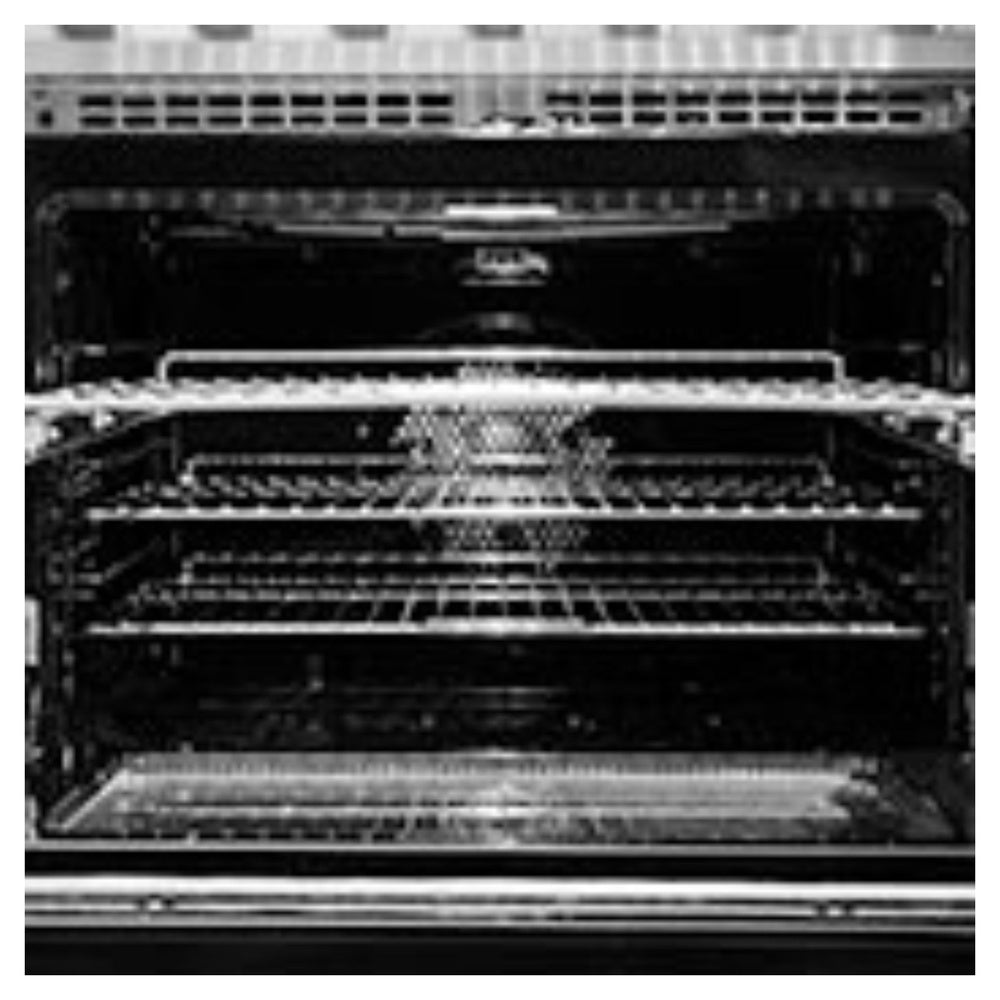

TruGlide Oven Racks
This large capacity oven has six rack positions and ships standard with one TruGlide oven rack and two standard racks.
Large Capacity Oven
With one of the largest capacity ovens in the industry, you can feed a crowd and still have leftovers. The RapidReady preheat system saves time by heating to the right temperature in a flash, so the oven is ready to cook when you are.
FEATURES AND FUNCTIONS
- Wide variety of surface element sizes and wattages, including a fifth element
- Left front-8-1/2” 2,000-watt dual element
- Left rear-6-1/2” 1,200-watt single element
- Center-12” 3,200-watt triple element
- Right front-6-1/2” 1,200-watt single element
- Right rear-8-1/2” 2,000-watt dual element
- QuickCook Surface Elements utilize ribbon technology to reach full power in about three seconds
- EXCLUSIVE-largest oven cavity in the industry
- 4.7 cu. ft. overall
- 4.1 cu. ft. measured to AHAM Standards See specifications chart for oven interior dimensions)
- High performance cooking modes include Bake, Convection Bake, TruConvec Convection Cooking, Convection Roast, Hi Broil, Medium Broil, Low Broil, Convection Broil, Convection Dehydrate, and Convection Defrost
- EXCLUSIVE-Patented Vari-Speed Dual Flow Convection System has the largest convection fan in the industry; the 8-1/2” fan works bi-directionally for maximum airflow and excellent cooking results
- Concealed 10-pass dual-bake element provides precise temperature control
- 10-pass broiler with heat reflector provides superior broiling performance
- Rapid Ready Preheat provides superfast preheating
- Oven has six porcelain-coated rack supports and comes standard with one TruGlide full extension oven rack and two standard racks
- Halogen oven lighting provides excellent visibility throughout oven cavity
- Shipped standard with Island trim
EASY OPERATION AND CLEANUP
- Extremely large self-clean convection oven
- Strong, wear-resistant glass ceramic surface with stainless steel frame offers excellent cleanability
- Durable metal die-cast knobs with child-proof, push-to-turn safety featureCustomer-removable knobs for easy cleaning
Specifications
| Brand | Viking |
| Series | 3 |
| Appliance Category | Range |
|
Appearance |
|
| Color & Color Family |
|
| Design Style | Pro Style |
|
Dimensions |
|
| Exterior Width | 30" |
| Width | 29 7/8" |
| Depth | 29" |
| Height | 35 7/8" |
|
Fuel Type |
|
| Fuel Type | Electric |
|
Style |
|
| Pro-Style | Yes |
|
Capacity |
|
| Number of Ovens | Single Oven |
| Oven Total Capacity (cu. ft.) | 4.7 |
|
Cooking Surface |
|
| Burner/Element Type | Radiant Element |
| Number of Burners/Elements | 5 |
| Highest Element Output | 3200 Watts |
| Burner/Element Output N1 | 2000 Watts |
| Burner/Element Output N2 | 1200 Watts |
| Burner/Element Output N3 | 3200 Watts |
| Burner/Element Output N4 | 1200 Watts |
| Burner/Element Output N5 | 2000 Watts |
| Hot Surface Indicator Light | Yes |
|
Oven |
|
| Oven Control Type | Knobs |
| Oven Cleaning Type | Self Clean |
| Interior Oven Light | Yes |
|
Technical Details |
|
| Voltage | 240 |
| Amps | 63.3 |
|
Features |
|
| Convection | Yes |
| Number of Racks | 3 |
| Cooktop Control Type | Knobs |
| Drawer | None |
