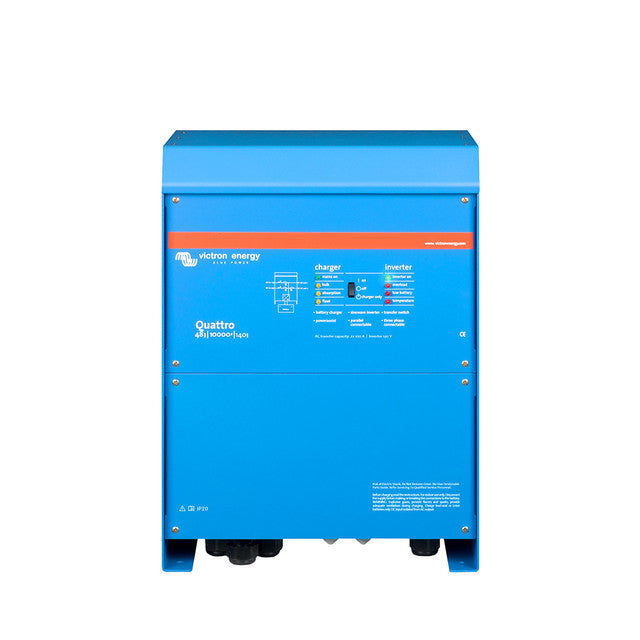

Victron Quattro 48/10000/140-100/100 120V VE.Bus UL

Victron Quattro 48/10000/140-100/100 120V Inverter/Charger (UL Listed)

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Key Features:

• Combined Inverter & Charger
  • Similar to the MultiPlus, the Quattro integrates both an inverter and a charger.
  • Accepts two AC inputs and automatically connects to the active power source.

• Two AC Inputs & Two AC Outputs
  • Automatically switches to the active source.
  • Connects to two independent AC sources (e.g., shore power & generator).
  • Main Output: No-break functionality—ensures uninterrupted power during grid failure or power disconnection.
  • Second Output: Activates only when AC is available, ideal for non-battery-dependent loads like air conditioning or water heaters.

• PowerAssist Technology
  • Prevents overload of a limited AC source (e.g., generator or shore power).
  • Dynamically reduces battery charging to prevent overload.
  • Boosts output using battery power when needed.

• High Power Scalability
  • Supports parallel operation—connect up to 6 Quattros for increased power output.
  • Compatible with three-phase and split-phase setups (refer to datasheets for model-specific capabilities).

• Remote Monitoring & Control
  • Works with a GX device (e.g., Cerbo GX) for local (LAN) and remote monitoring.
  • Free VRM app & portal for real-time system control from anywhere.
  • Access via phone, tablet, laptop, or PC to adjust settings, start backup generators, and more.
