Description

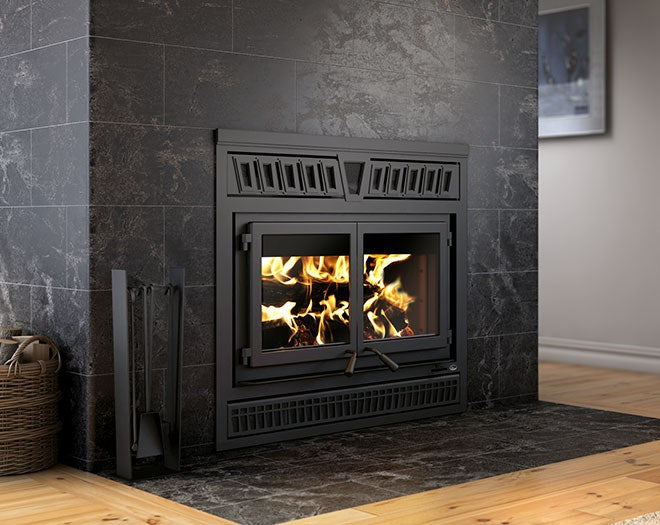

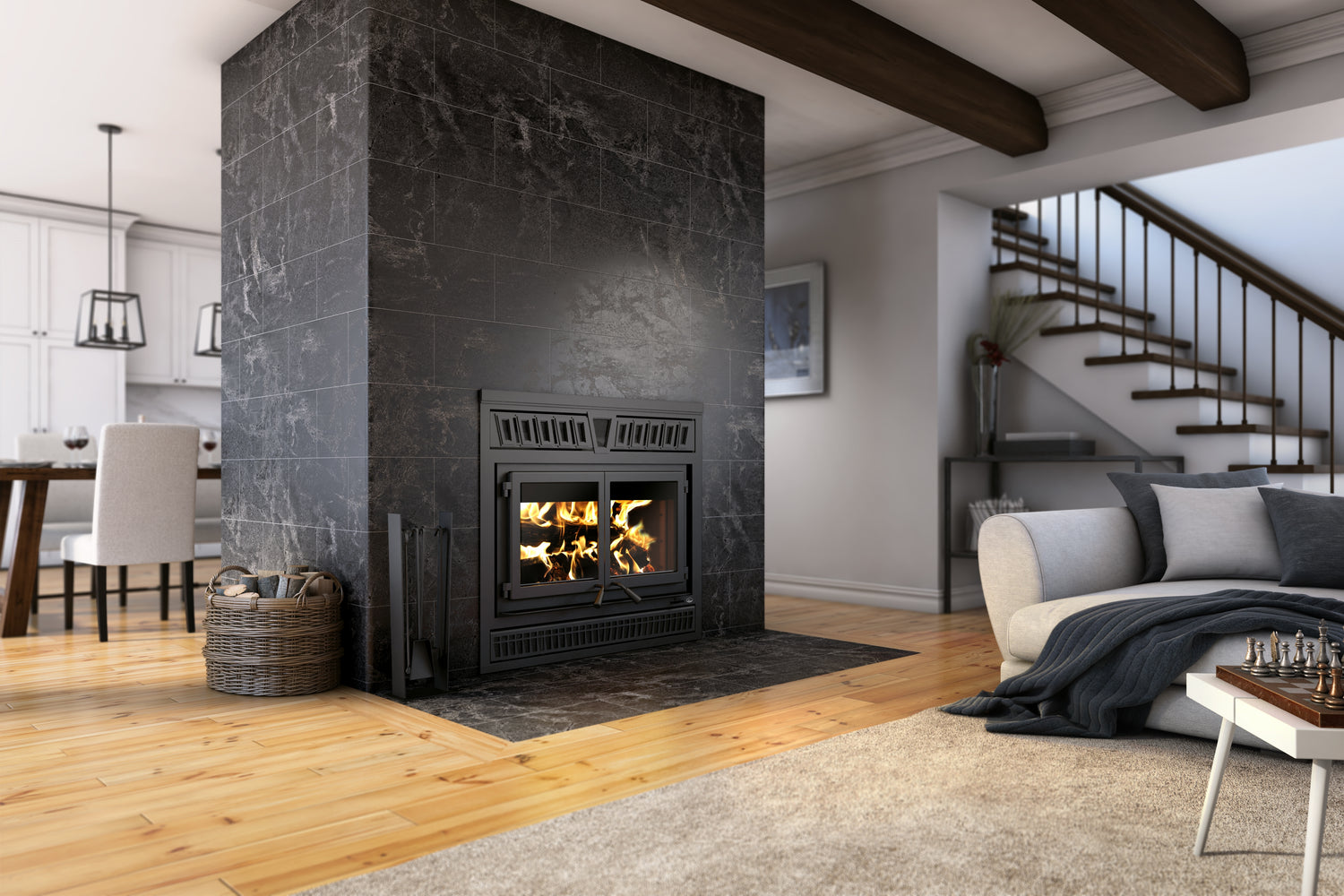

The largest model in our high-efficiency series, the Waterloo wood-burning fireplace is an additional heating source whose style is just as remarkable as its performance. Adorned with a crown-style faceplate, the Waterloo offers an impressive view of the flames. Behind its large glass doors, the firebox can hold a very large amount of wood to heat large spaces and burn for up to 11 hours on a single load.
The Waterloo’s smart air control system (patented) has been specifically designed to optimize combustion efficiency. Once the appliance is on and running, the combustion rate must be slowed down by manually closing the primary air damper. Then, when the system detects that the optimum combustion temperature has been reached, it automatically closes the second primary air damper and adjusts the secondary air control. Once the system is closed, it is possible to modulate the level of combustion by adjusting the auxiliary air control.
New Option - NightFlame Ceramic Glass
The ROBAX® NightFlame ceramic glass panels feature an elegant design in all circumstances, thanks to glass that changes appearance when the fire goes out. This new technology conceals the interior of the fireplace when not in use, while providing a clear view of the fire when it burns.
Specifications
| Feature | Details |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 25" |
| Log positioning | Loading over width |
| Chimney diameter | 8" |
| Flue outlet diameter | 8" |
| Type of chimney | CAN/ULC S604, UL 103 (1700 °F) - CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 545 lb (247 kg) |
| Door type | Double, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 29 3/4" X 13" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 176 |
| Overall dimension (Height) | 43 3/8" |
| Overall dimension (Width) | 50 3/4" |
| Overall dimension (Depth) | 31 5/8" |
| Door opening – dimension (Height) | 12 3/4" |
| Door opening - dimension (Width) | 33" |
| Firebox – dimension (Height) | 17" |
| Firebox – dimension (Width) | 25 3/8" |
| Firebox – dimension (Depth) | 17 7/8" |
| Moulded refractory bricks | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| USA standard (emissions) | EPA / ASTM WK47329 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 127 |
| Canadian standard (safety) | ULC-S610 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Approved chimney types
| Manufacturiers* | Brand | Type | Diameter |
|---|---|---|---|
| American Metal | HSS | AC Triple Wall | 8" (20 cm) |
| American Metal | HS | AC Triple Wall | 8" (20 cm) |
| DuraVent | Dura Tech | 1" Solid Pack | 8" (20 cm) |
| DuraVent | Dura Tech Canada DTC | 1" Solid Pack | 8" (20 cm) |
| DuraVent | Dura Tech Premium | 2" Solid Pack | 8" (20 cm) |
| DuraVent | DuraPlus HTC | 2" Solid Pack | 8" (20 cm) |
| DuraVent | DuraPlus | AC Triple Wall | 8" (20 cm) |
| Metal Fab | Temp Guard | 1" Solid Pack | 8" (20 cm) |
| Olympia Chimney | Champion Chimney System | 1" Solid Pack | 8" (20 cm) |
| Olympia Chimney | Rockford Chimney Systems | 1" Solid Pack | 8" (20 cm) |
| Olympia Chimney/SBI Venting Division | Ventis | 1" Solid Pack | 8" (20 cm) |
| SBI Venting Division | Nexvent | 1" Solid Pack | 8" (20 cm) |
| Security Chimney | S-2100 + | 2" Solid Pack | 8" (20 cm) |
| Selkirk | CF Sentinel (CF) | 2" Solid Pack | 8" (20 cm) |
| Selkirk | Super Pro 2100 (ALT) | 2" Solid Pack | 8" (20 cm) |
| Selkirk | Super Vent 2100 (JM) | 2" Solid Pack | 8" (20 cm) |
* Specific components may be required depending on the chimney manufacturer.
|
Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm) |
||
| Canada | United-States | |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" |
| Clearance – combustible side mantle to unit | 8" | 8" |
| Clearance – combustible side wall to unit | 24" | 24" |
| Clearance - from the shelf to the base of the fireplace | N.A. | N.A. |
|
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). |
||
|
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
||
