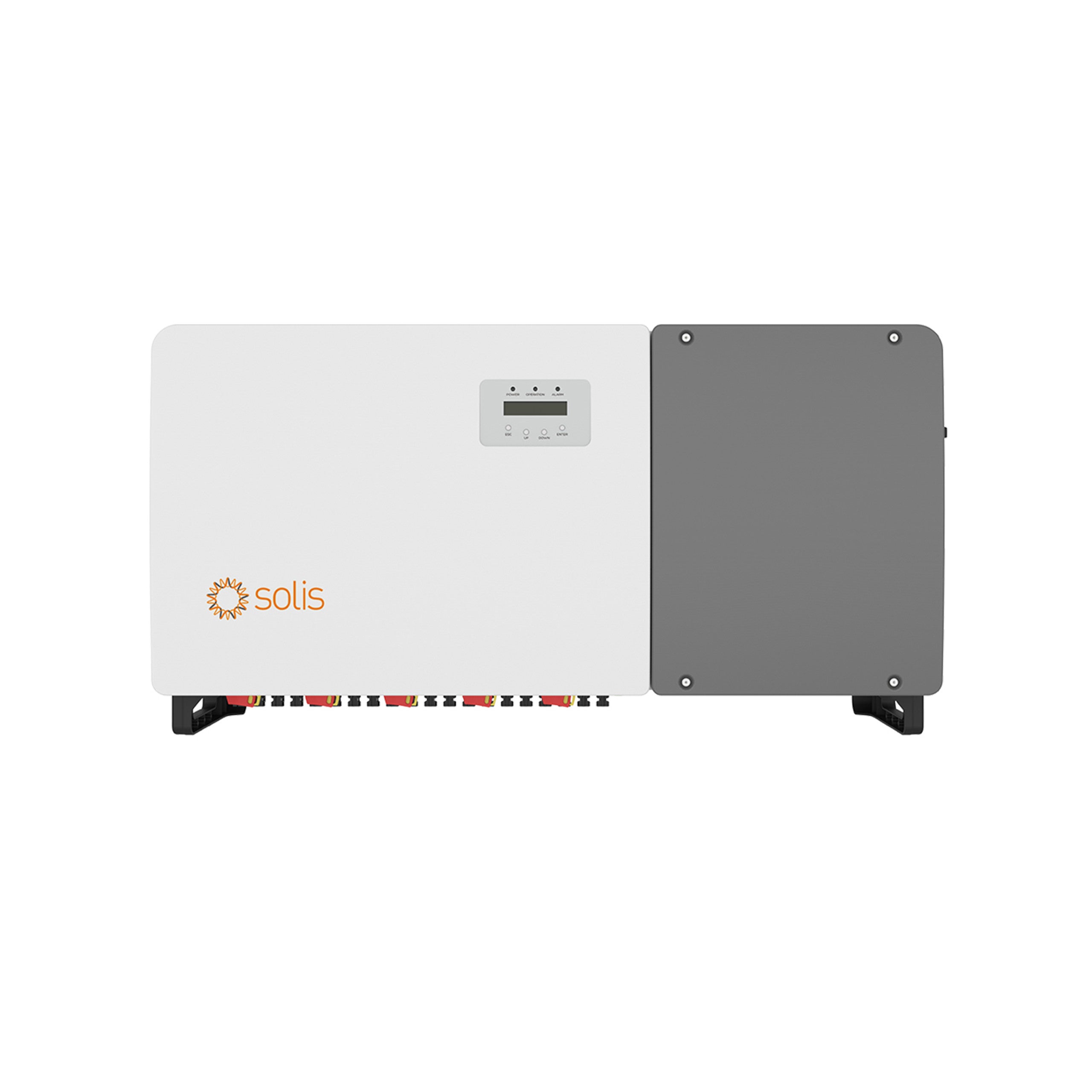

Solis | 100kW Three Phase Inverter | Ten MPPT w/ AFCI w/ FAN


Price:
Sale price$6,700.00

Description

Solis | 100kW Three Phase Ten MPPT w/ AFCI w/ FAN - 10 Year Standard Warranty

The Solis 100kW Three Phase Inverter is engineered for high-performance commercial and industrial solar energy systems. This inverter boasts ten Maximum Power Point Trackers (MPPTs), ensuring maximum energy harvest and efficiency. With an efficiency rating of up to 98.8% and advanced safety features like AFCI protection and intelligent cooling with a fan system, this inverter delivers reliable and optimal performance. The 10-year standard warranty provides peace of mind and long-term investment security.

Key Features:

  • Efficiency: Up to 98.8%
  • Safety: AFCI protection, anti-islanding, PID recovery
  • Smart Monitoring: Intelligent string monitoring, remote firmware upgrade
  • Cooling System: Efficient fan cooling
  • Warranty: 10-year standard warranty

General Data:

  • Weight: 200 lbs (91 kg)
  • Topology: Transformerless
  • Operating temperature range: -22°F to 140°F (-30°C to +60°C)
  • Ingress protection: TYPE 4X
  • Compliance: UL1741SB, UL1741SA, IEEE 1547-2018, UL1699B, UL1998, FCC Part 15 Class B, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2 107.1-1

Protection Features:

  • DC reverse-polarity protection
  • Surge protection (DC Type II / AC Type II)
  • Ground fault monitoring
  • Anti-islanding protection
  • Integrated AFCI (DC arc-fault circuit protection)
  • Integrated PID recovery

Max. input voltage: 1000V

Rated voltage: 600V

Max. input current: 10 x 32A

Spec Sheet

User Manual
