Description

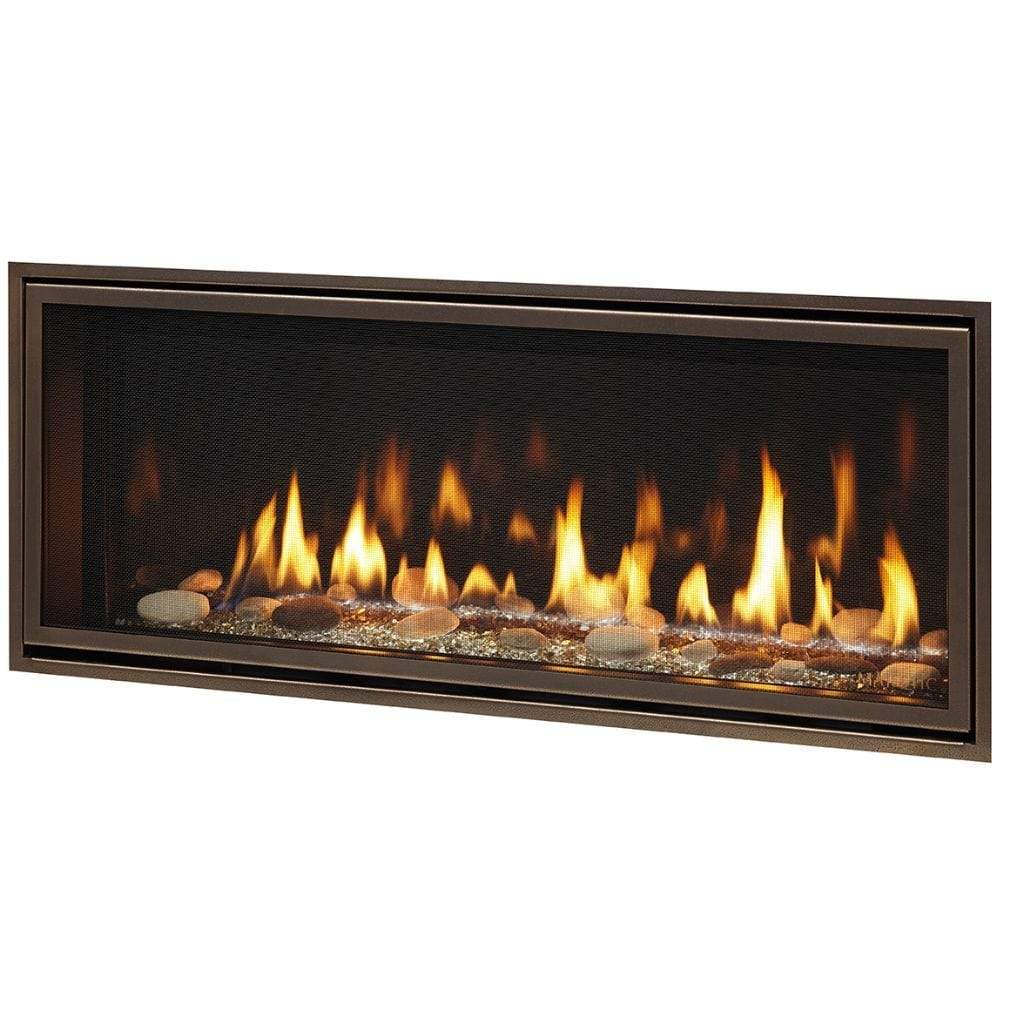

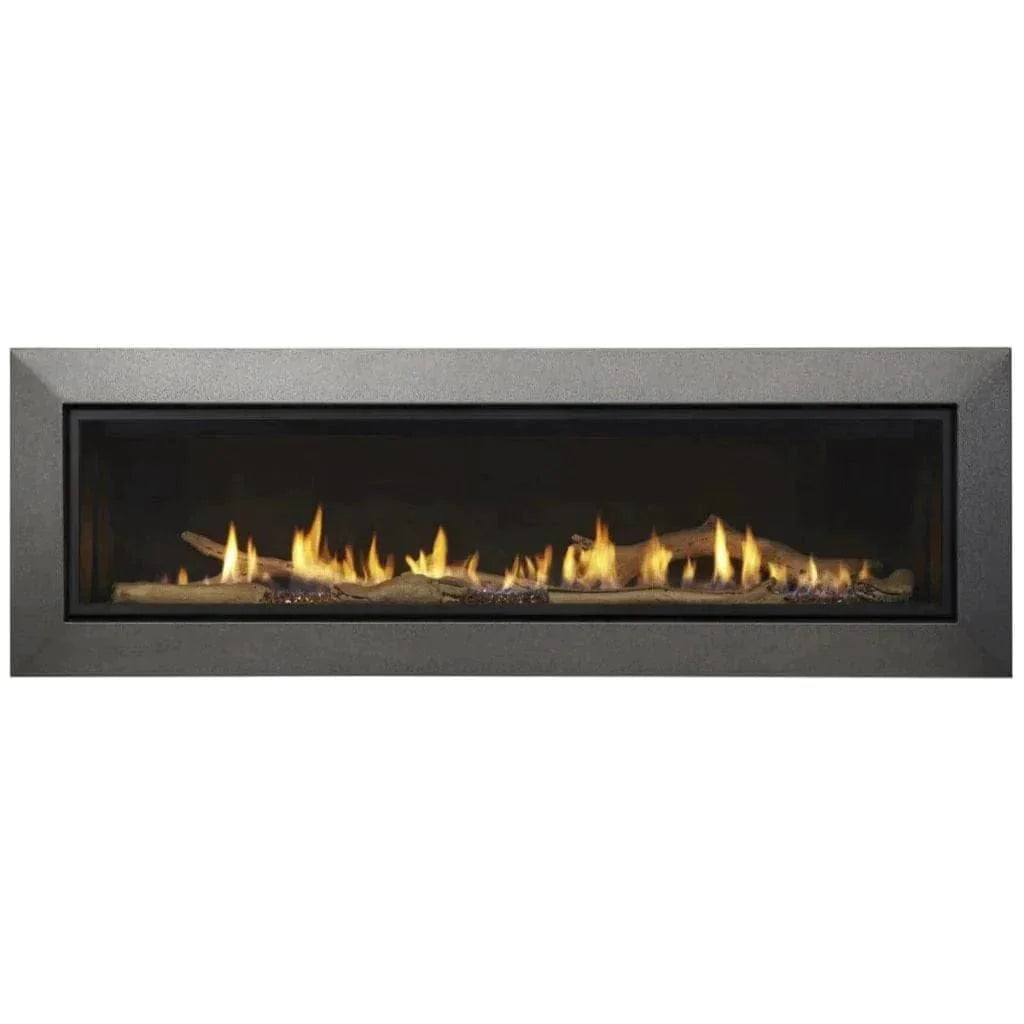

Majestic Echelon II 72" Linear Direct Vent Gas Fireplace
The Majestic Echelon II 72" Linear Direct Vent Fireplace brings warmth, elegance, and advanced technology to your home. Featuring vibrant flames, stunning LED lighting effects, and various customization options, this fireplace is designed to be the centerpiece of any space.

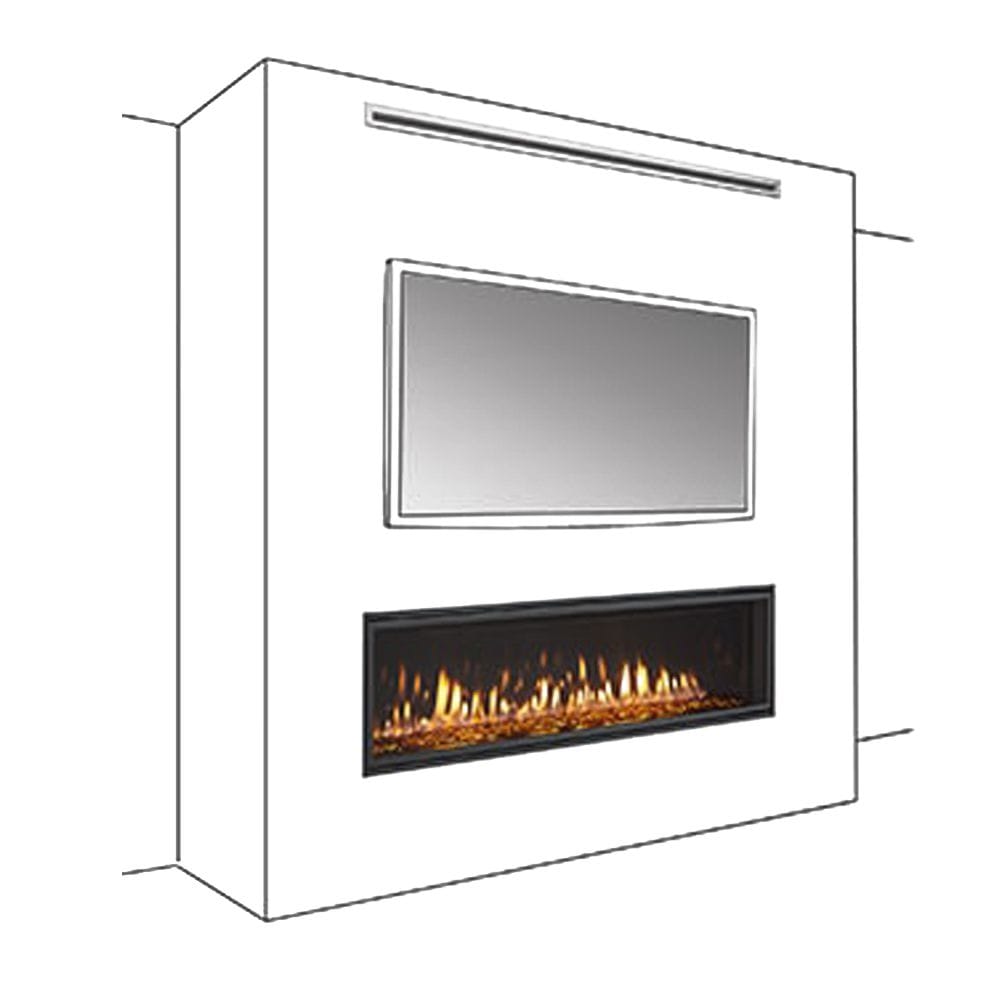

With passive heating technology, it allows for easy installation beneath a television. Optional Heat-Zone and Heat-Out systems (sold separately) enable better heat management. The IntelliFire Touch ignition system ensures safe and simple operation, while IntelliFire App compatibility and the RC400 remote control offer added convenience.

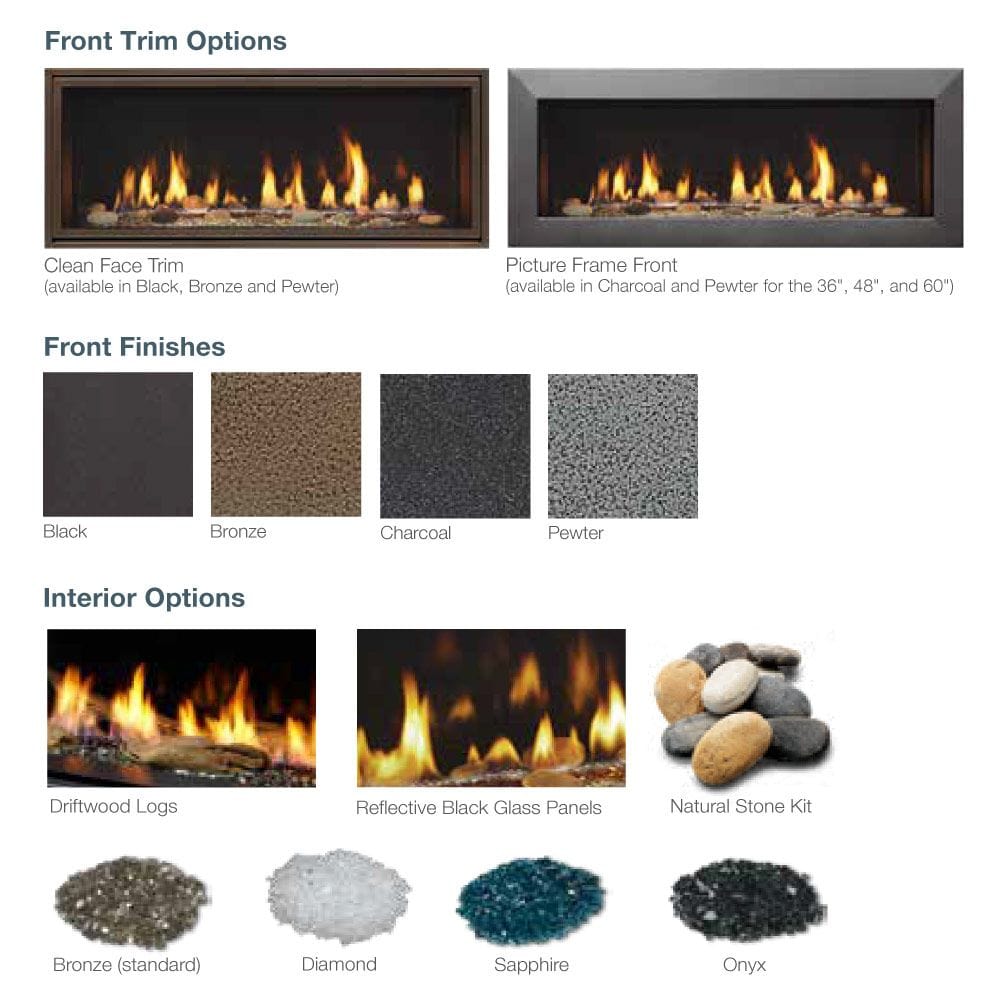

Customization Options
- Choose from four front options to complete your installation.
- Includes standard bronze glass media with upgrade options available.
- Media selection guidelines:
- Crushed Glass: 7 bags
- Natural Stones: 4 bags
- Log Set & Stones: 1 bag
What's Included
- Fireplace unit
- IntelliFire Touch ignition system
- Dimmable LED lights
- RC400 remote control
- Battery backup
- Ceramic glass
- Standard log set with bronze glass media
Optional Accessories (Sold Separately)
- Front (Required to Complete Installation)
- Driftwood Log Set
- Liner Kit
- LP Conversion Kit
- Heat Management System
Key Features
- Direct Vent Technology – Efficiently removes fumes and combustion exhaust from your home.
- IntelliFire Touch® – Provides control via touchscreen remote or wireless wall switch.
- Battery Backup – Ensures heat availability even during power outages.
- LED Ember Bed Glow – Creates an ambient glow with or without an active fire.
Specifications
| Model | Viewing Area | BTU Range | Venting Size | Venting Style | Ignition Type | Width | Height | Depth | Mobile Home Approved | Smartphone Control |
|---|---|---|---|---|---|---|---|---|---|---|
| ECHEL36IN-C | 35.5" x 12.5" | 17,500 - 30,000 BTU | 5" x 8" | Direct Vent | Electronic | 46.19" | 41.75" | 17.13" | Yes | Yes |
| ECHEL48IN-C | 47.5" x 12.5" | 20,000 - 40,000 BTU | 5" x 8" | Direct Vent | Electronic | 58" | 41.75" | 17.13" | Yes | Yes |
| ECHEL60IN-C | 59.5" x 12.5" | 20,000 - 50,000 BTU | 5" x 8" | Direct Vent | Electronic | 70" | 47.75" | 17.13" | Yes | Yes |
| ECHEL72IN-C | 71.5" x 12.5" | 25,000 - 58,000 BTU | 5" x 8" | Direct Vent | Electronic | 82" | 47.75" | 17.13" | Yes | Yes |
Bring luxury and warmth to your home with the Majestic Echelon II 72" Linear Direct Vent Fireplace—a perfect blend of modern aesthetics and cutting-edge technology.
