Heatilator Rave Direct Vent Gas Fireplace - RAVE32-IFT-B

Roll over image to zoom in Click on image to zoom

Heatilator Rave Direct Vent Gas Fireplace - RAVE32-IFT-B

Heatilator

Title: Default Title

Variant

Price:

$2,459.00

Quantity:

Share this product

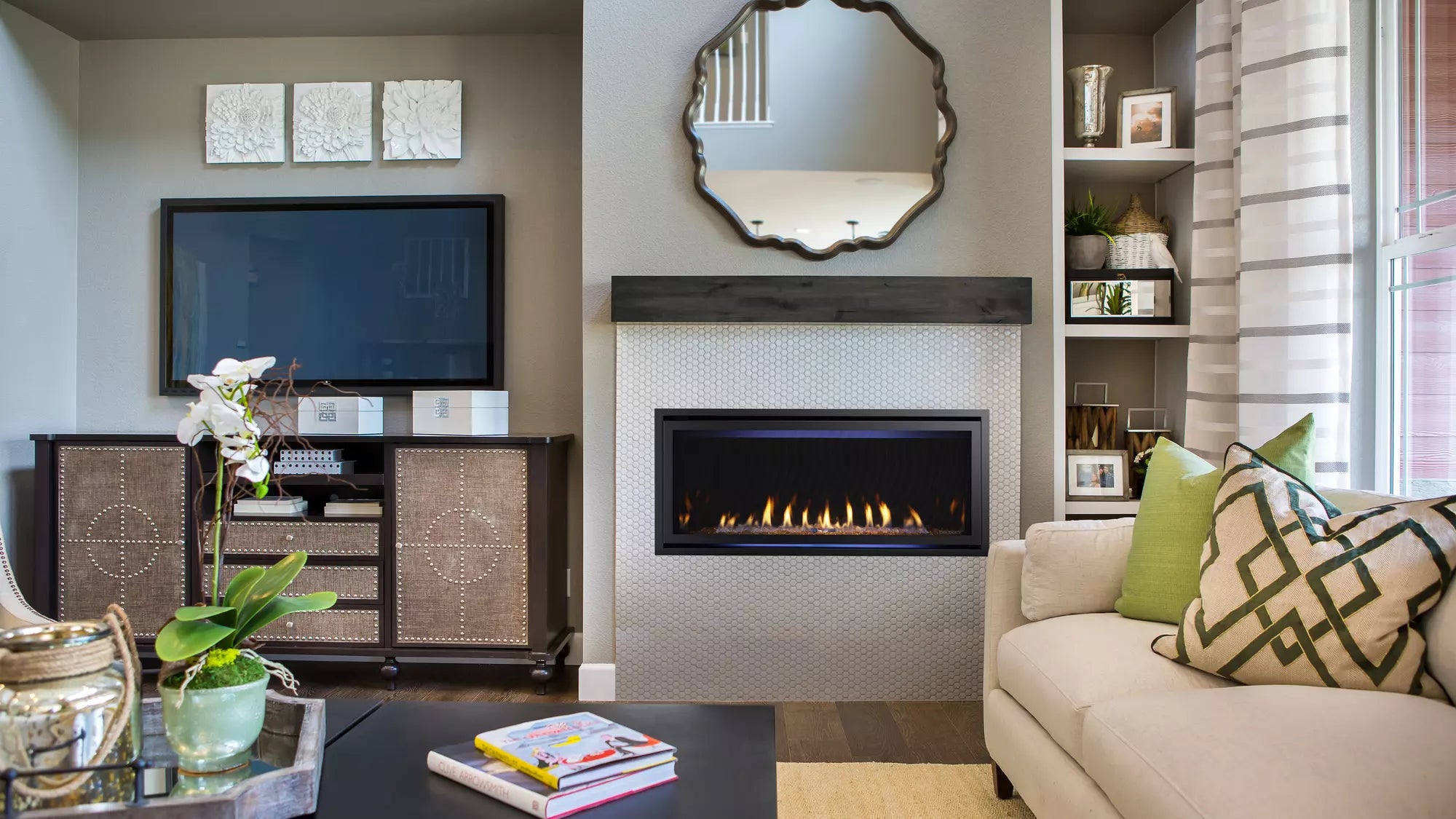

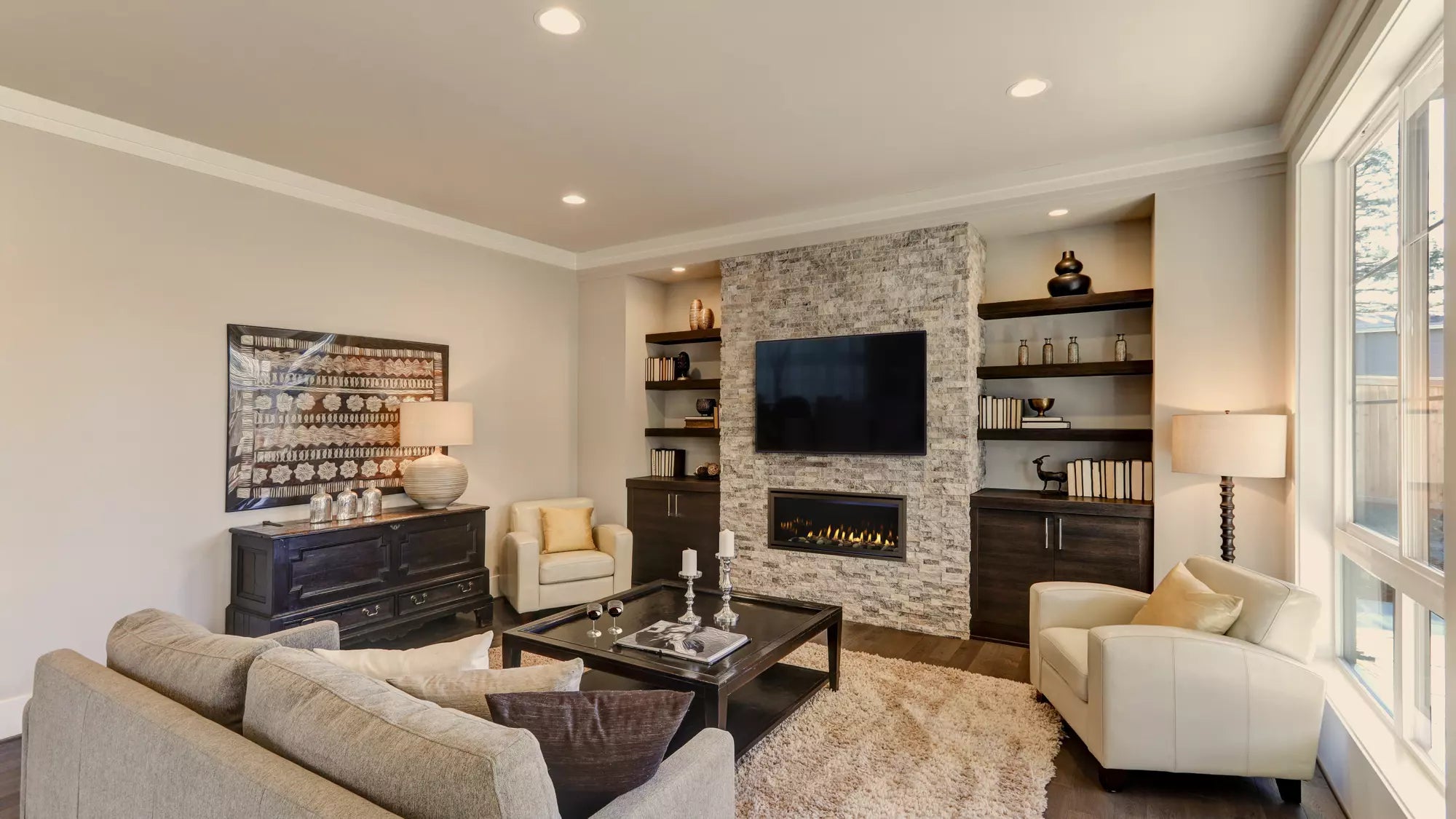

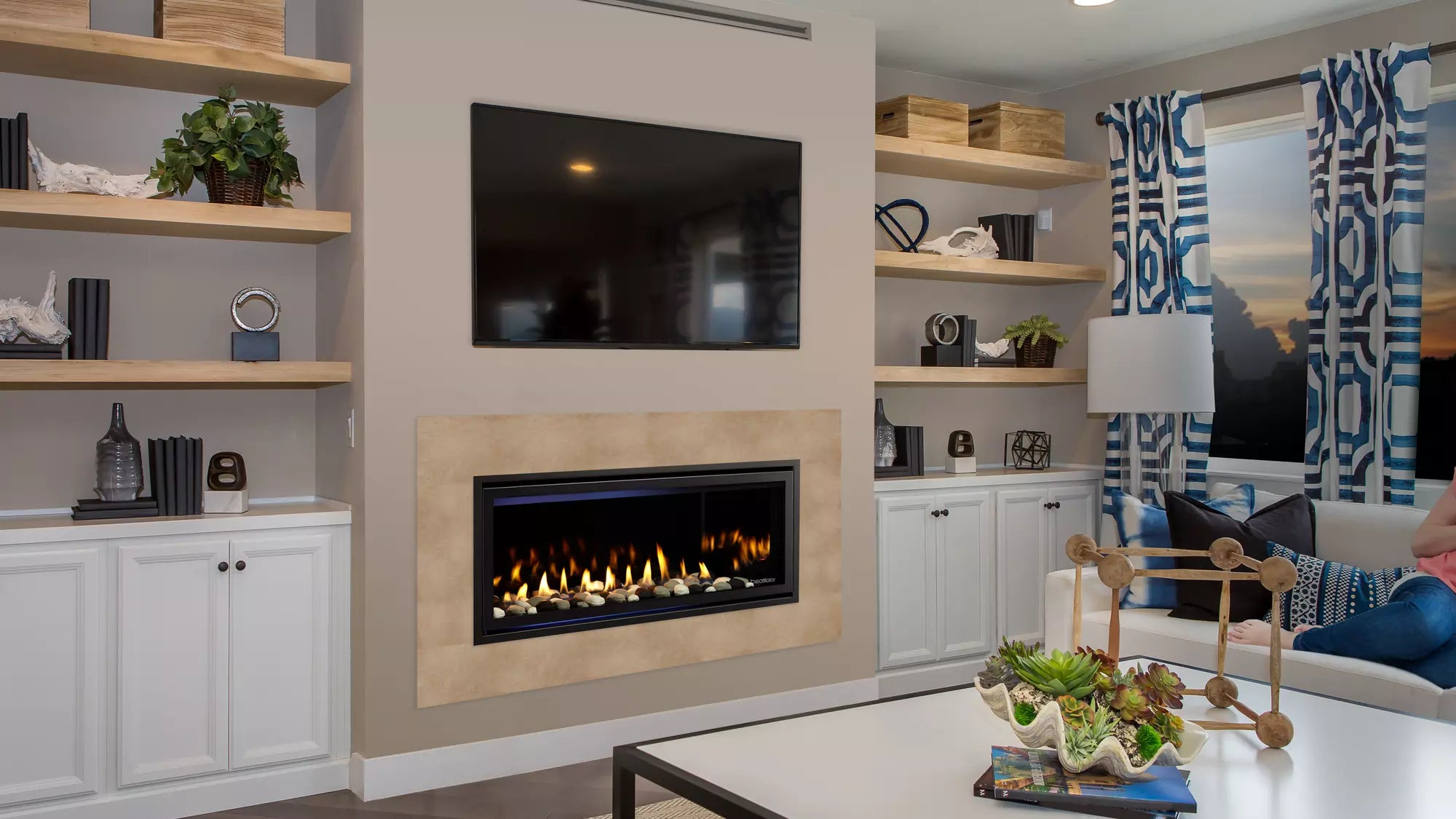

The Rave adds a modern, linear style and proven value to any home or office. Contemporary design elements are highlighted by a long, mesmerizing ribbon flame rising through attractive modern media. Explore unique placements and create a custom look with a choice of finishing options; include the optional Passive Heat kit to enable a TV just 12" above the Rave fireplace without a mantel.

What's Included

Fireplace Unit (NG)
IntelliFire Touch Ignition System
Gas Flex Connector
Tempered Glass
Junction Box
Battery Backup
Manual Gas Shut-off Valve
4" x 6-5/8" Top Vent Collar
If ordering lights or fan, you must order RC400

Not Included

Front (Required to Complete)
LP Conversion Kit
Media
Lighting
Glass Refractory
Fan
Heat Management
Other Controls/Remotes/Switches

Features

Available in 32", 36", or 42" wide viewing area sizes.
Moderate heat output—up to 25,250 BTUs
Multiple interior finishing options
Optional heat management solution kits are available that redirect heat to another area of the home, including Passive Heat™ and Heat-Zone
Battery Backup - Ensures you always have a reliable source of warmth even with a winter power outage.
Direct Vent Technology - Removes any fumes or combustion exhaust efficiently and effectively from your home.
IntelliFire Touch® - Offers you a touchscreen remote control or wireless wall switch to fit your life.

Venting Notes

If installing a Passive Heat Kit you cannot use a fan.
Requires SLP series pipe. See Venting Section.
Approved for use with PVLP-SLP, PVI-SLP-B and PVV-SLP with power vent wire harness and IFT-RC400 remote (order separately). See venting section of manual.

Specifications

Item Number	RAVE36-IFT-B
Brand Name	Heatilator
Series	Rave
Model	Rave 36 36" Gas Fireplace - DV
Fuel Type	Natural Gas Liquid Propane using Conversion Kit
Viewing Area	32-1/4" x 15-1/4"
BTU/hr Input	14,500 - 20,500 (NG) 14,000 - 19,000 (LP)

Technical Specifications

	Actual (Unit)	Framing
Front Width (A)	41"(10419mm)	42" (1067mm)
Back Width (B)	30-3/4" (781mm)	42" (1067mm)
Height (C)	33-11/16" (856mm)	32-3/4" (832mm)
Depth (D)	17-3/4" (451mm)	17-3/4" (451mm)
