Description
The Heirloom provides authentic masonry style without the costs of a site-built masonry fireplace. The largest viewing areas in their class showcase intense fires, textured brick interior panels, powerful heat and high-efficiency performance.
What's Included
- Fireplace Unit (NG)
- RC400 Touchscreen Remote
- Ceramic Glass
- Gas Flex Connector
- 7 Ceramic Fiber Logs
- Manual Gas Shut-off Valve
- Junction Box
- IntelliFire Touch Ignition System
Not Included
- Fronts (Required to Complete)
- LP Conversion Kit
- Reflective Black Glass Walls
- Heat Management
- Other Controls/Remotes/Switches
Features
- Available in 36", 42" and 50" viewing area sizes.
- Authentic masonry style without the costs of a site-built masonry fireplace.
- High-efficiency, AFUE-rated performance
- Heater listed to ANSI Z21.88 standards
- Battery Backup - Ensures you always have a reliable source of warmth even with a winter power outage.
- Flush Hearth - Creates a traditional look where the fireplace floor is flush with the hearth or the room floor.
- Direct Vent Technology - Removes any fumes or combustion exhaust efficiently and effectively from your home.
- IntelliFire Touch® - Offers you a touchscreen remote control or wireless wall switch to fit your life.
- Choose from standard traditional or herringbone interior panels:
- Traditional - Creates an authentic masonry-type fireside experience with classic brick interior panels in a traditional look.

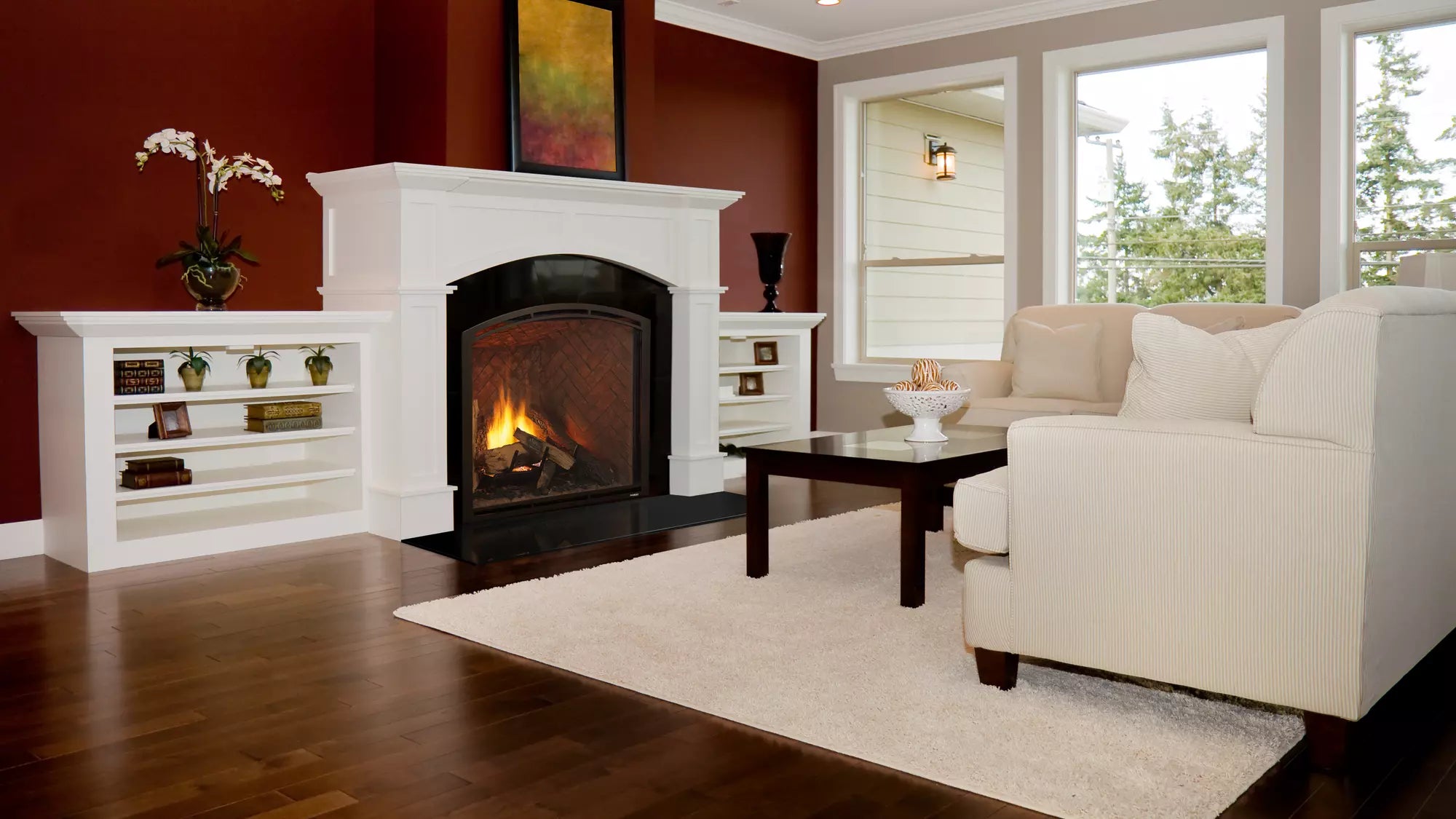

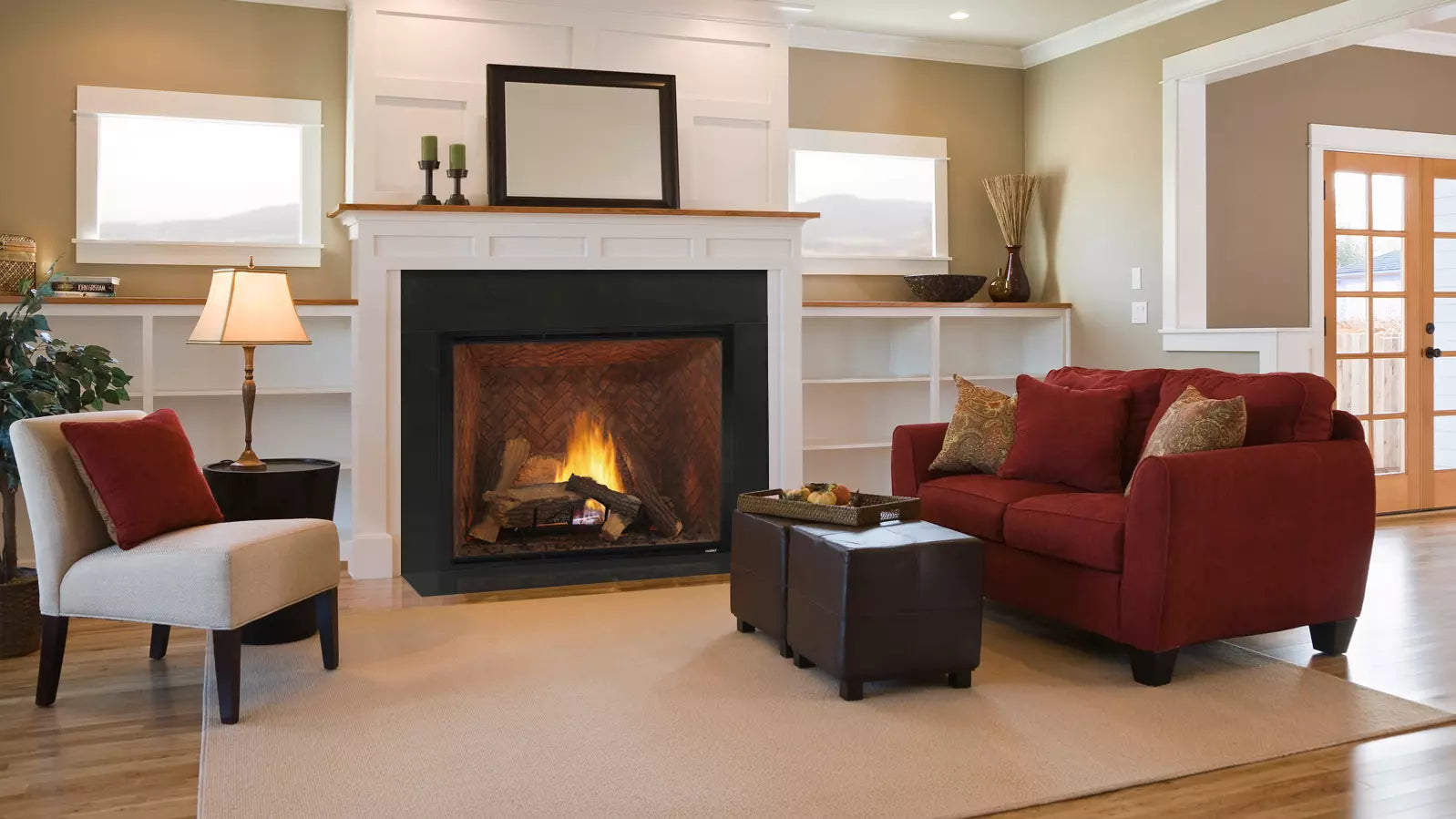

- Herringbone - Creates an updated look for your firebox interior with an angled brick and mortar appearance.
Venting Notes
- Requires 8" DVP pipe. Must have a 24" minimum vertical vent before attaching a 90° elbow to unit. See Venting section.
- Approved for use with PVLP-SLP, PVI-SLP-B and PVV-SLP with power vent wire harness (order separately) and IFT-ACM (ordered separately). See venting section of manual.
Specifications
Item Number | HEIR42T-IFT |
Brand Name | Heatilator |
Series | Heirloom |
Model | Heirloom 42 |
Fuel Type | Natural Gas Liquid Propane using Conversion Kit |
Viewing Area | 41-7/8" x 36-1/16" |
BTU/hr Input | 30,000-54,000 (NG) 23,500-47,500 (LP) |
Technical Specifications
Actual (Unit) | Framing | |
Front Width (A) | 67" (1702mm) | 65-9/16" (1665mm) |
Back Width (B) | 65-5/16" (1659mm) | 65-9/16" (1665mm) |
Height (C) | 62-5/8" (1591mm) | 61" (1549mm) |
Depth (D) | 24" (610mm) | 24"(610mm) |
Documents & Files
- Heirloom Series - Product Brochure
- Installation Manual
- Owner's Manual
- Service Parts
- Architect Guide
- Revit BIM
-
Arch Kit Instructions
-
Decorative Front Instructions
-
Glass Refractory Instructions
-
Heat-Out-Gas Instructions
-
Heat-Zone-Gas Instructions
-
IFT Field Service Guide
-
IntelliFire App Quick Start Guide
-
IntelliFire App User Guide
-
IntelliFire Touch IFT-ACM Instructions
-
IntelliFire Touch IFT-RC150 User Guide
-
IntelliFire Touch IFT-RC150 Instructions
-
IntelliFire Touch IFT-RC400 User Guide
-
IntelliFire Touch IFT-RC400 / IFT-ACM Instructions
-
PVI-SLP Power Vent Inline Instructions
-
PVI-SLP-B Power Vent Inline Instructions
-
PVLP-SLP - Power Vent Low Profile Instructions
-
Retrofit Kit Installation instructions
-
Stone Facing Installation
-
UNIV-AS2 Attic Insulation Shield 4033-368 Instructions
-
VPK-DV Vinyl Protection Kit Instructions
- Wi-Fi Module Installation Instructions
