Description

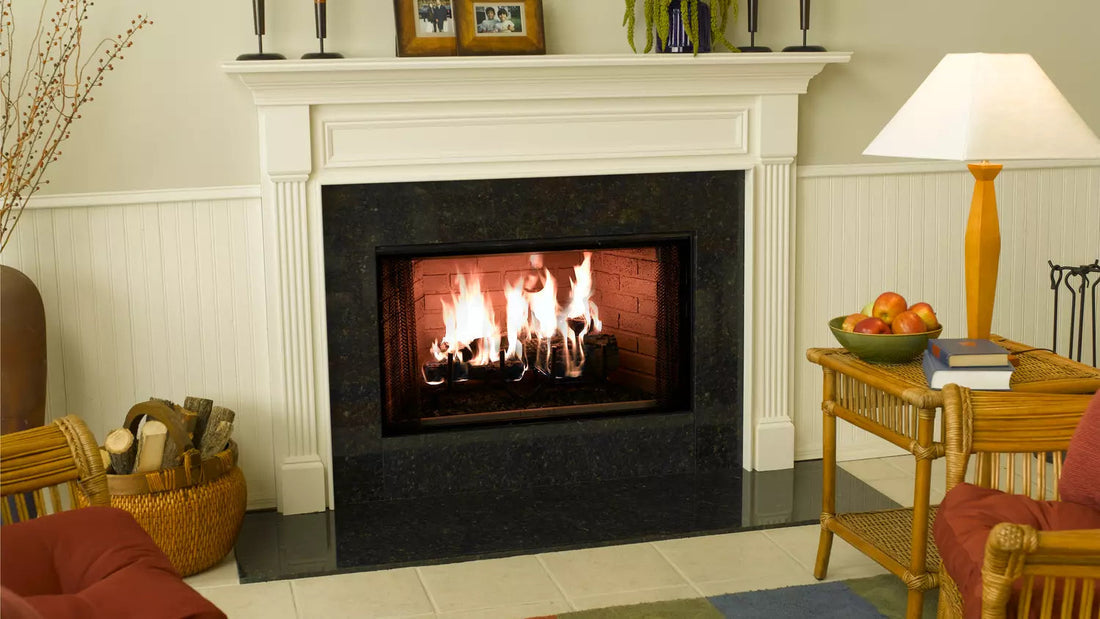

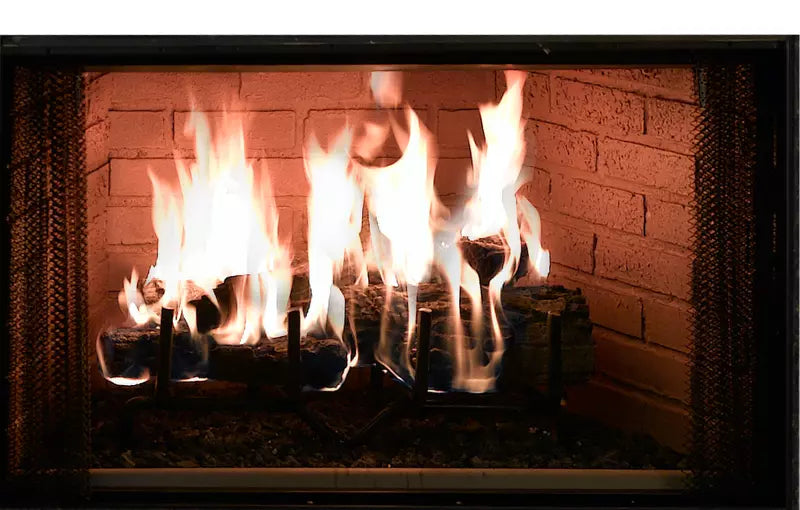

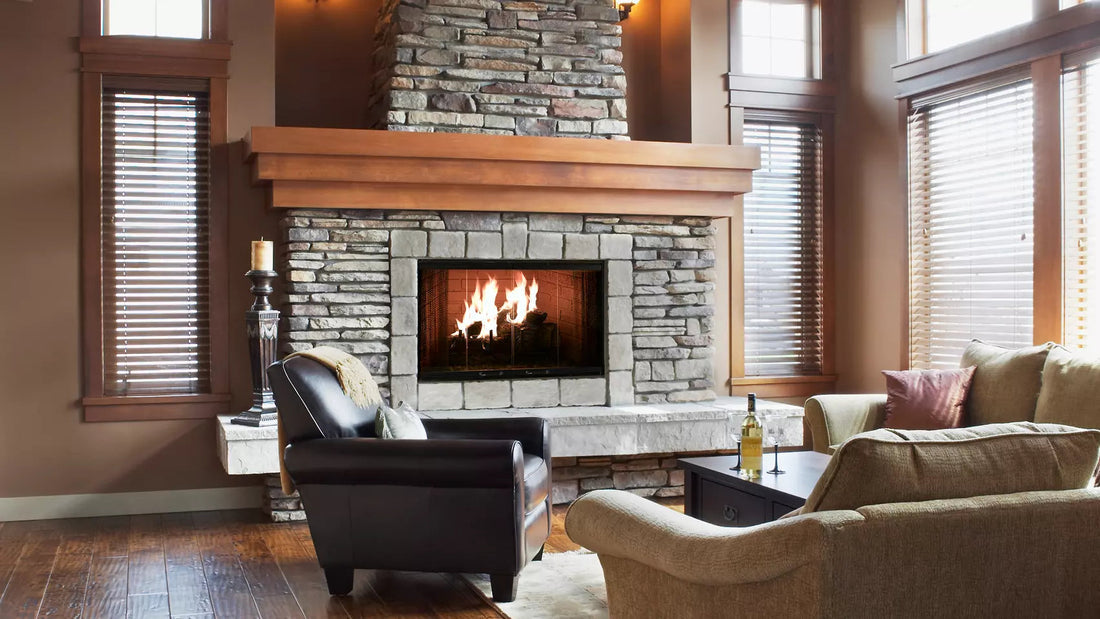

The Element helps you get the most out of a roaring wood fire with its luxuriously large viewing area and virtually invisible smoke shield. A richly-colored, textured interior creates the look of traditional masonry. The user-friendly damper and Heatilator warranty combine to make the Element the best value in its class!
What's Included
- Fireplace Unit, Radiant Heat
- Front Access Damper Handle
- Ash Lip
- Safety Firescreen
- Traditional Refractory Lining
- Dual Gas Knockouts
- Steel Grate
- Powder Coated Finish
- UL Listed
- Uninsulated Firebox
- Attic Insulation Shield
Not Included
- Glass Bi-Fold Doors
- Log Set/Hearth Kit
- Outside Air Kit
- Hearth Extension
- Insulated/Uninsulated Flex Duct
- Chimney Air Kit
Features
- Easy-to-Operate Damper - Keeps operation clean and easy with a damper that is simple to locate and adjust.
- Convenient Ash Lip - Prevents ash from falling out of the hearth, keeping your floor clean and safe.
- Invisible Smoke Shield - Makes staying comfortable even easier by ensuring that smoke goes up and out the chimney.
- Traditional - Creates an authentic masonry-type fireside experience with classic brick interior panels in a traditional look.
Specifications
| Item Number | EL36 |
| Brand Name | Heatilator |
| Series | Element |
| Model | Element 36" Woodburning Fireplace |
| Fuel Type | Wood Burning |
| Viewing Area | 36" x 21" |
| BTU/hr Input | 100,000 |
Technical Specifications
| Actual (Unit) | Framing | |
| Front Width (A) | 41" (1041mm) |
42" (1066mm) |
| Back Width (B) | 23-3/4" (603mm) |
42" (1066mm) |
| Height (C) | 39-1/2" (1003mm) |
39-3/4" (1009mm) |
| Depth (D) | 21-3/8" (542mm) |
21-1/2" (546mm) |
| Fireplace Opening (E x F) | 36" x 21" (914mm x 533mm) |
Documents & Files
- Element Series - Product Brochure
- Installation Manual
- Installation Manual (Pre Aug 2013)
- Owner's Manual
- Service Parts
- Architect Guide
- Revit BIM
- Fireside Realwood FRW124 Instructions
- Matchlight Hearth Kits Instructions
- CAK4A Chimney Air Kit Instructions
- Round Termination Top Vent Kit Instructions
- Field Fix Kit for Outside Air (Element, RH) - 4044-176 Instructions
