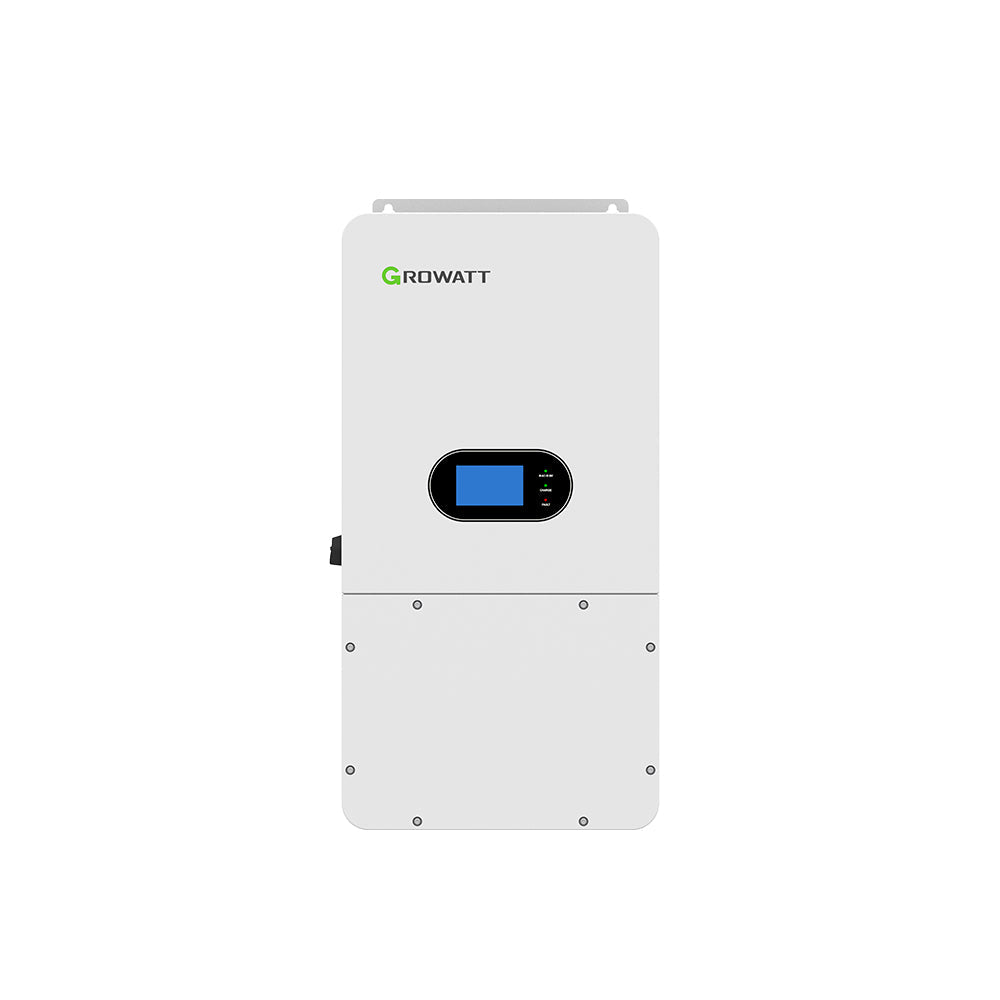

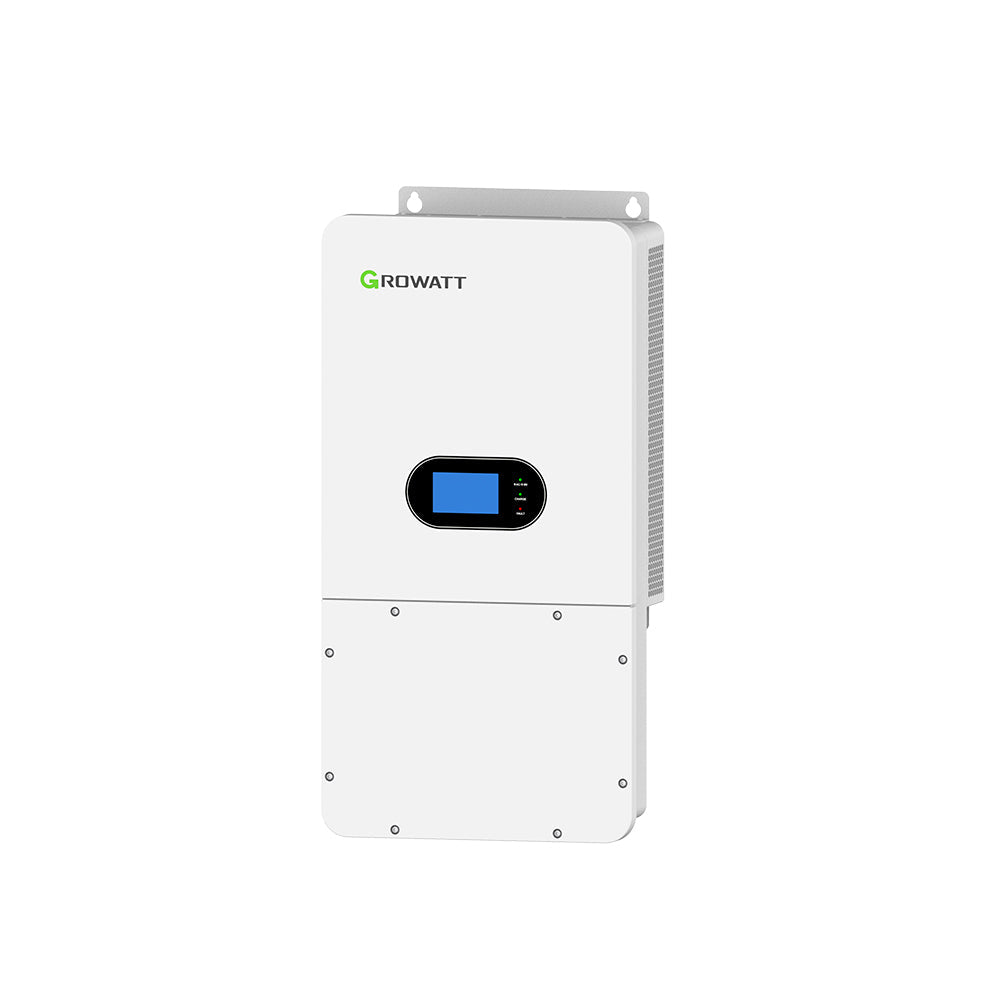

Growatt SPH 10.0kW 48V Hybrid Inverter | SPH 10000TL-HU-US ( B) | 15kW PV Input | 10kW Output | 120V/240V Split-Phase | Breaker Built-in | Compatible with Multi Batteries | 10-Year Warranty
Growatt SPH 10.0kW 48V Hybrid Inverter | SPH 10000TL-HU-US ( B) | 15kW PV Input | 10kW Output | 120V/240V Split-Phase | Breaker Built-in | Compatible with Multi Batteries | 10-Year Warranty is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Price Match Guarantee
Price Match Guarantee
We work very hard to ensure that we offer the absolute best prices online. If you find another online store that offers a lower price than us, let us know and we beat the price hands down. We want you to feel confident that you are getting the absolute best price for the product you are ordering.
Our 100% Price Match Guarantee has the following restrictions:
Promotions such as rebates and buy one, get one free offers are not eligible
The website can not be a discounter or auction website (ie; eBay, etc..)
The competitor must be an Authorized Retailer of the item you have purchased
The Price Match Guarantee includes will be calculated based on item price, sales tax, shipping charges
Price Matches Do Not Apply For Exchange Orders, or replacements
Please Note: Some Exclusions May Apply
Delivery and Shipping
Delivery and Shipping
Your order processing time is 1 to 2 days. Please note that the cut-off time for order placement is 6 p.m. Orders received after this time will be processed on the following business day.
Your order will arrive within 4 to 7 days on average (free shipping over $200). Shipping for orders under $200 incurs a flat fee of $15. We currently offer shipping only within the continental United States (island deliveries may incur additional costs); international shipping is not available.
Mostly all of our orders are shipped via one of our third-party freight carriers (18-wheeler). If your order has an item that is shipped on a freight carrier, you will be contacted to schedule a curbside delivery time. Please make sure to put the correct phone number at checkout.
Upon placing your order, you will receive a confirmation e-mail. This message will confirm your order has been received by our system, and your credit card was approved for purchase. We will not charge your card until the item has shipped unless it's back ordered and we need to hold an item for you.
As soon as your order is received on our end, we process it!
Growatt SPH 10.0kW 48V Hybrid Inverter | SPH 10000TL-HU-US ( B) | 1...
• Authorized Online Dealer
• Free Shipping + No Sales Tax (exclusions may apply)
• We Beat The Lowest Price
• Fast 4-7 Day Delivery
• Manufacturer Warranty Included
• Questions? Call Our Experts: +1 (800) 484-0224
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
The Growatt SPH 10000TL-HU-US 48V 10kW hybrid inverter offers split phase output at 120/240Vac, allow maxmium 15000W PV input and It includes 3 built-in MPPTs and protection against overload, over temperature, and short circuits. Additionally,. It features configurable battery charging current and voltage, as well as AC/Solar/Generator charger priority settings via its touch screen. The SPH 10000TL-HU-US 10kW hybrid inverter can compatible with both grid voltage and generator power, it automatically restarts when AC power is lost. The inverter's smart battery charger is designed for optimal battery performance and supports WIFI/4G/Bluetooth monitoring. Additionally, it allows for programmable supply priority between battery and grid, and supports multiple operation modes: On Grid Mode, Self-consumption Mode, and Zero Export Limit.
Product Overview
| Manufacturer | Growatt |
| Type | Split-phase Hybrid Storage Inverter |
| Max PV Input | 15000W |
| Max Output | 10000W |
| Voltage Output | 120V/240V Split |
| MPP Trackers | 3 |
| Max Battery charge/discharge current | 200A |
| Built-in Breaker Spec | BAT side: 80V/250A, Grid side: 400V/100A, GEN side: 400V/63A, LOAD side: 400V/100A |
| Max Efficiency | 97.5% |
| Compatible Battery | Growatt AXE / ALP Battery / Acid Battery/ Third party brand battery with RS485 protocol |
| Electronics Protection Degree | IP65 ( NEMA 4 ) |
| Warranty | 10 years |
| Communications | CAN2.0, RS485, USB |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21 |
Key Features
Leading Functions
- UPS function, 10ms transition
- Scalable system available
- Up to 200A charging/discharging current
High Yields
- DC/AC ratio up to 1.5
- MPP trackers up to 3
- Max. efficiency 97.5%
System Compatibility
- Support DC-Coupled AC-Coupled System;
- Support diesel and gas generator
- Support Lithium battery and lead-acid battery

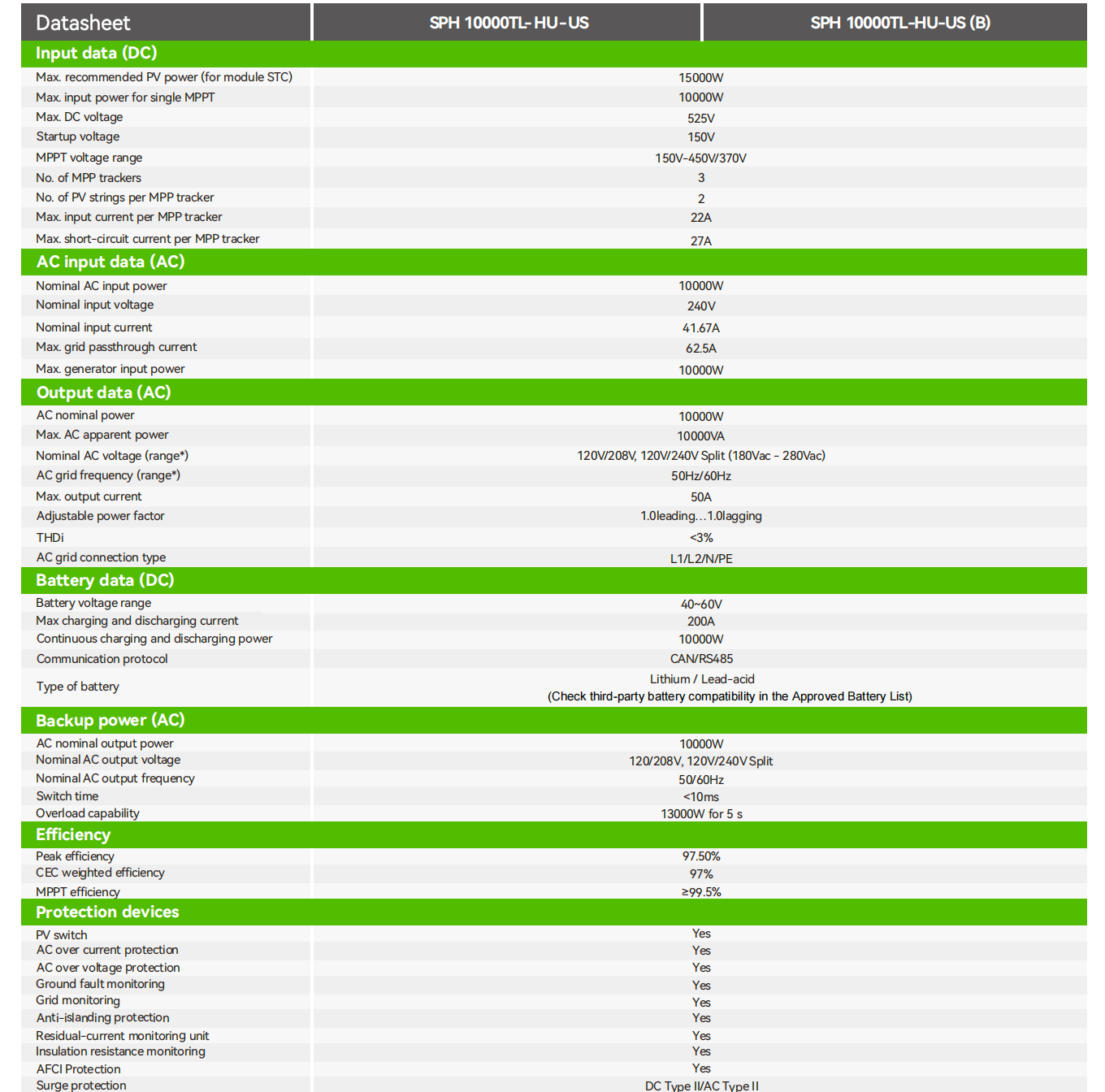

PV Input Data
Max.PV Power Input: 15000W
Max.DC Voltage: 525V
No. of MPPT: 3
No. of PV Strings per MPPT: 2
Max. input current per MPPT: 22A
Max. short-circuit current per MPPT: 27A
Output Data
AC nominal power: 10000W
Nominal AC Voltage output: 120V/240V Split ( 180Vac - 280Vac )
Max. output current: 50A
Battery Data
Battery voltage range: 40~60V
Max charging and discharging current: 200A
Continuous power: 10000W
Type of battery: Lithium / Lead-acid
General data
Advanced Protection & Safety
- UL certificated( UL1741 ), CA Rule21
- PV switch integrated
- AC over current/voltage protection
- Ground fault monitoring
- Grid monitoring
- Anti-islanding protection
- Residual-current monitoring unit
- Insulation resistance monitoring
- AFCI protection
- Surge protection

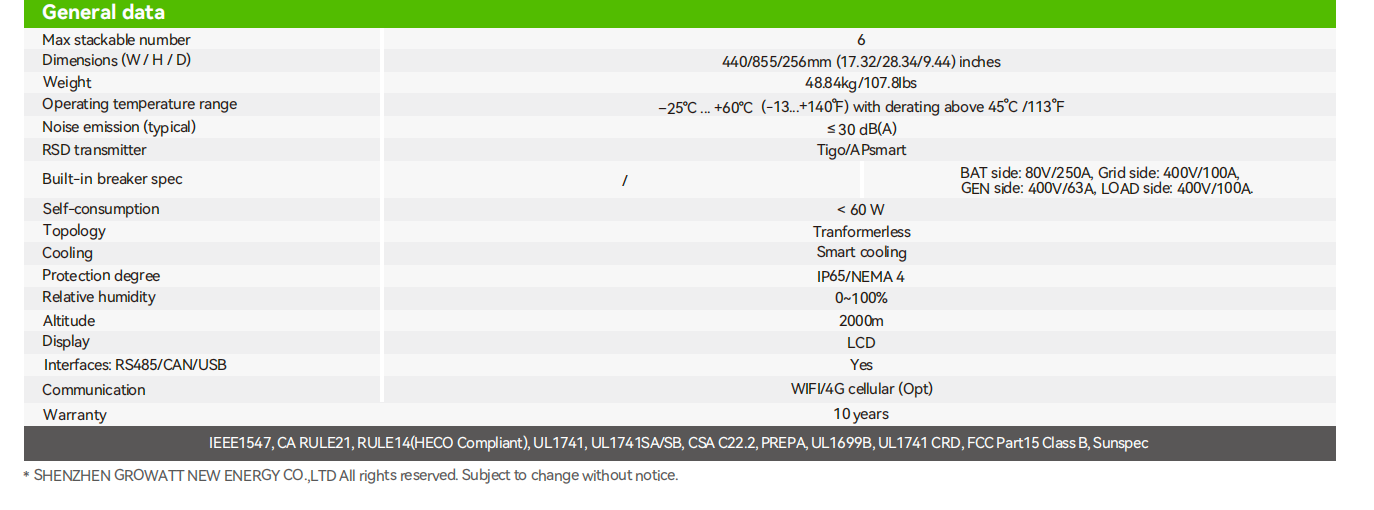

General data
Dimensions( W/H/D ):17.32* 28.34* 9.44 inches ( 440*855*256mm )
Weight: 48.84kg / 107.8lbs
Protection degree: IP65/NEMA 4
Display: LCD
Communication: Wifi / 4G
Warranty: 10 Years
Freight
This inverter gross weighs 120lb for shipping and big size, we ship it via freight truck. SHIPPING FREE for purchase 2 pieces a time
Download
Datasheet
SPH_10000TL-HU-US (B)_Datasheet_EN_202411.pdf
User Manual & Installation Quick Guide
SPH_10000TL-HU-US(B)_User_Manual_EN_202410.pdf
SPH_10000TL-HU-US_B__Quick_Guide_20240923.pdf
Certification
SPH 10K ALP Battery UL9540
SPH_10000TL-HU-US_IEEE1547_UL1741_CSAC22.2_HECO_IEEE1741SB.pdf
SPH_10000TL-HU-US_FCC_Part_15C.pdf
SPH_10000TL-HU-US_CE_EMC.pdf
SPH_10000TL-HU-US_CE_LVD.pdf
Warranty
Growatt_Warranty_Letter_For_North_America
