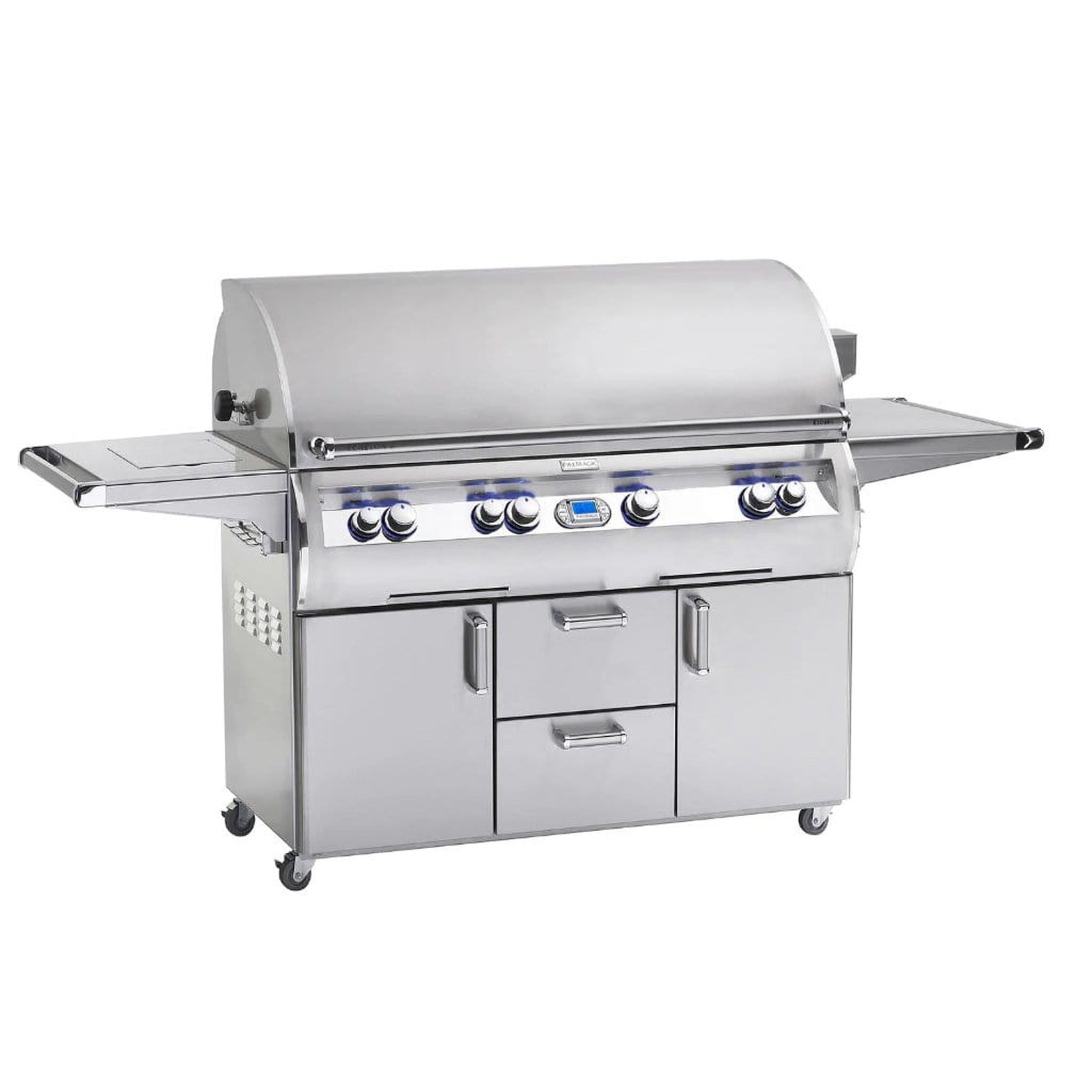

Fire Magic 48" 4-Burner Echelon Diamond E1060s Gas Grill w/ Single Side Burner, Rotisserie & Digital Thermometer

Fire Magic 48" 4-Burner Echelon Diamond E1060s Gas Grill

When you choose Fire Magic, you're investing in the finest grill available—backed by the industry's best warranty and unmatched customer support. Built to perform for a lifetime, Fire Magic grills are an investment that pays off year after year, bringing superior grilling experiences to your outdoor kitchen.

Unmatched Durability, Performance & Versatility – Proudly Crafted in the USA

Fire Magic Grills are crafted by skilled artisans who are passionate about perfection. Every product is made with precision using heavy-gauge, appliance-grade stainless steel to ensure longevity and durability. With over 75 years of innovation, Fire Magic sets the gold standard in grilling performance, offering unparalleled heat distribution, high temperatures, and exceptional cooking versatility.

Fire Magic Echelon Diamond E1060s

When only the best will do, the Fire Magic Echelon Diamond E1060s delivers top-tier luxury, performance, and innovation. Designed with sleek lines, a contoured face, and advanced features like hot surface ignition, blue backlit knobs, and an optional Magic View Window, this grill redefines high-end outdoor cooking.

Key Features

Hot Surface Ignition System

• The most advanced and reliable ignition system available.

• Simply push the control knob, turn on the gas, and ignite your grill.

• Requires 110V electricity.

Diamond Sear Cooking Grids

• Patented flat-top bars ensure optimal heat transfer for even cooking.

• Each bar measures over .35” wide, covering more than half the cooking surface.

• Made from all 304 stainless steel with a non-stick matte finish.

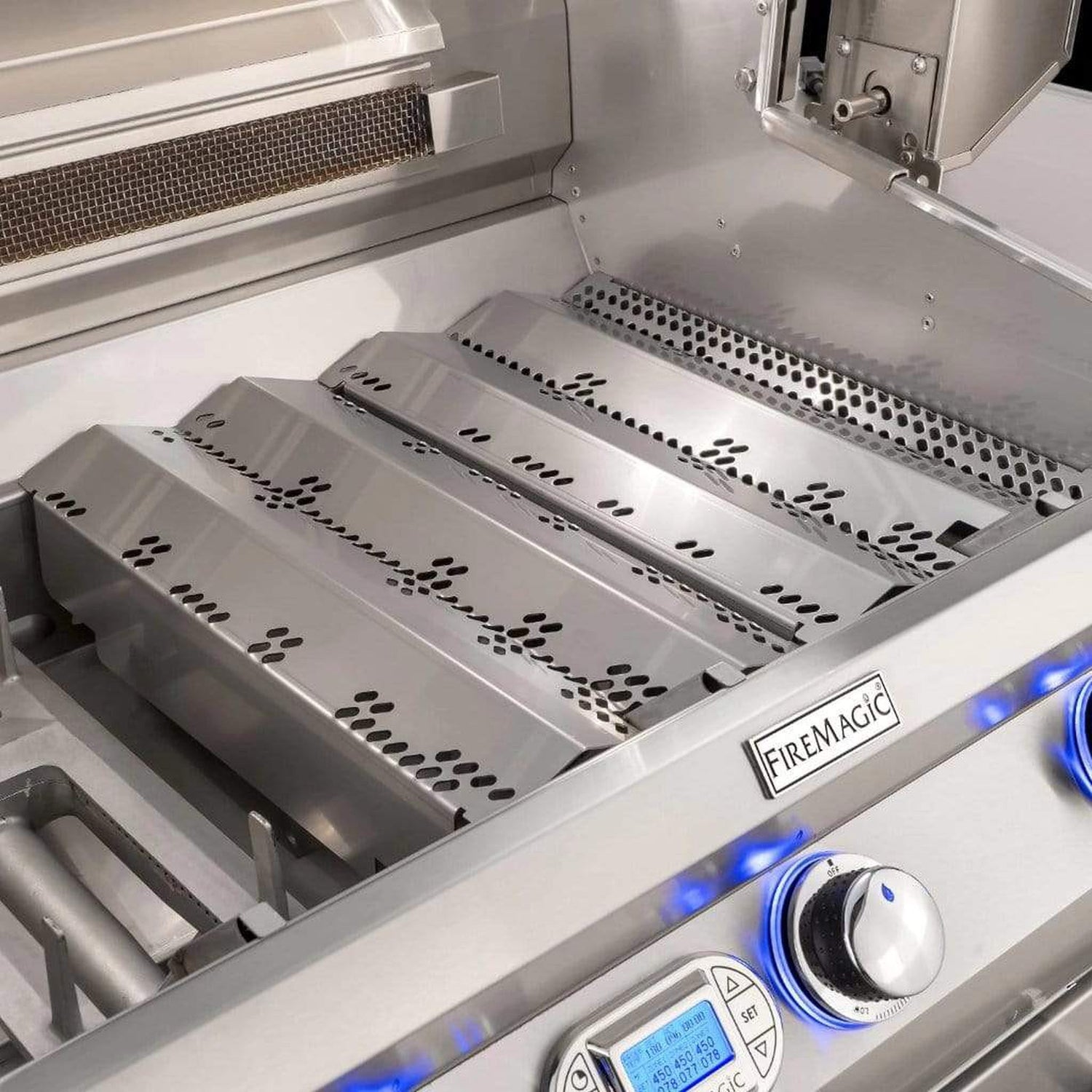

Cast Stainless Steel Burners

• ¼” thick cast 304 stainless steel burners with a lifetime warranty.

• Each burner weighs up to 12 lbs and delivers up to 31,000 BTUs.

• Protective lip prevents clogging from grease.

Charcoal Smoker Basket

• Allows you to grill with charcoal or smoke with soaked wood chips.

• Stainless steel basket ignites easily on top of the burner.

• Ash catch design for effortless cleanup.

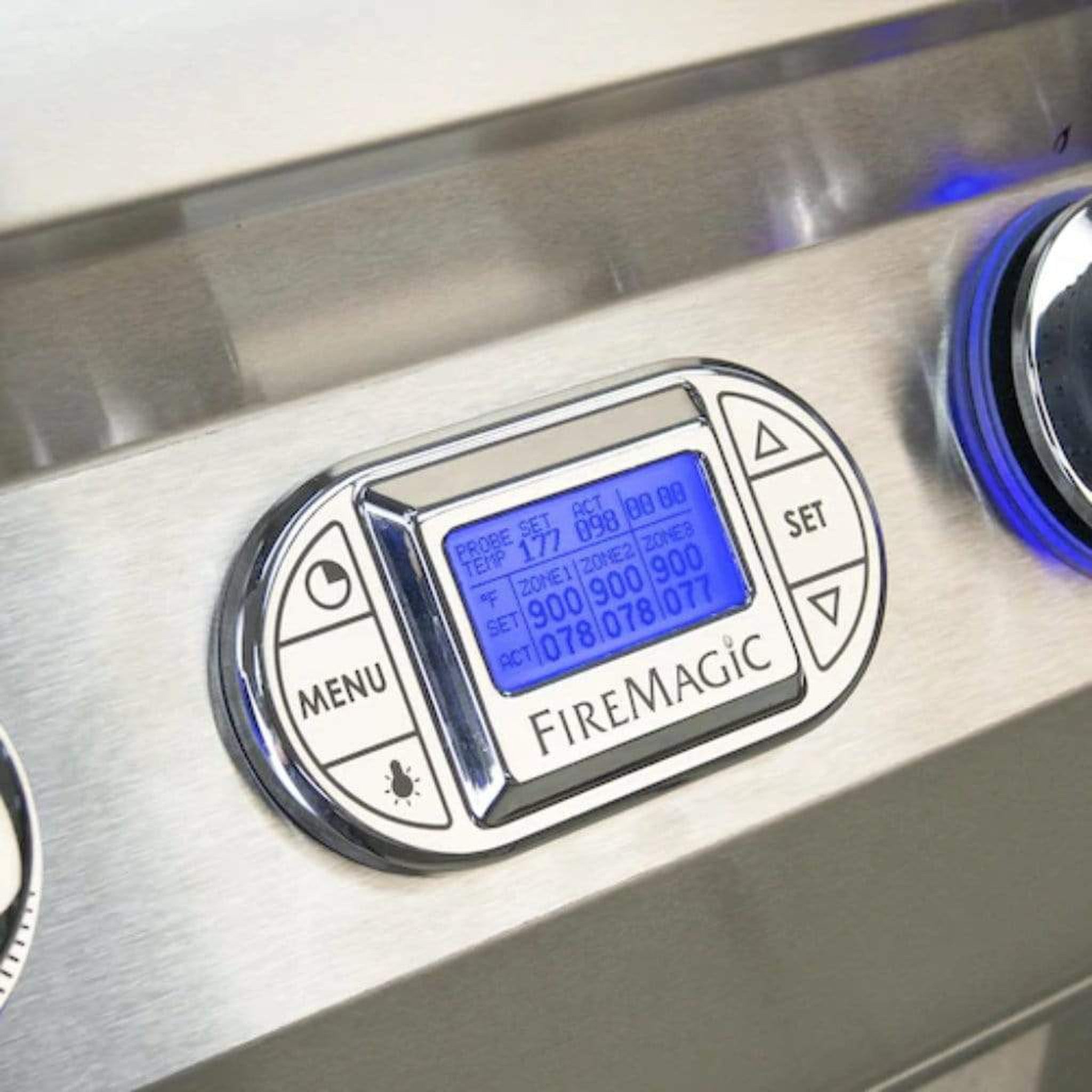

Chrome Digital Thermometer with Meat Probe

• Advanced digital display for precision cooking.

• Control zones independently or operate at one temperature.

• Built-in oven light switch and customizable backlighting.

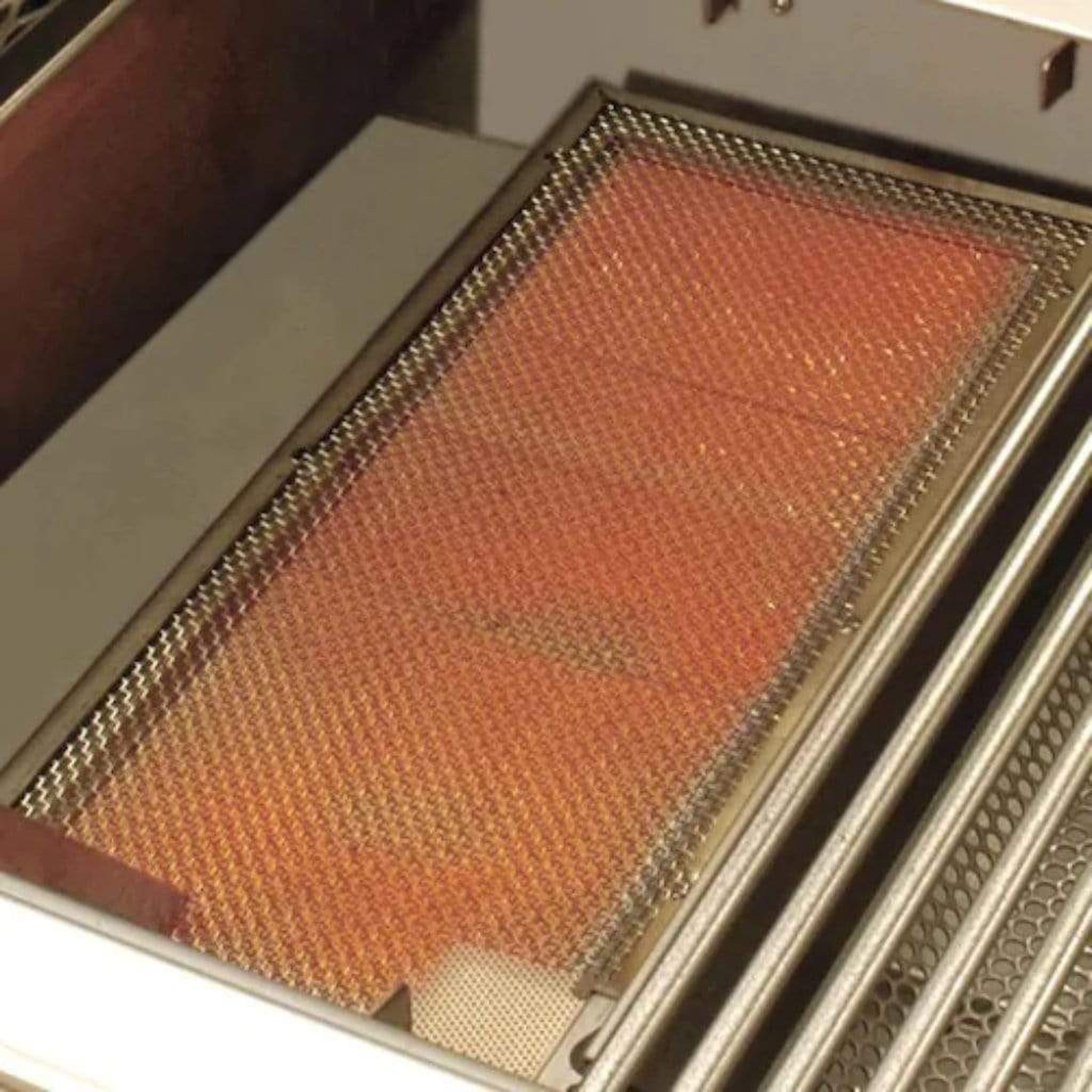

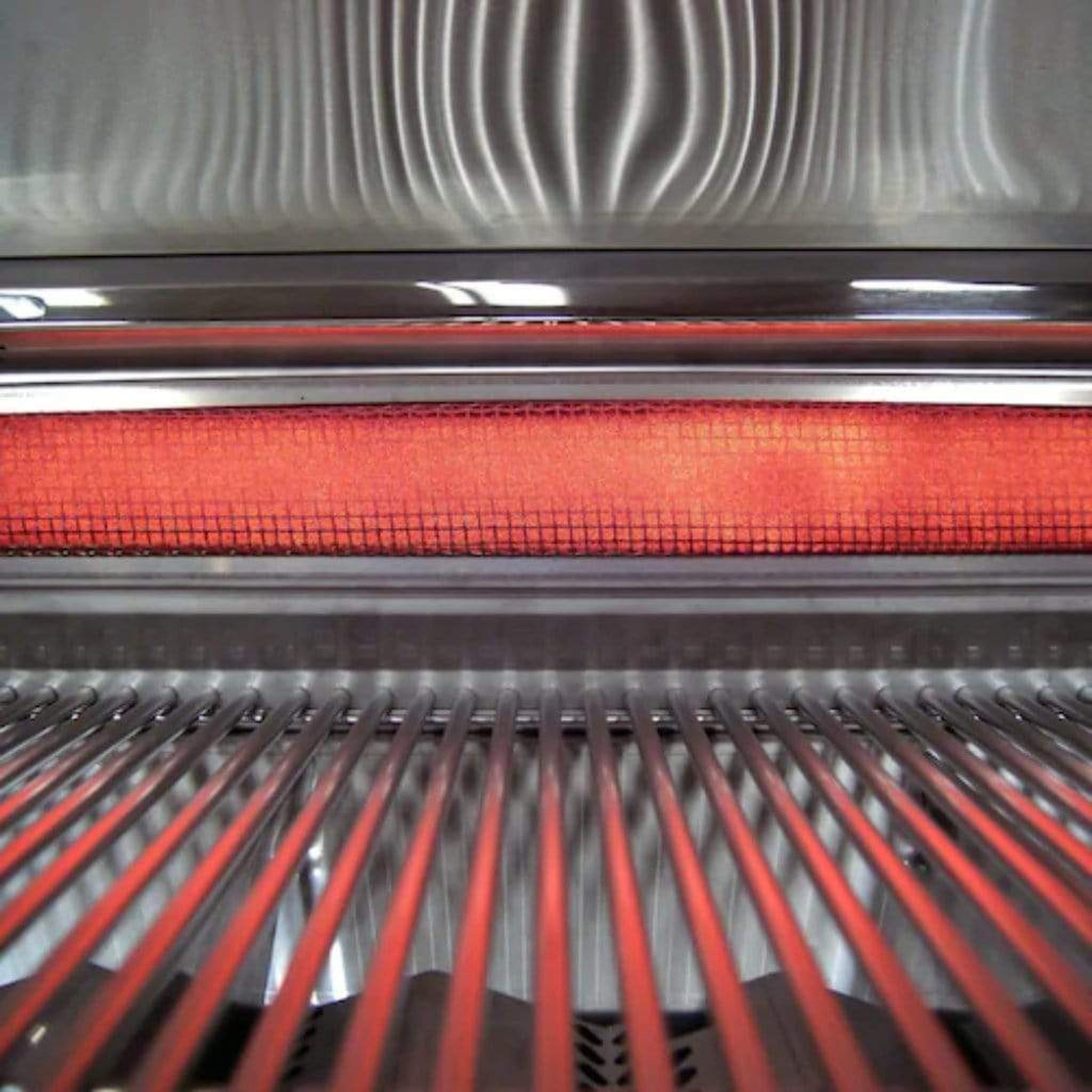

Recessed Infrared Backburner

• Stainless steel mesh-encased ceramic system for higher BTU output.

• Faster and more efficient rotisserie grilling.

• Includes stainless steel cover for protection.

Angled Halogen Internal Lights

• 12V halogen bulbs angled for nighttime grilling.

• No screws and easily removable lens for quick cleaning.

90° Double-Walled Hood

• Made from 304 stainless steel for superior heat retention.

• Opens to 90° for easy access and efficient exhaust.

• Teflon-coated spring assist ensures smooth operation.

Additional Features

• Available in 30", 36", and 48" models.

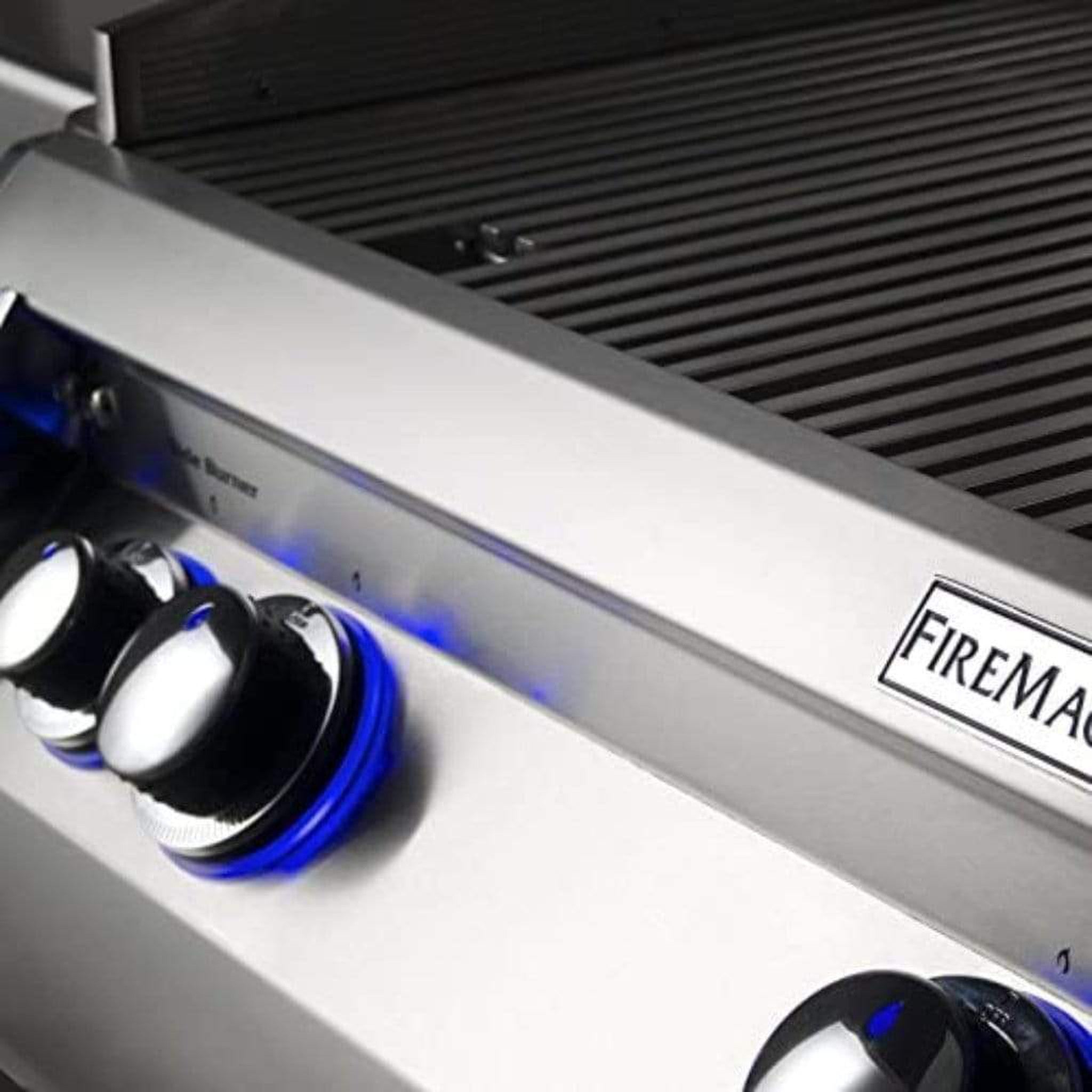

• Contoured control panel with LED backlit comfort-touch knobs.

• Digital thermometer with food probe.

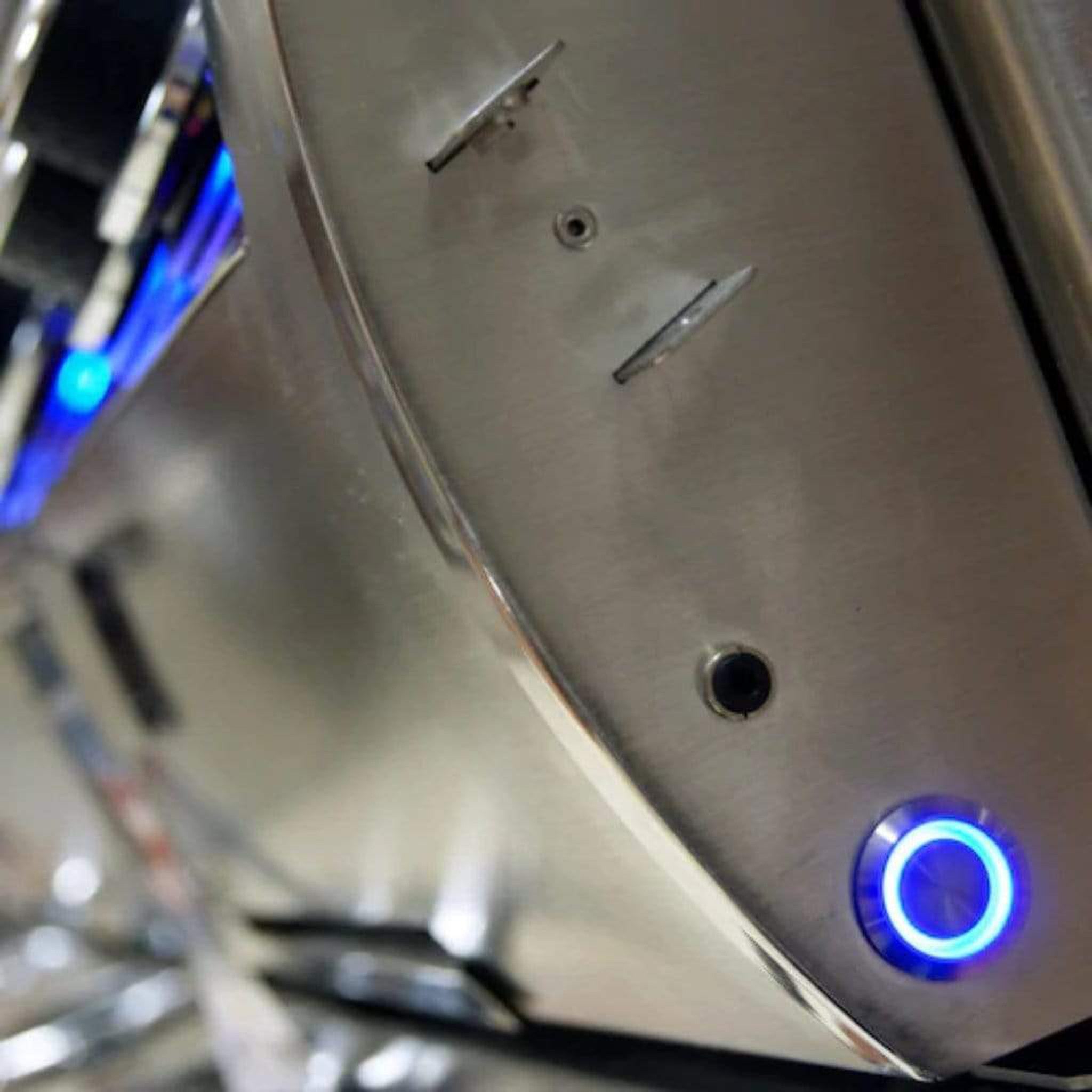

• Master power switch and larger drip tray with ball-bearing glides.

• Stainless steel cart with four locking casters.

• Dual storage doors and drawers.

• Two fold-down solid shelves with towel bars.

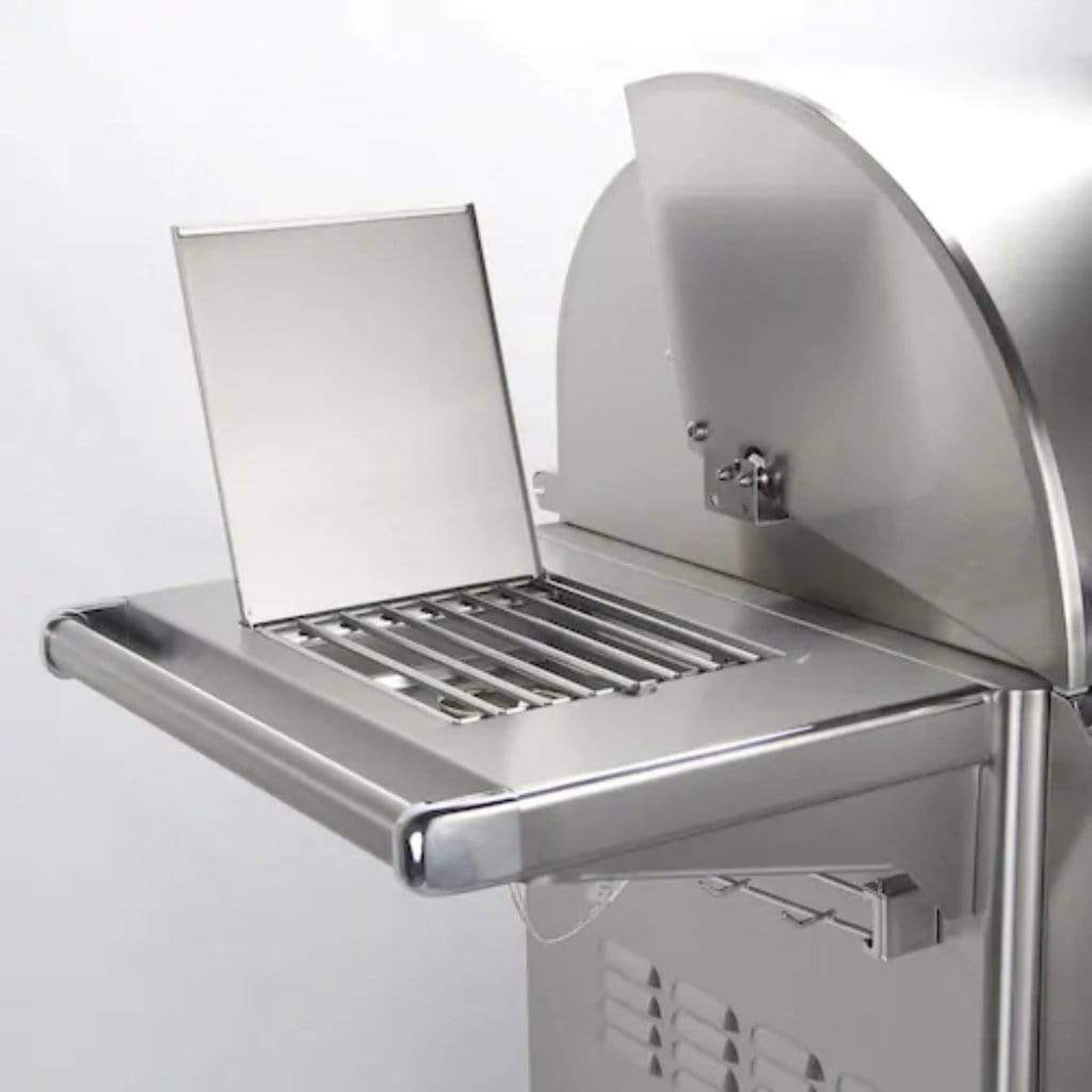

• Flush-mounted single side burner.

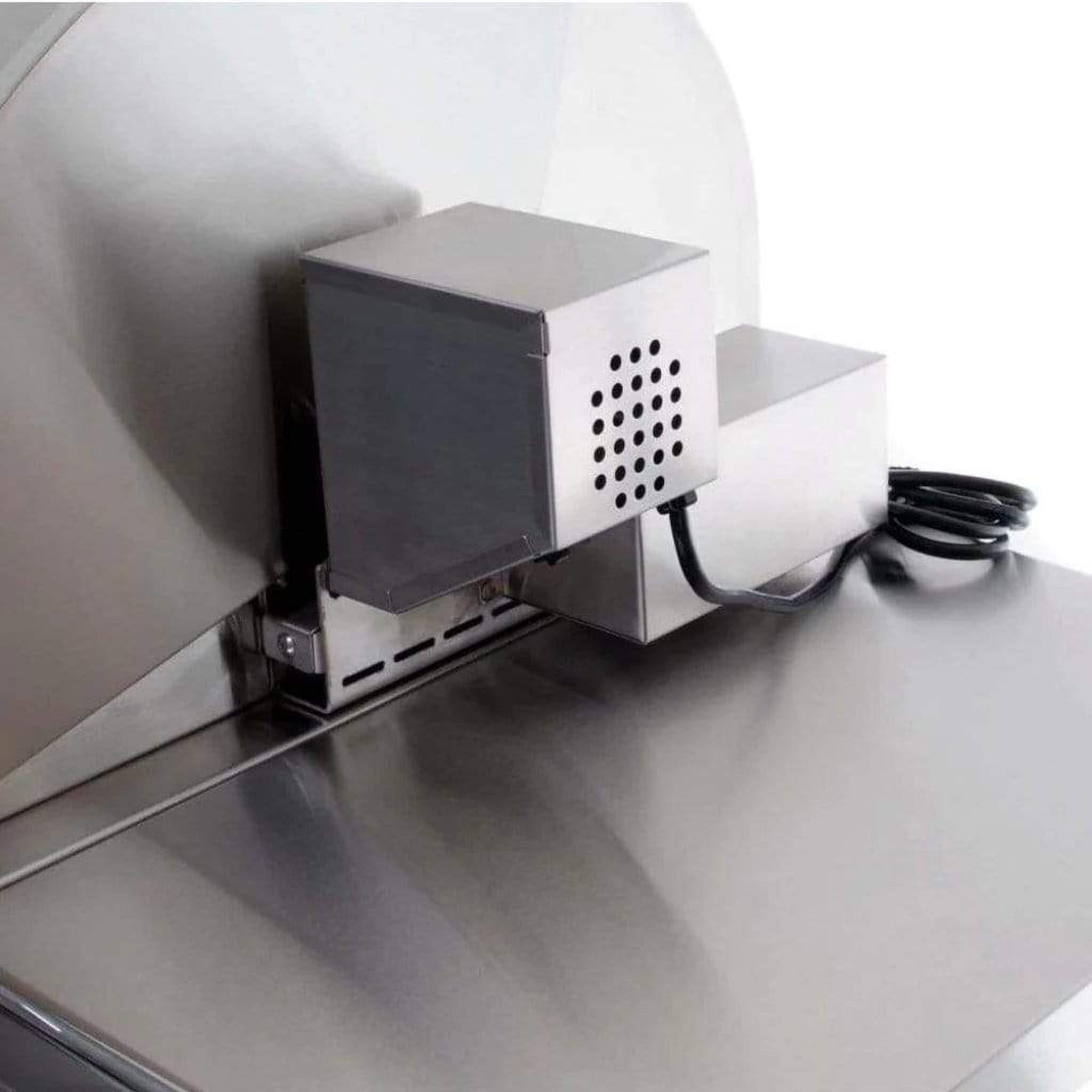

• Rotisserie kit included.

Specifications

• Model Number: E1060s (-62)

• Number of Burners: 4 Cast Stainless Steel "E" Burners

• Cooking Area: 48″ x 22″ (1,056 sq. in.)

• Warming Rack: 48″ x 8″ (384 sq. in.)

• Grilling Area BTU: 112,000

• Rotisserie Burner BTU: 22,000

• Side Burner BTU: 60,000

• Dimensions: 86.25" (W) x 29.75" (D) x 60.5" (H)

• Exterior Material: Stainless Steel

• Cooking Grate: Stainless Steel

• Ignition System: 120 VAC/12 Volt Hot Surface Ignition

• Weight: 660 lbs.

• Thermometer: Digital

Optional Upgrades

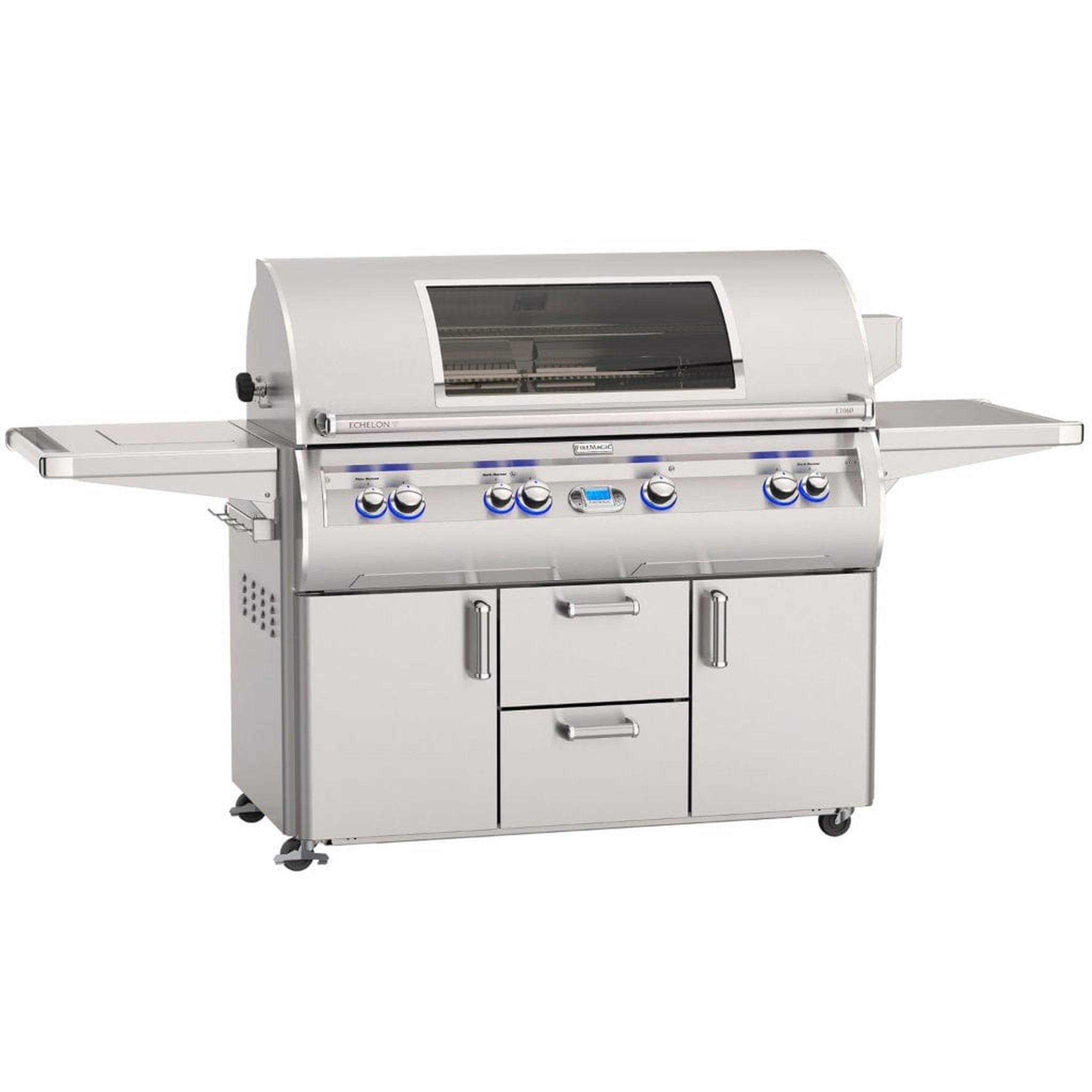

Magic View Window

• Monitor your food without lifting the hood and losing valuable heat.

Infrared Burner (Left)

• Ideal for searing steaks or quick high-heat cooking.

Industry-Leading Warranty

• Lifetime Warranty: Cast stainless steel burners, stainless steel cooking grids, and stainless steel housing.

• 15-Year Warranty: Brass valves, inner liners, manifold assemblies, porcelain housings, and backburner assemblies.

• 5-Year Warranty: Flavor grids, infrared burners, and charcoal stainless steel grills.

• 3-Year Warranty: Side burners and other grill components (excluding ignition and electronic parts).

• 1-Year Warranty: Ignition systems (except batteries), electronic components (lights and thermometers), and grill accessories.

Downloads

• Owner's Manual
• Stainless Steel Care Guide

• Product Specifications

Safety Information: See CA Prop 65 Warning for more information.
