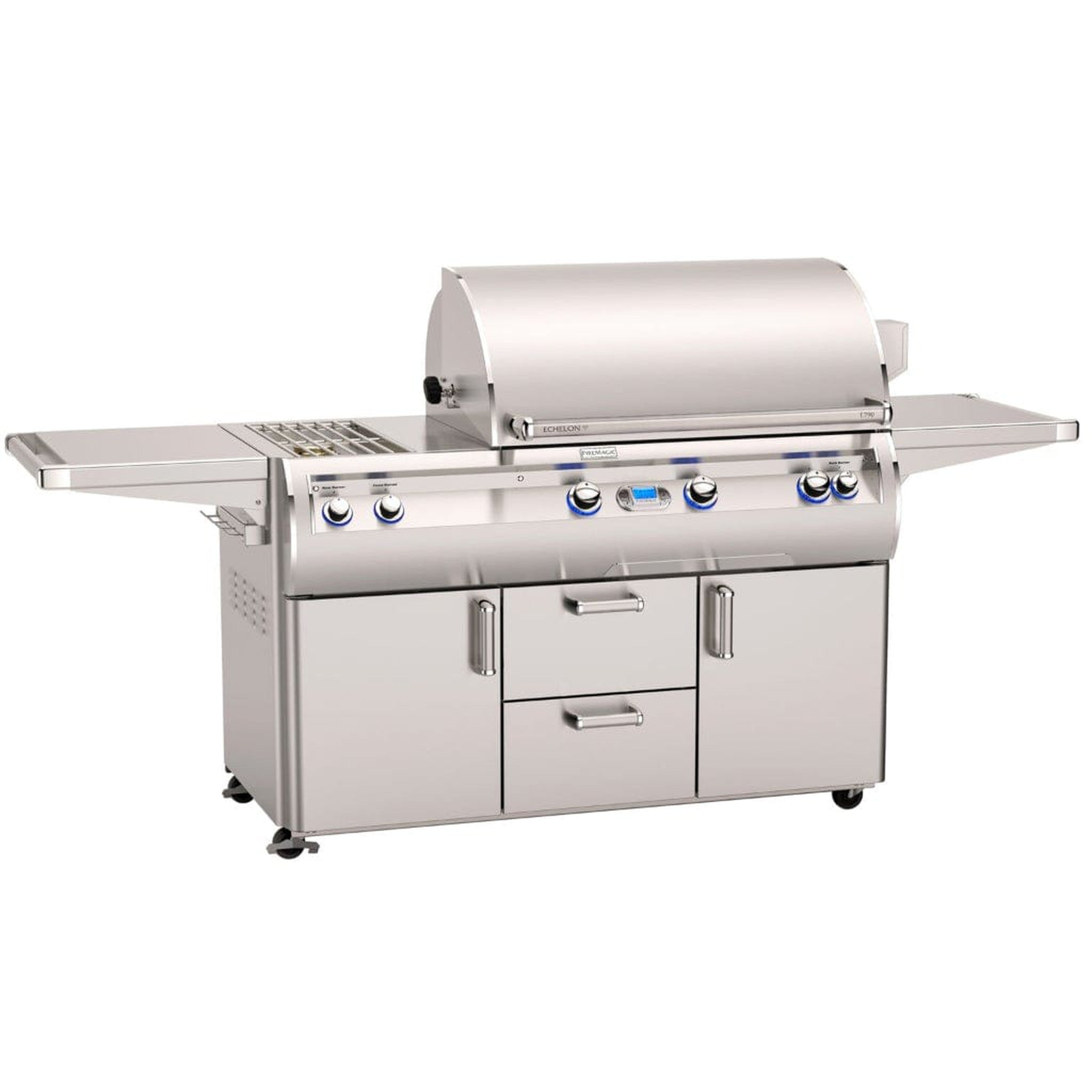

Fire Magic 36" 3-Burner Echelon Diamond E790s Gas Grill w/ Double Side Burner, Rotisserie & Digital Thermometer

The Fire Magic Difference

When you choose Fire Magic, you are purchasing the finest grill available, backed by the industry’s best and longest warranty – and the most dedicated, customer-focused people in the business. Our grills are an investment that pays dividends for years and years. They’re engineered and built to perform for a lifetime. So the pride and joy of owning your Fire Magic Grill will last you a lifetime.

A Heritage of Unmatched Durability, Performance, and Versatility – Proudly Crafted in the USA

Fire Magic Grills are made by people who demand the best, for people who demand the best. Each and every Fire Magic product is made with passion and care by highly skilled craftsmen. Outdoor grilling equipment is all we’ve ever made.

Our grills are constructed of the highest quality, heavy gauge, and appliance-grade stainless steel. With unsurpassed attention to the most precise detail in design and construction, Fire Magic Grills are the most elegant and the most durable barbecues available. They easily perform at the highest temperatures for the longest time of any outdoor barbecue grill. Unmatched performance and cooking versatility are yours when you own a Fire Magic Grill. Fire Magic’s superior technology and construction have set the standard for more than 75 years, and that’s still true today.

Echelon Diamond E790s

When only the best will do, our top-of-the-line Fire Magic Echelon Diamond grill combines the ultimate in performance, beauty, and innovation. With sleek lines, a unique contoured face, and state-of-the-art features such as hot surface ignition, blue backlit knobs, and an optional Magic View Window. Echelon Diamond defines luxury in grilling.

Grill Features

Diamond Sear Cooking Grids

• Patented design with smooth flat-top bars for even heat transfer.
• Heavy-duty cross rods for durability.
• Made from all 304 stainless steel with a bead-blasted, non-stick finish.

Cast Stainless Steel Burners

• Made of ¼” thick cast 304 stainless steel.
• Burners weigh up to 12 lbs and feature a lifetime warranty.
• Designed with a protective lip above the ports to prevent clogging from grease.
• Up to 31,000 BTUs per burner.

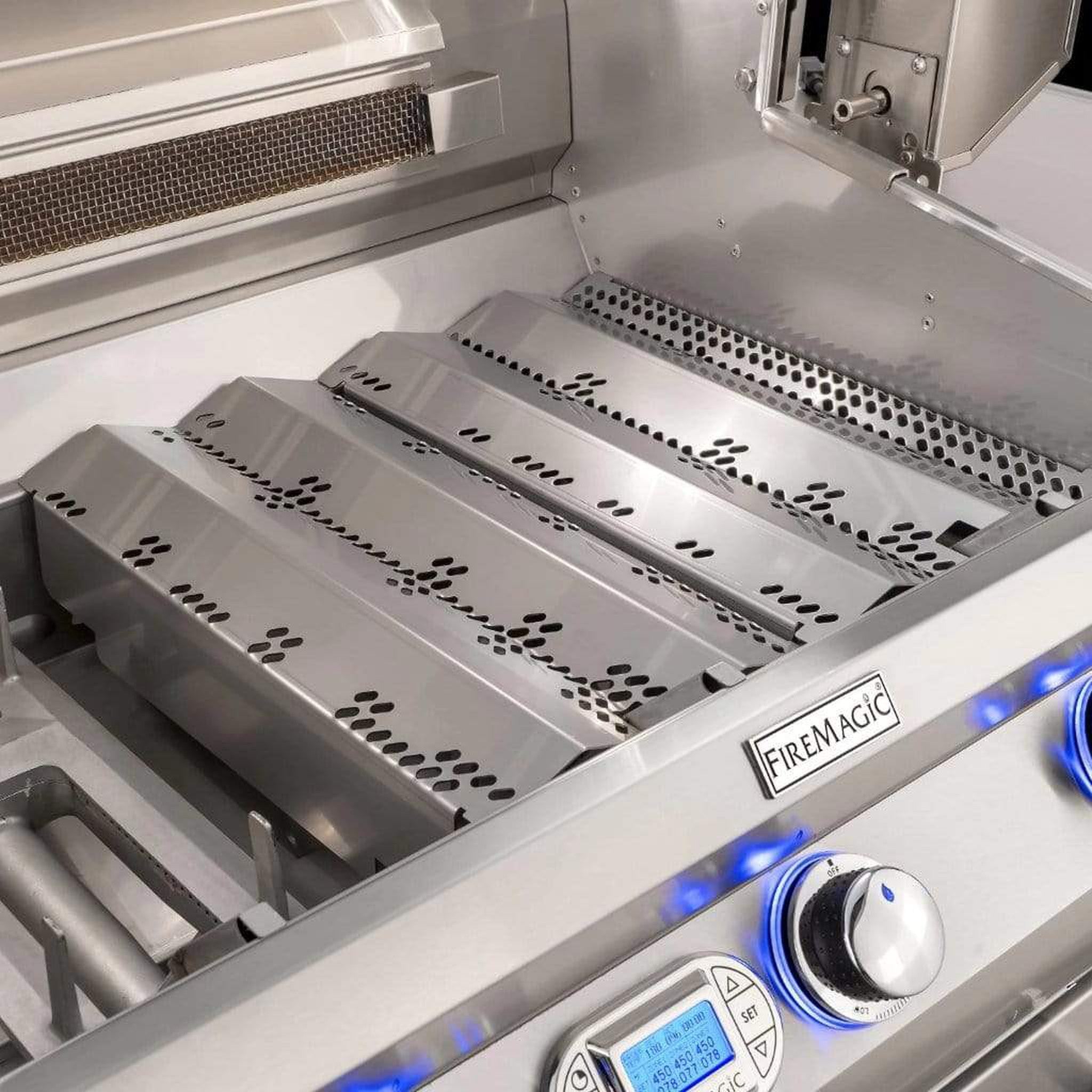

Flavor Grids

• Disperse heat evenly and minimize flare-ups.
• Simple to remove for easy maintenance.
• Made of 16-gauge 304 stainless steel with rounded corners for safety.

90-Degree Double Walled Hood

• Double-walled 304 stainless steel oven for efficient heat retention.
• Opens to 90 degrees for easy access.
• Teflon-coated spring assist ensures smooth operation.

Charcoal Smoker Basket

• Enhances flavor by allowing grilling with charcoal or wood chips.
• Stainless steel basket sits on top of the burner for easy ignition.
• Bottom ash catch for effortless cleanup.
• Includes a 14-gauge stainless steel smoker cover with an easy-lift design.

Echelon Drip Tray

• Built with ball bearings for easy glide.
• Perfect size for convenient handling.
• Compatible with Fire Magic drip tray liners for quick cleanup.

Additional Features

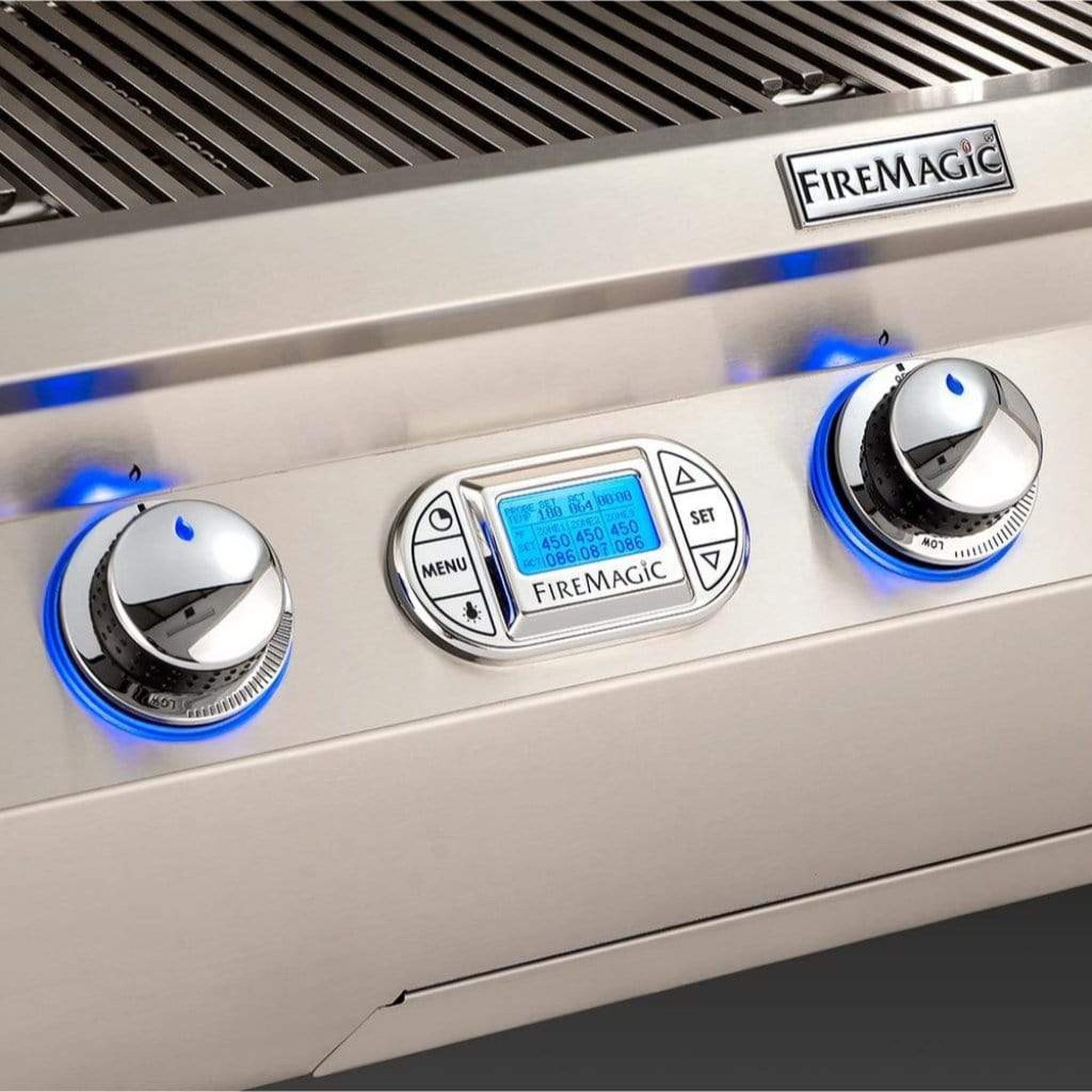

• Contoured control panel

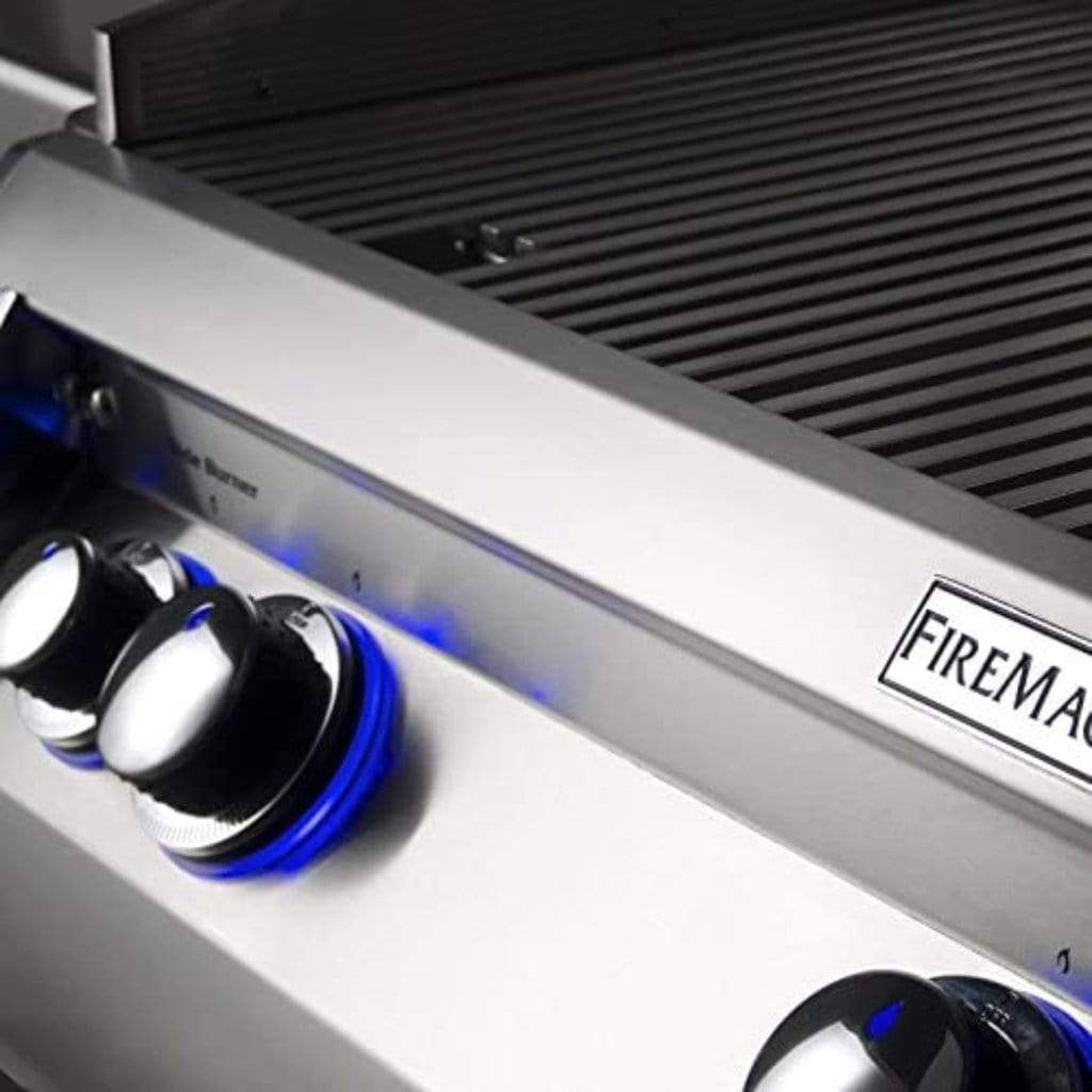

• LED backlit comfort touch knobs
• Digital thermometer with a food probe

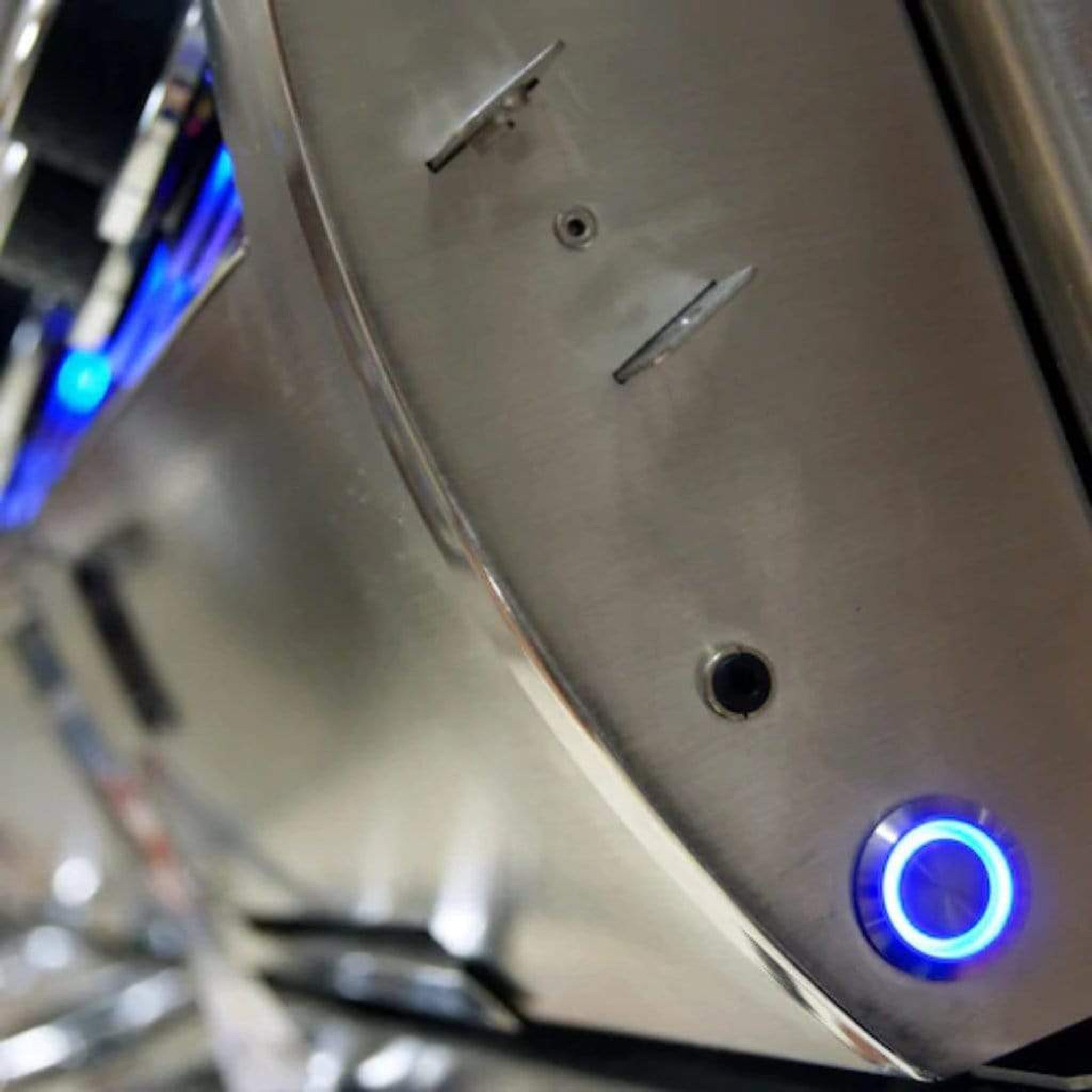

• Master power switch
• Larger drip tray with ball-bearing glides
• Pre-assembled on a stainless steel cart

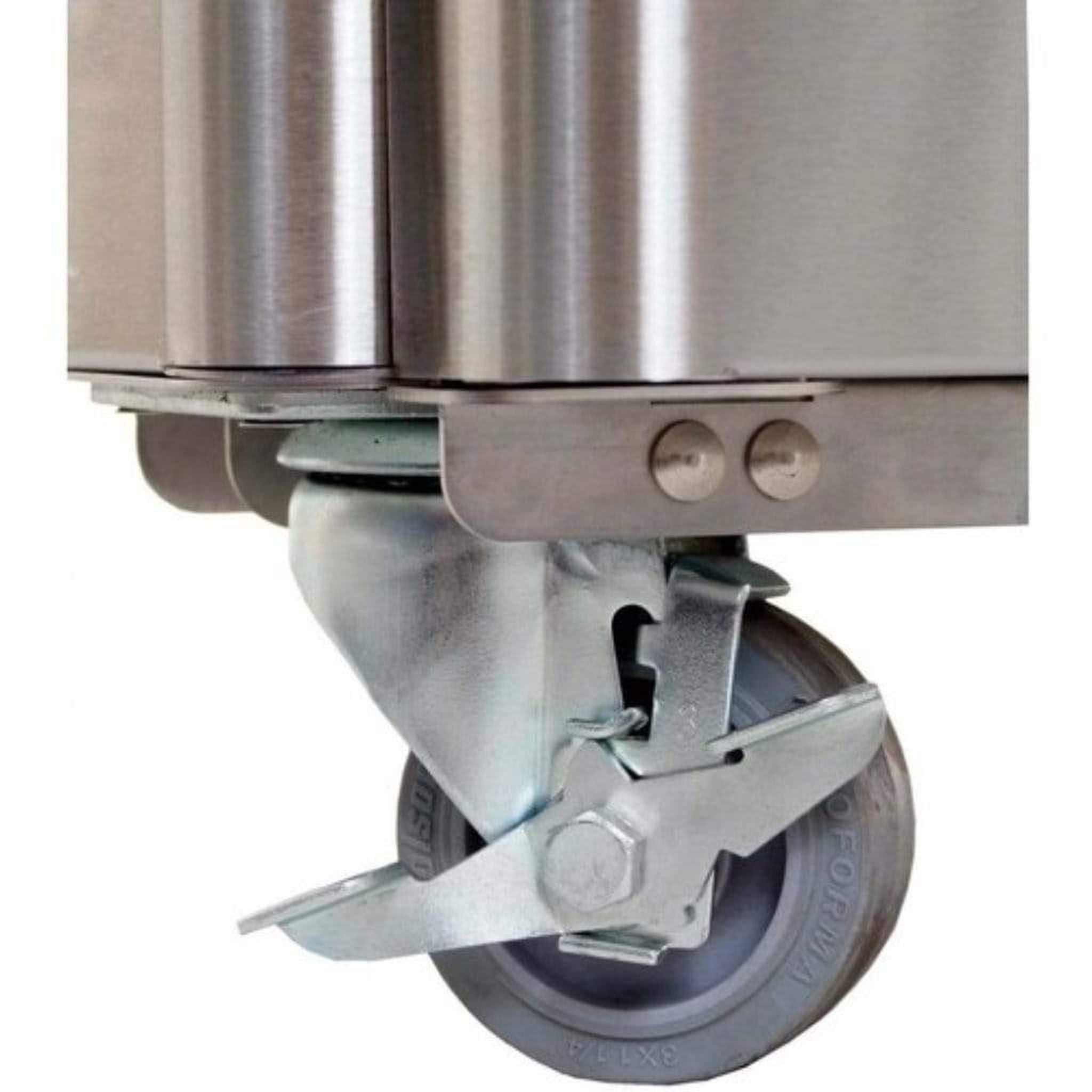

• Four locking casters
• Dual storage doors and dual storage drawers
• Two fold-down solid shelves with towel bars

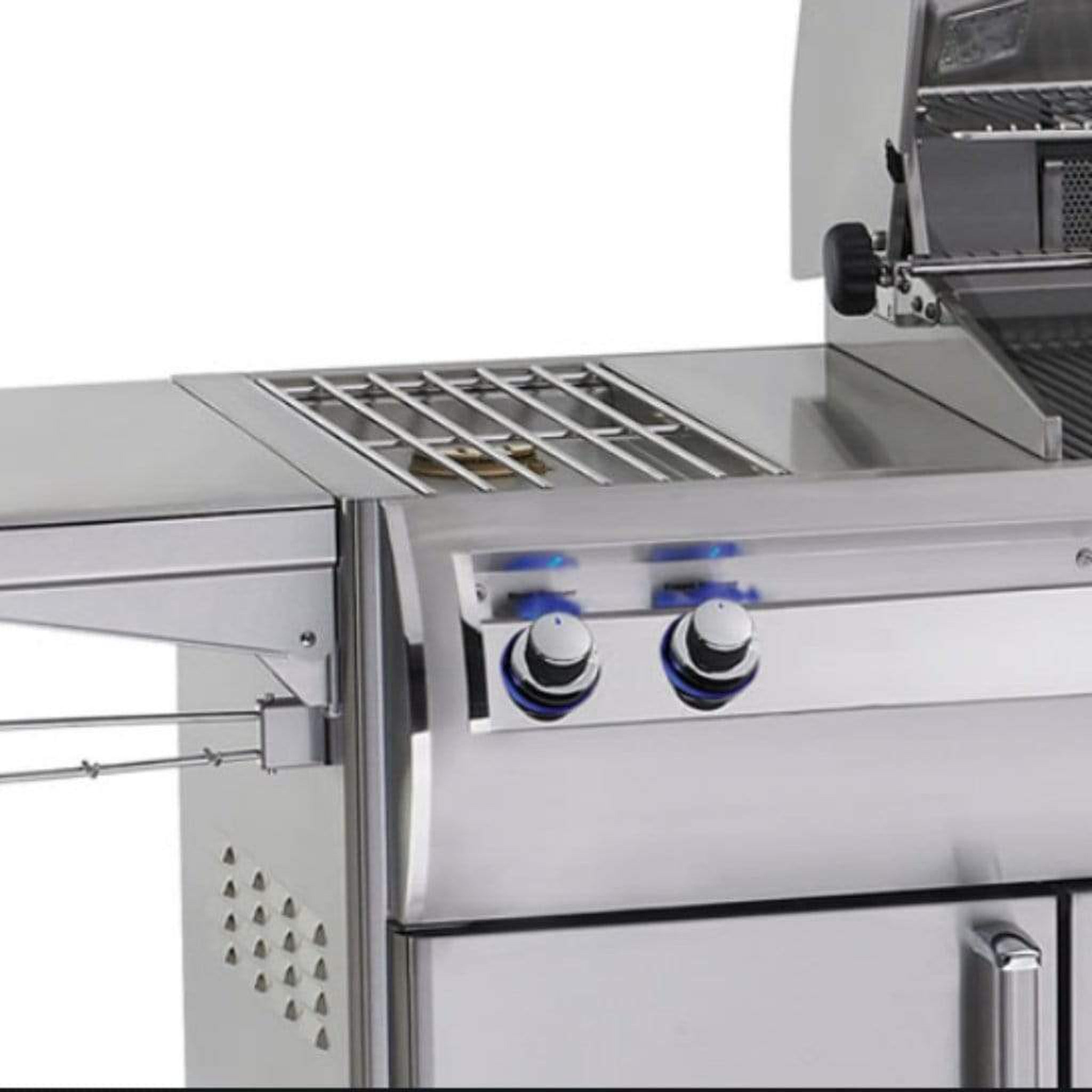

• Double side burner

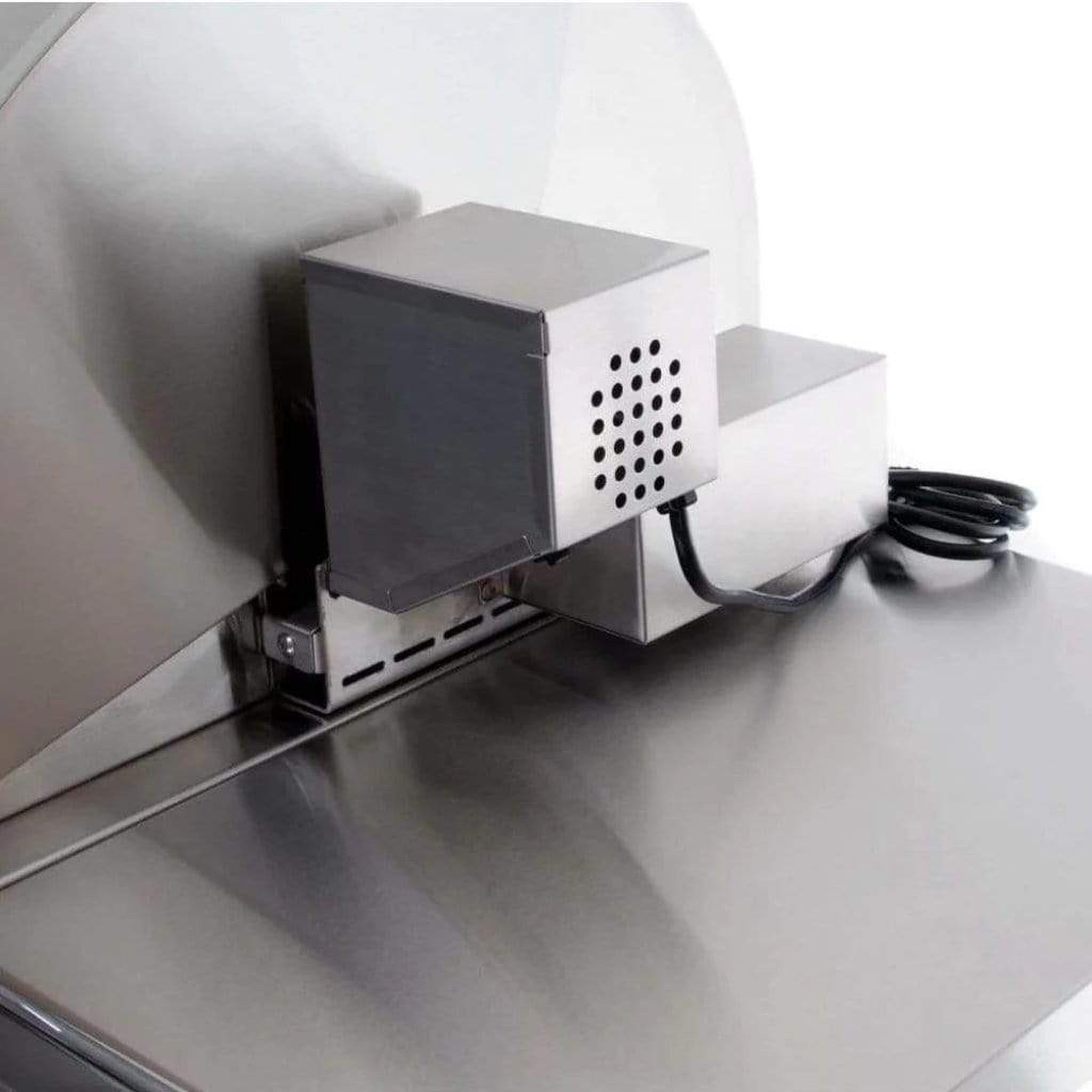

• Rotisserie kit included

Specifications

• Model Number: E790s (-71)
• No. of Burners: 3 Cast Stainless Steel "E" Burners
• Cooking Area: 36″ x 22″ (792 sq. in.)
• Warming Rack: 36″ x 8″ (288 sq. in.)
• Grilling Area BTU: 96,000
• Rotisserie Burner BTU: 13,000
• Side Burner BTU (2): 30,000
• Dimensions: 92" (W) x 29.75" (D) x 60.5" (H)
• Exterior Material: 304 Stainless Steel
• Cooking Grate: Stainless Steel
• Ignition: 120 VAC/12 Volt Hot Surface Ignition
• Weight: 550 lbs.
• Thermometer: Digital

Optional Upgrades

Magic View Window

• Available for all Fire Magic Echelon and Aurora Grills.
• Allows monitoring of grilled foods without lifting the hood and losing heat.

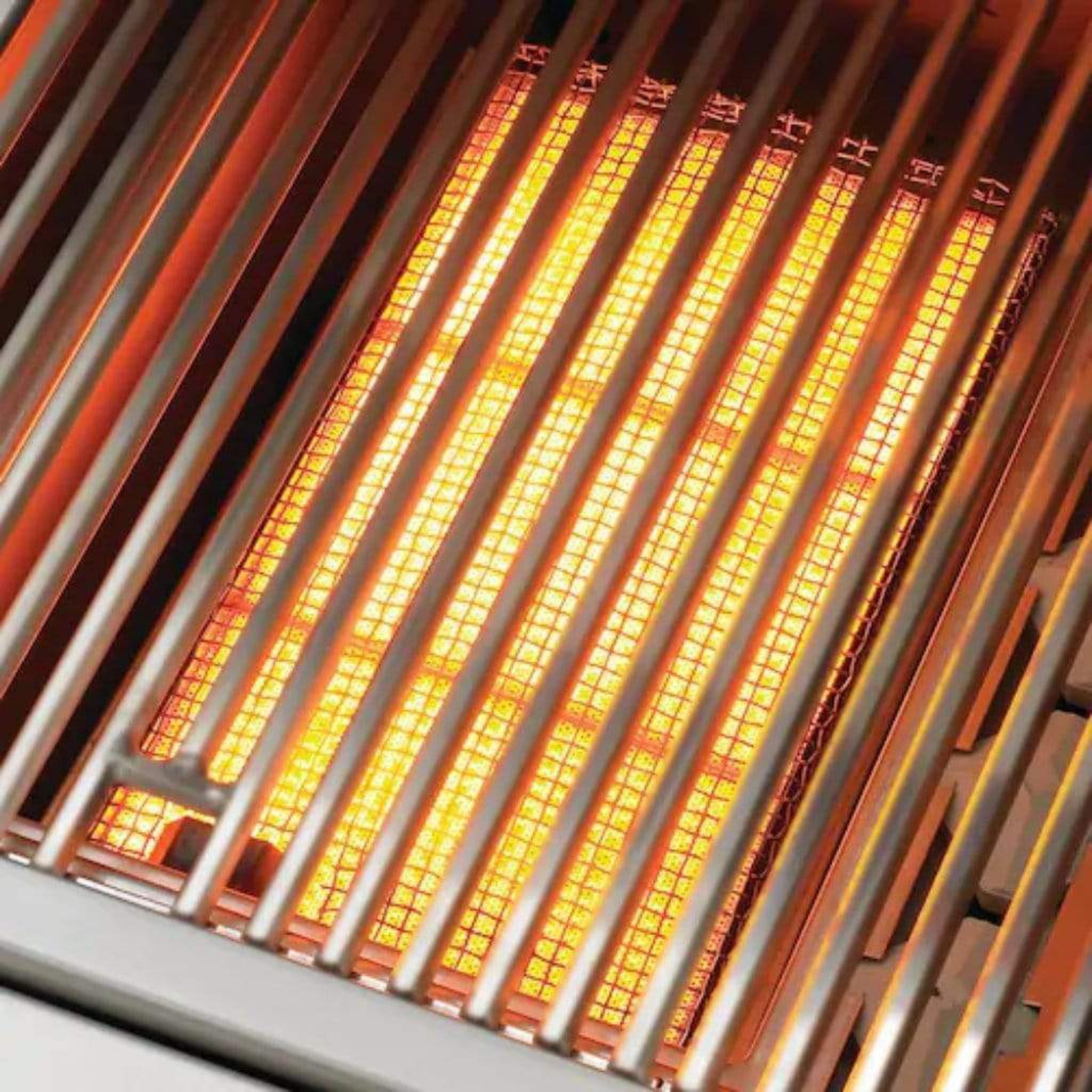

Infrared Burner (Left)

• Ideal for searing steaks or achieving high heat quickly.

Warranty

• Lifetime Warranty: Cast stainless steel burners, stainless steel cooking grids, and stainless steel housing.
• 15-Year Warranty: Brass valves, inner liners, manifold assemblies, porcelain housings, and backburner assemblies (excluding ignition parts).
• 5-Year Warranty: Flavor grids, infrared burners in the grill, and charcoal stainless steel grills.
• 3-Year Warranty: Side burners and other Fire Magic grill components (excluding ignition and electronic parts).
• 1-Year Warranty: Ignition systems (except batteries), electronic components (lights, thermometers), and grill accessories.
