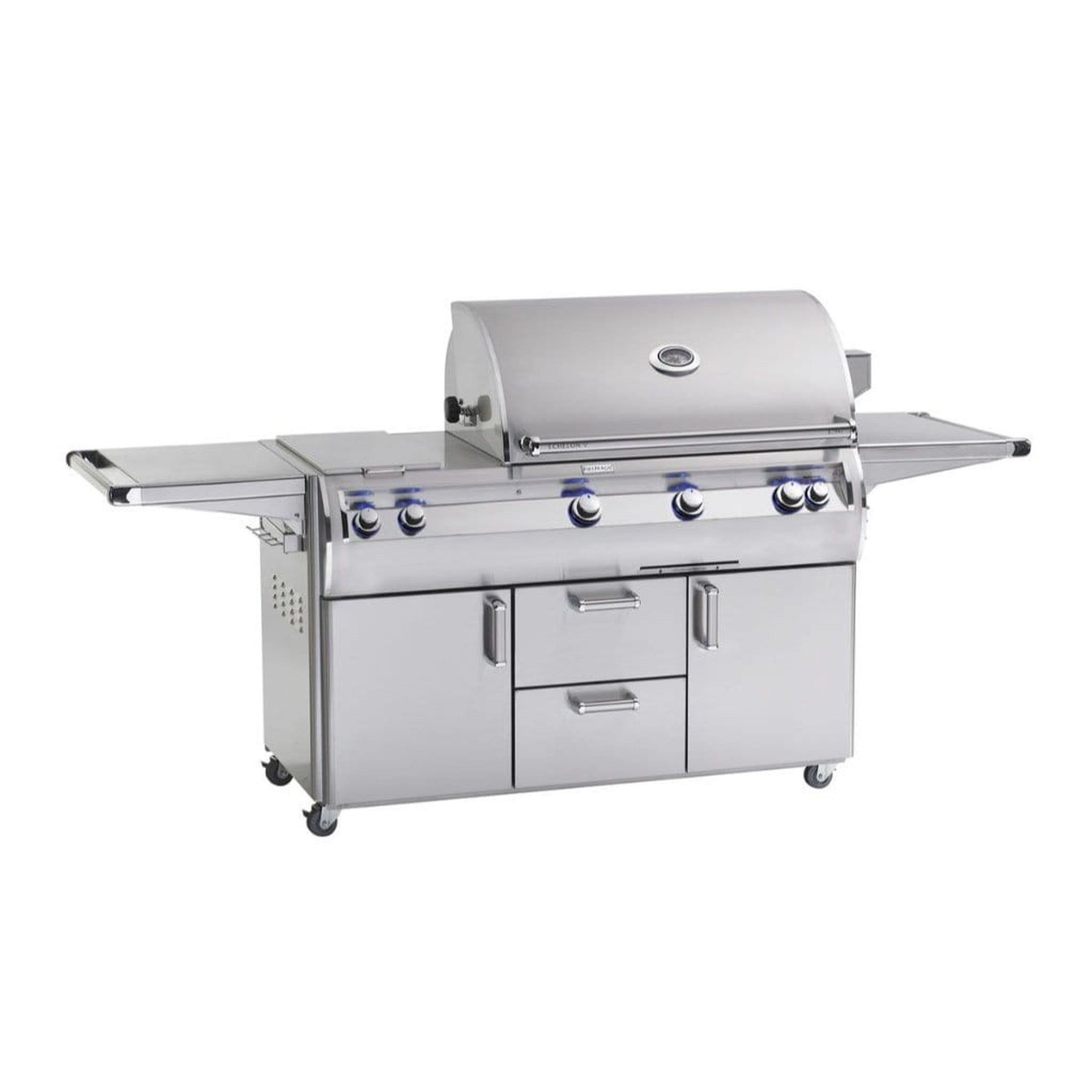

Fire Magic 36" 3-Burner Echelon Diamond E790s Gas Grill w/ Double Side Burner, Rotisserie & Analog Thermometer

The Fire Magic Difference

When you choose Fire Magic, you're investing in the finest grill available, backed by the industry's best and longest warranty. Our grills are designed to last a lifetime, ensuring that your outdoor cooking experience remains exceptional for years to come.

A Heritage of Unmatched Durability, Performance, and Versatility

Proudly crafted in the USA, Fire Magic Grills are built by skilled craftsmen who take pride in delivering top-tier grilling equipment. Constructed from high-quality, heavy-gauge stainless steel, these grills are engineered for superior performance, longevity, and elegance. For over 75 years, Fire Magic has set the standard in outdoor grilling excellence.

Echelon Diamond E790s

For those who demand the best, the Fire Magic Echelon Diamond E790s offers the pinnacle of performance, luxury, and innovation. Featuring sleek lines, a contoured face, and cutting-edge features like hot surface ignition, blue backlit knobs, and an optional Magic View Window, this grill defines luxury outdoor cooking.

Grill Features

Diamond Sear Cooking Grids

• Patented design with smooth, flat-top bars for optimal heat transfer.

• Over 0.35” wide bars cover more than half of the cooking surface.

• Heavy-duty cross-rods provide durability.

• 304 stainless steel construction with a matte, non-stick finish.

Cast Stainless Steel Burners

• 1/4” thick cast 304 stainless steel burners weighing up to 12 lbs.

• Protective lip design prevents grease clogging.

• Each burner delivers up to 31,000 BTUs.

• Lifetime warranty included.

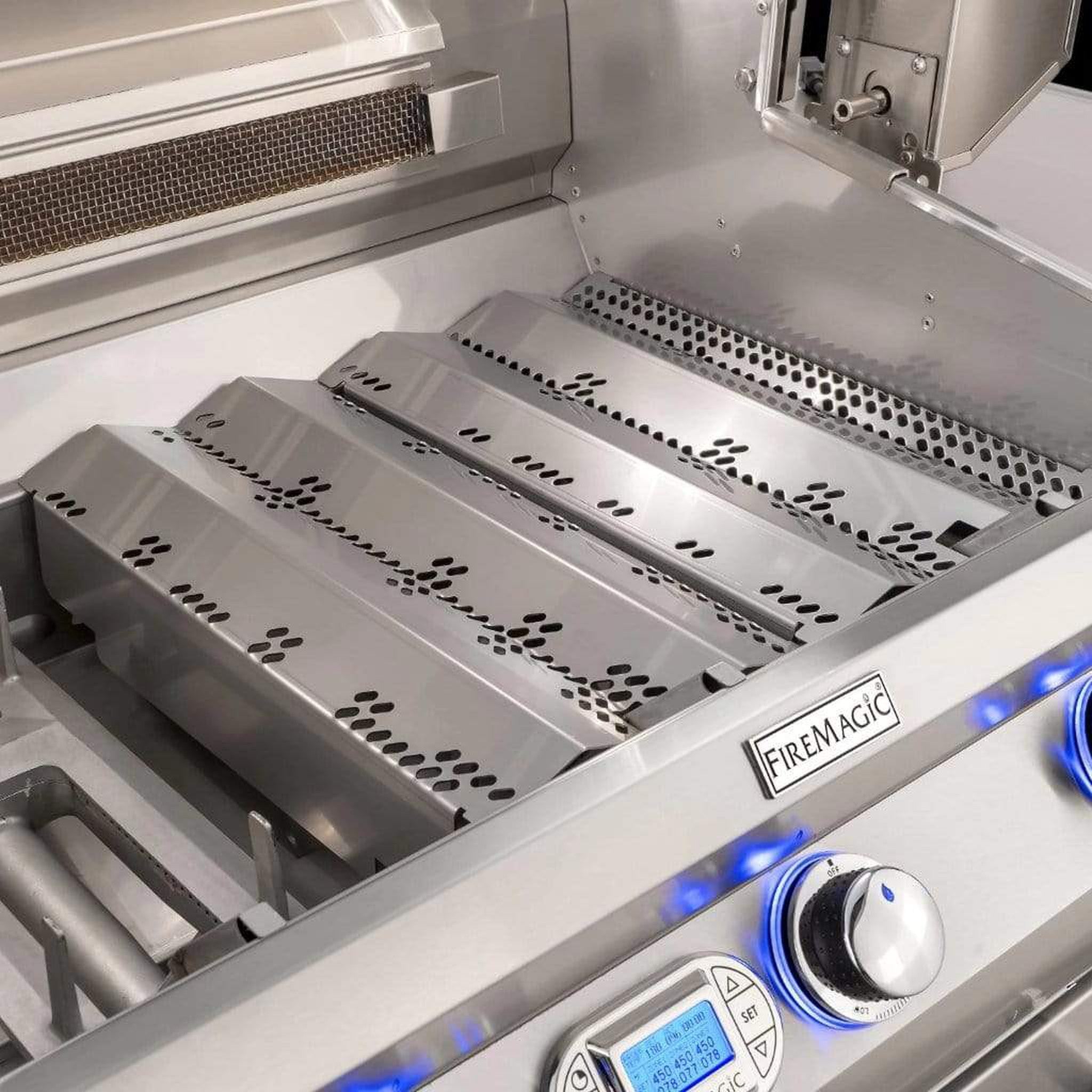

Flavor Grids

• Ensures even heat distribution and enhances food flavor by vaporizing juices.

• Reduces flare-ups and grease fires.

• 16-gauge 304 stainless steel with rounded corners for safety.

• Easily removable for rotisserie cooking.

90-Degree Double-Walled Hood

• Double-walled 304 stainless steel construction for heat retention.

• Opens to 90 degrees for easy access and ventilation.

• Teflon-coated spring assist for smooth operation.

Charcoal Smoker Basket

• Stainless steel basket for grilling with charcoal or smoking with wood chips.

• Expanded stainless steel metal grid for placement.

• Bottom ash catch for easy cleanup.

• 14-gauge stainless steel smoker cover with a convenient lifter.

Echelon Drip Tray

• Ball-bearing glide system for effortless use.

• Compatible with Fire Magic drip tray liners for easy cleaning.

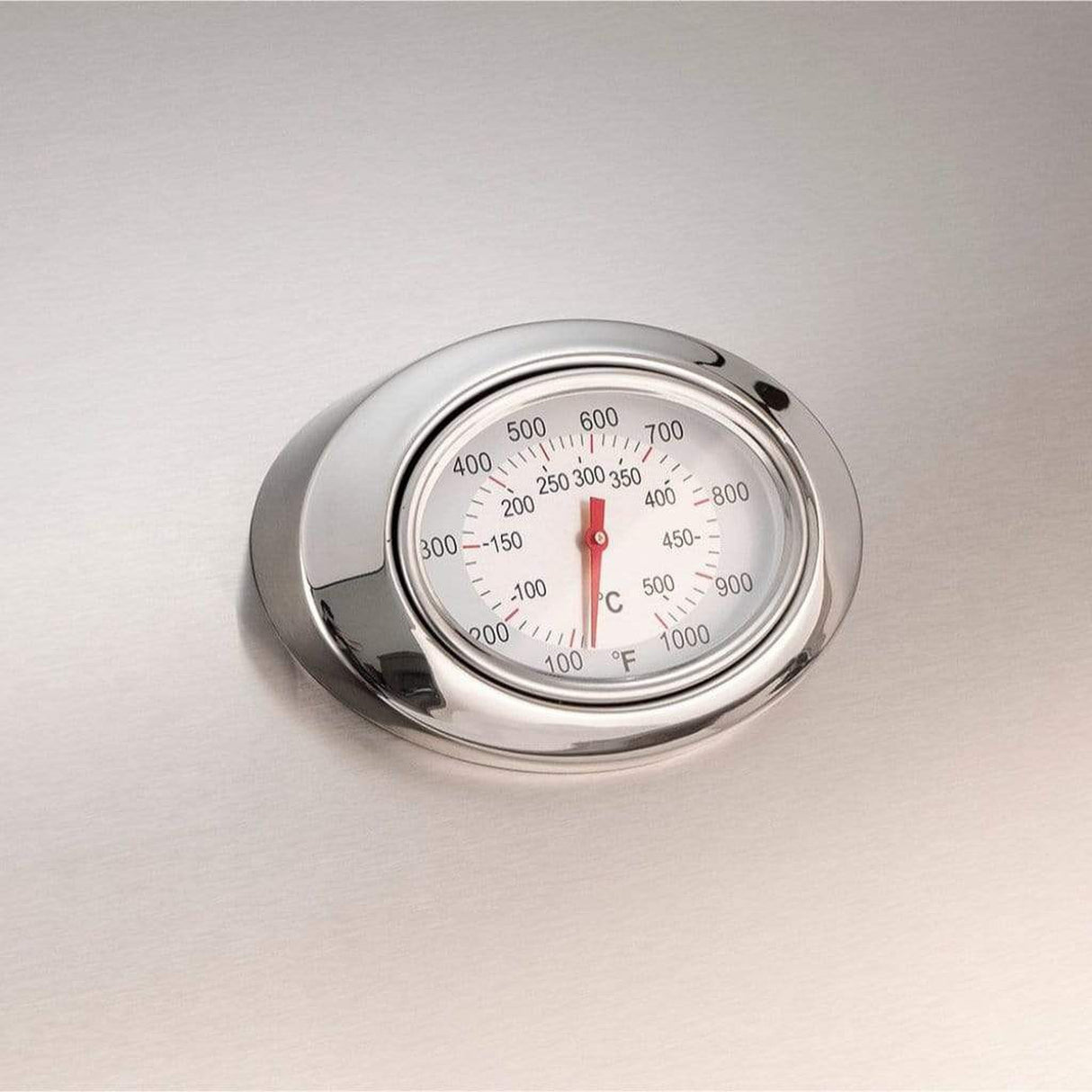

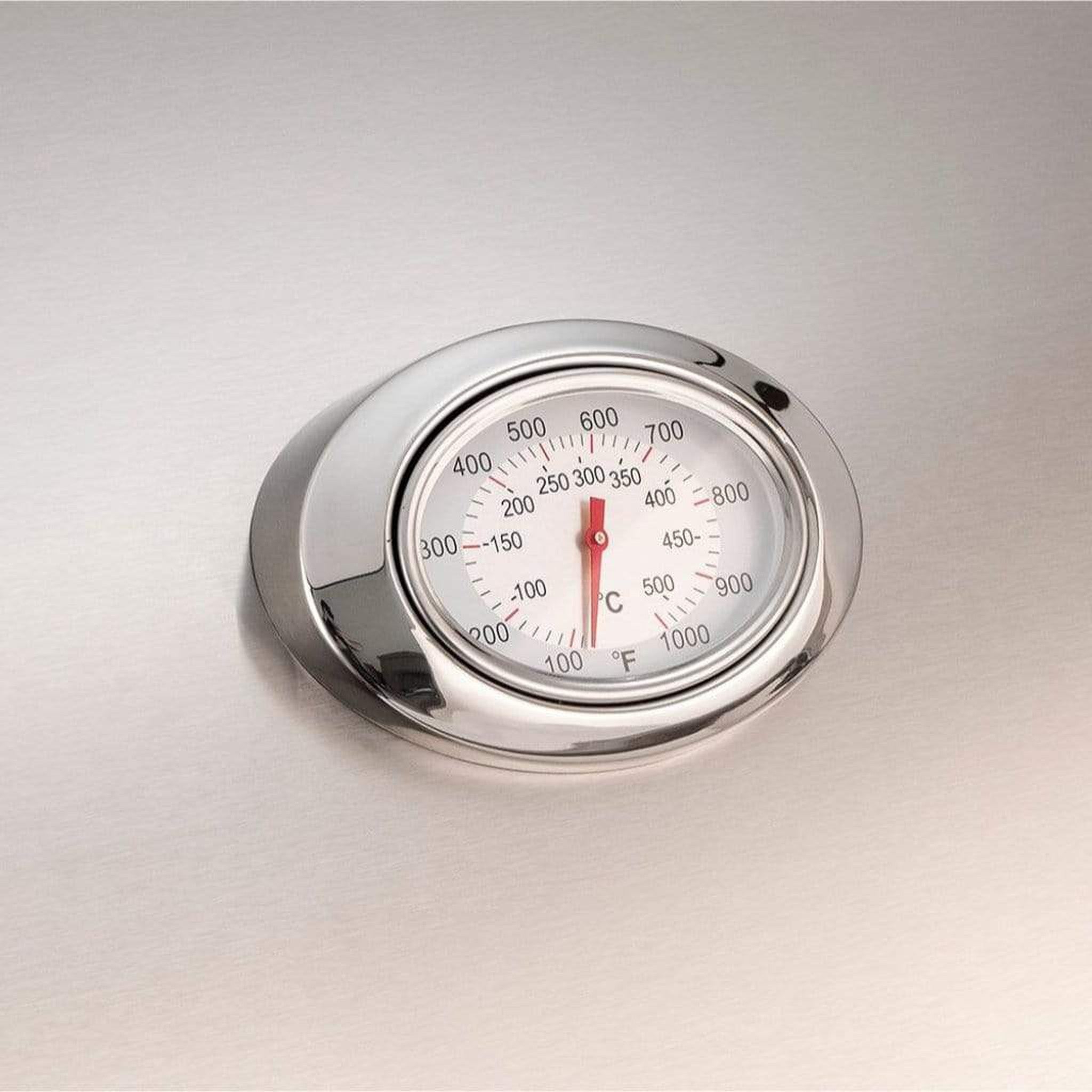

Analog Thermometer

• Polished stainless steel bezel with a forward angle for easy viewing.

• Measures temperatures up to 1000°F.

Additional Features

• Contoured control panel

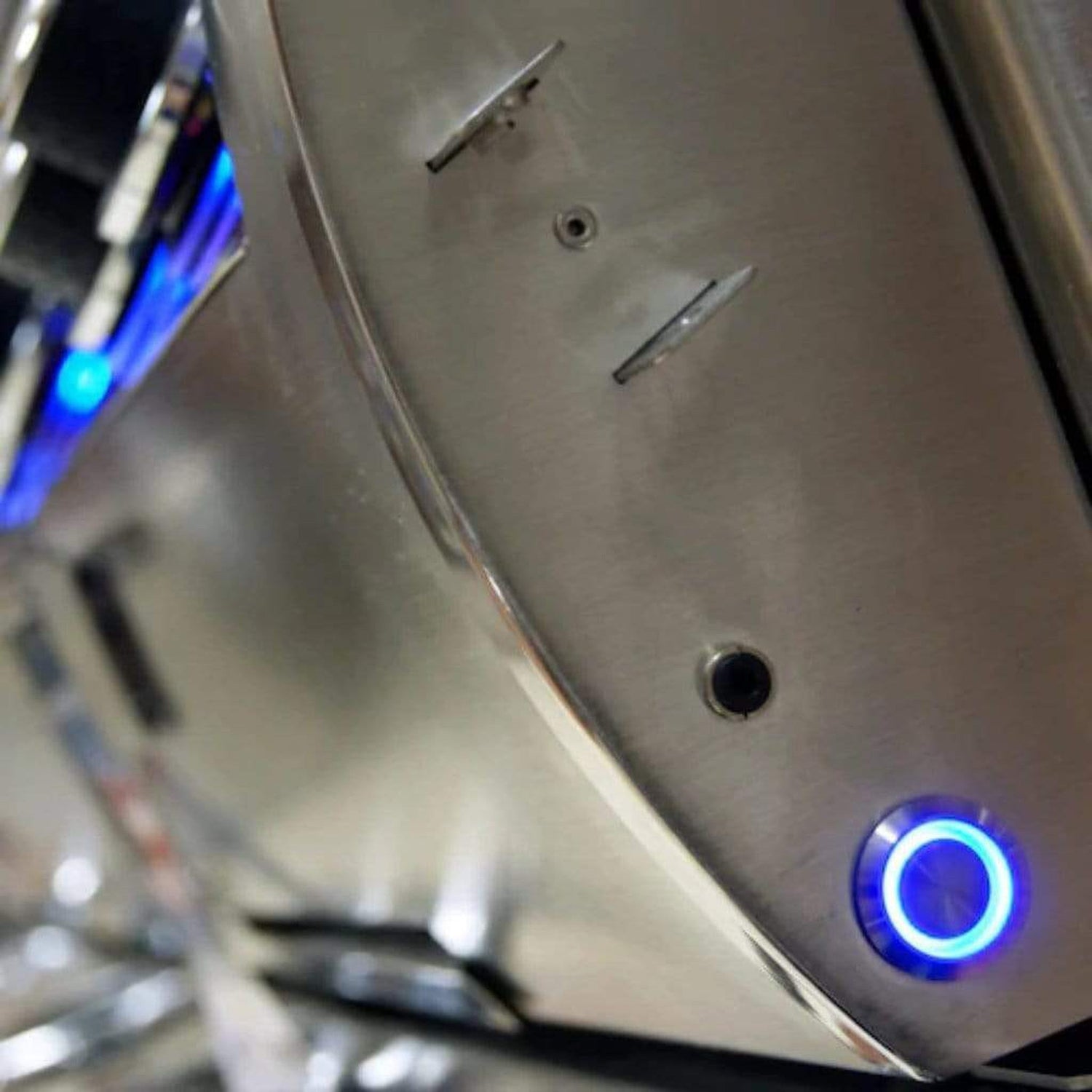

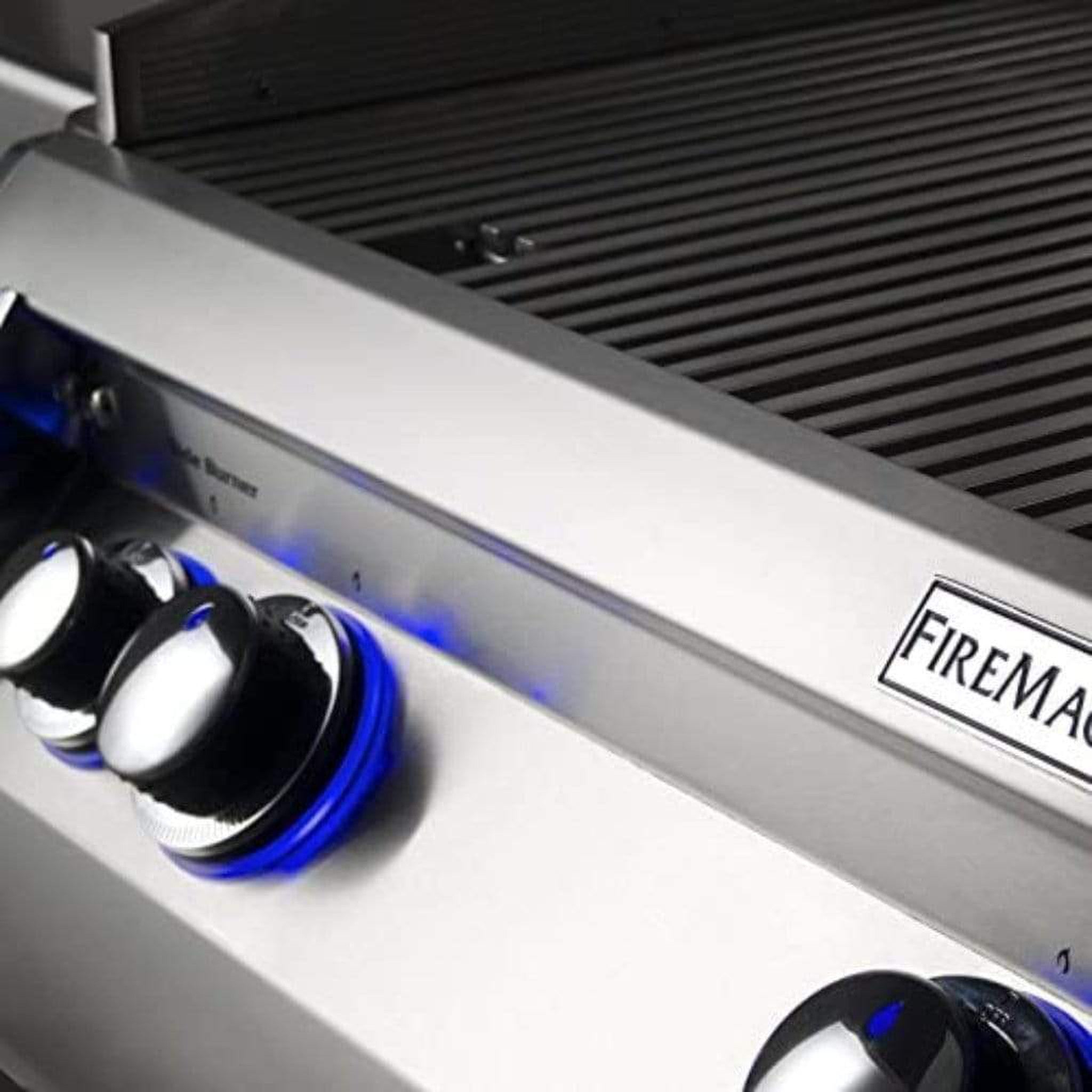

• LED backlit comfort touch knobs

• Analog grill thermometer in the hood

• Master power switch

• Sliding tray with latch

• Pre-assembled on a stainless steel cart

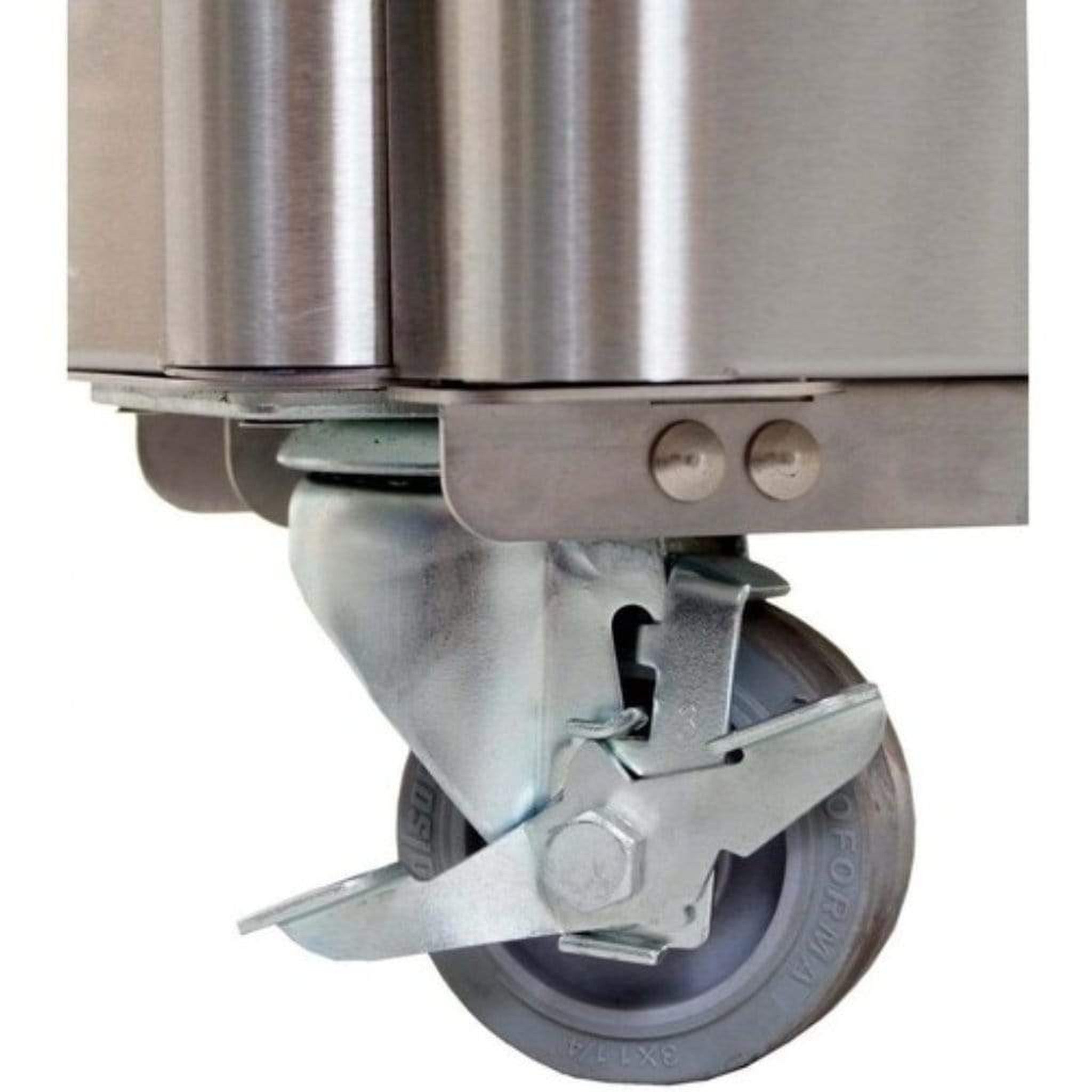

• Four locking casters

• Dual storage doors and drawers

• Two fold-down solid shelves with towel bars

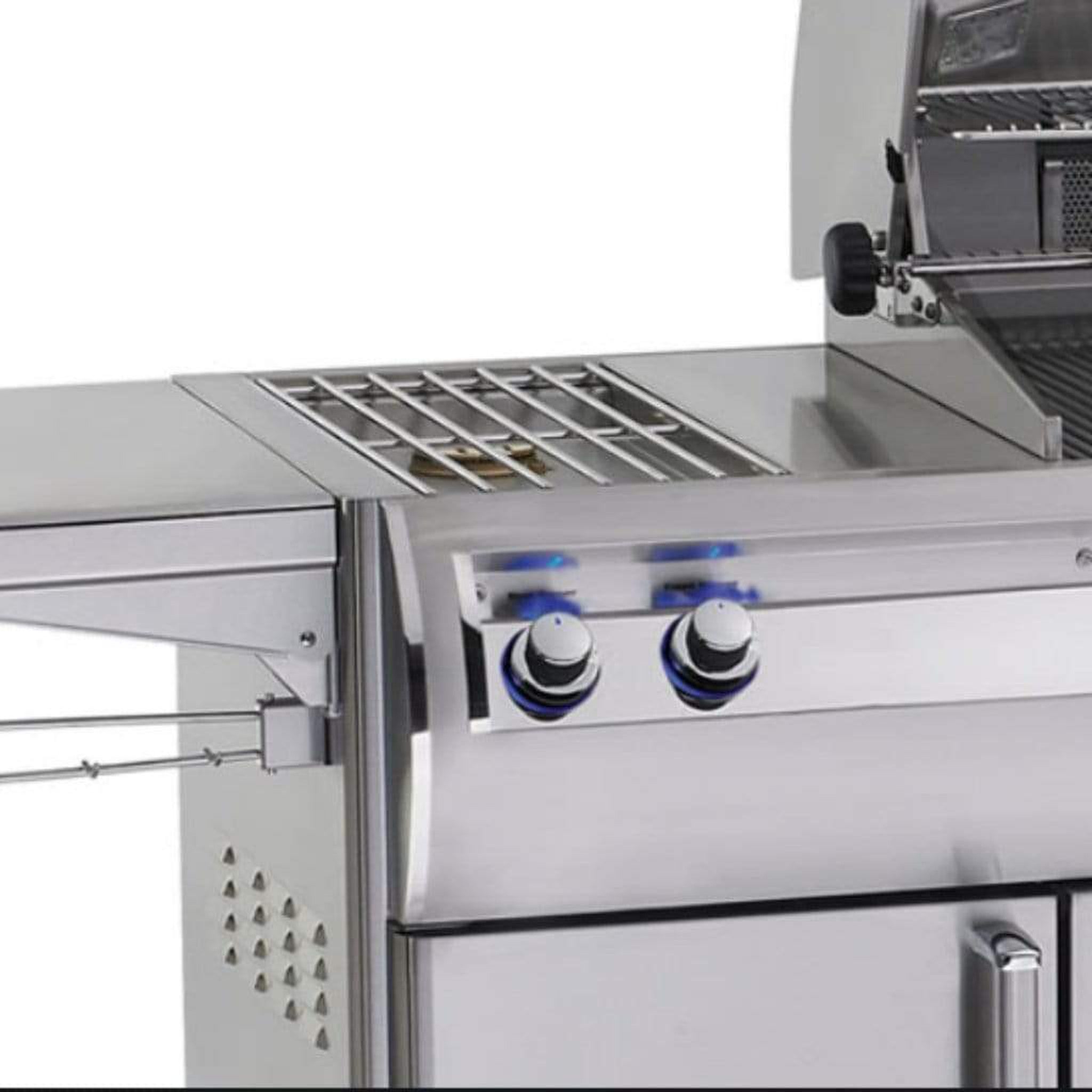

• Double side burner

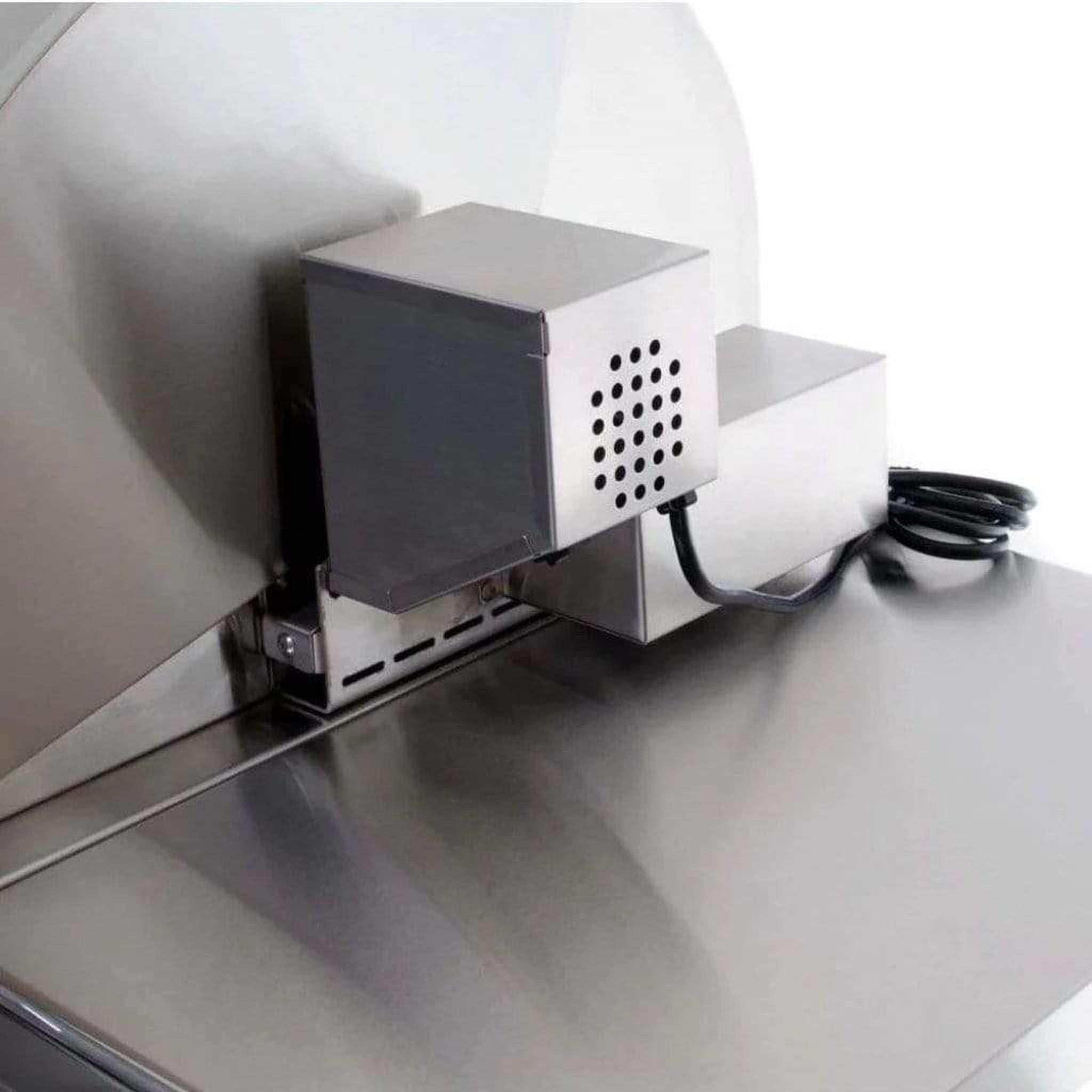

• Rotisserie kit included

Specifications

Feature	Details
Model Number	E790s (-71)
Burners	3 Cast Stainless Steel "E" Burners
Cooking Area	36” x 22” (792 sq. in.)
Warming Rack	36” x 8” (288 sq. in.)
Grilling Area BTU	96,000
Rotisserie Burner BTU	13,000
Side Burner BTU (2)	30,000
Dimensions	92” (W) x 29.75” (D) x 60.5” (H)
Exterior Material	304 Stainless Steel
Cooking Grate	Stainless Steel
Ignition	120 VAC/12 Volt Hot Surface Ignition
Weight	550 lbs.
Thermometer	Analog

Optional Upgrades

Magic View Window

• Monitor your food without lifting the hood, preserving heat and cooking efficiency.

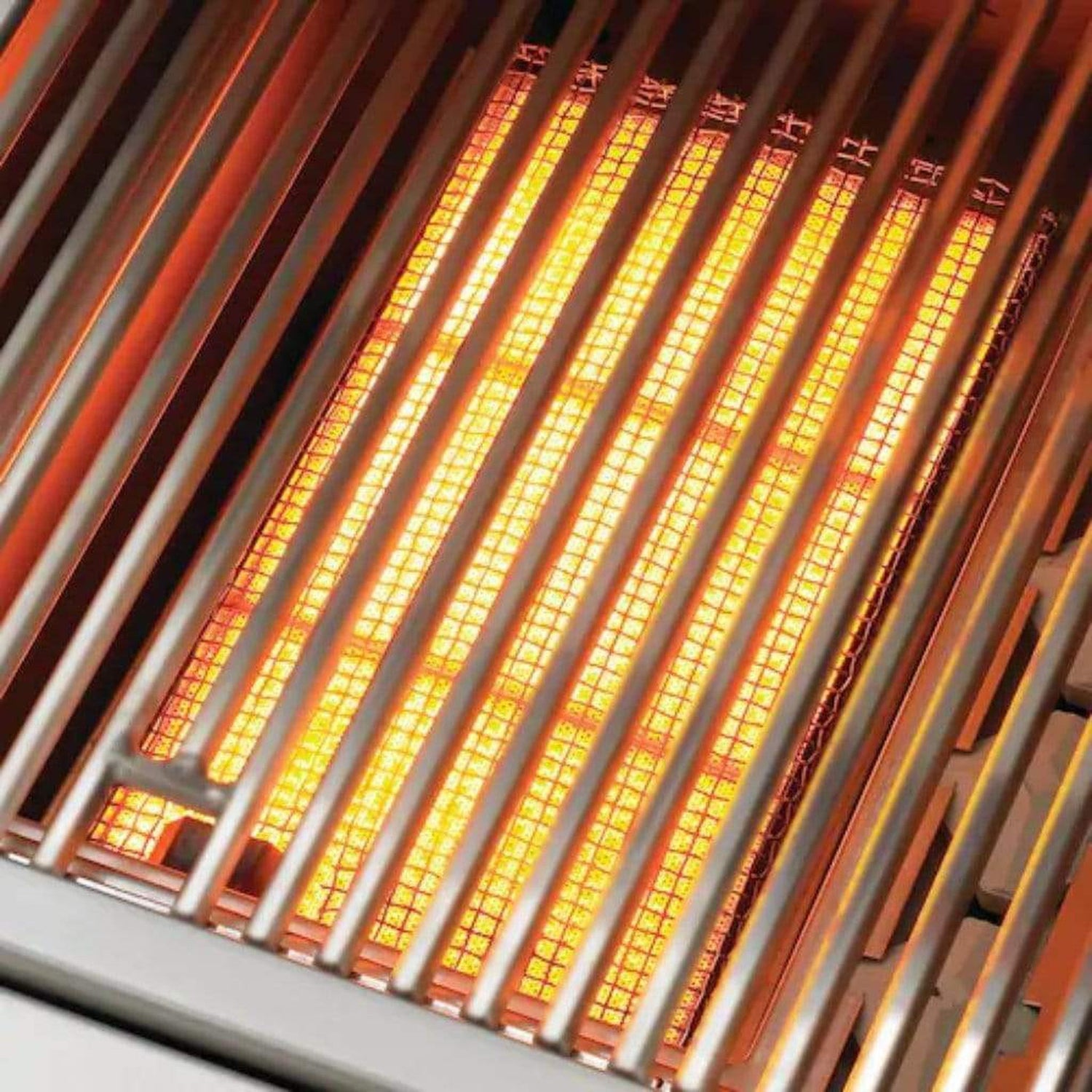

Infrared Burner (Left)

• Ideal for searing steaks and high-heat cooking.

Optional Accessories

• Additional accessories available to enhance your grilling experience.

Warranty

Fire Magic offers one of the best warranties in the industry:

• Lifetime Warranty: Cast stainless steel burners, stainless steel cooking grids, and stainless steel housing.

• 15-Year Warranty: Brass valves, inner liners, manifold assemblies, porcelain housings, and backburner assemblies (excluding ignition parts).

• 5-Year Warranty: Flavor grids, infrared burners, and Charcoal stainless steel grills.

• 3-Year Warranty: Side burners and additional grill components (excluding ignition and electronics).

• 1-Year Warranty: Ignition systems (excluding batteries), electronic components, and grill accessories.
