Description
The Fire Magic Difference
When you choose Fire Magic, you're investing in the finest grill available—built to last a lifetime and backed by the industry's best warranty. Designed and crafted in the USA, Fire Magic Grills combine premium materials, precision engineering, and cutting-edge technology to deliver unmatched durability, performance, and versatility.Fire Magic Grills are constructed with heavy-gauge, appliance-grade stainless steel, ensuring they withstand high temperatures and harsh outdoor conditions for years to come. Whether you're grilling for family gatherings or professional events, Fire Magic delivers superior cooking results every time.

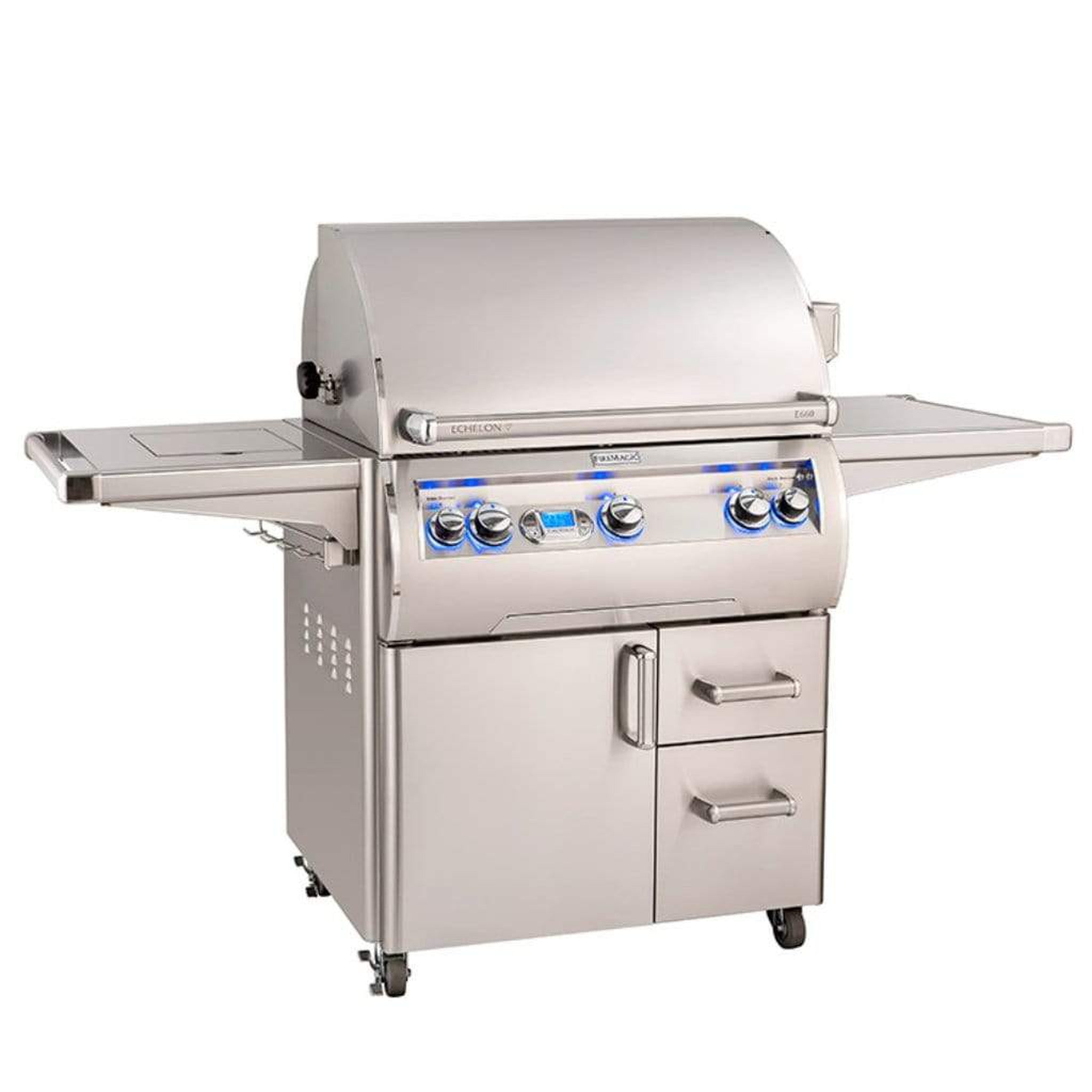

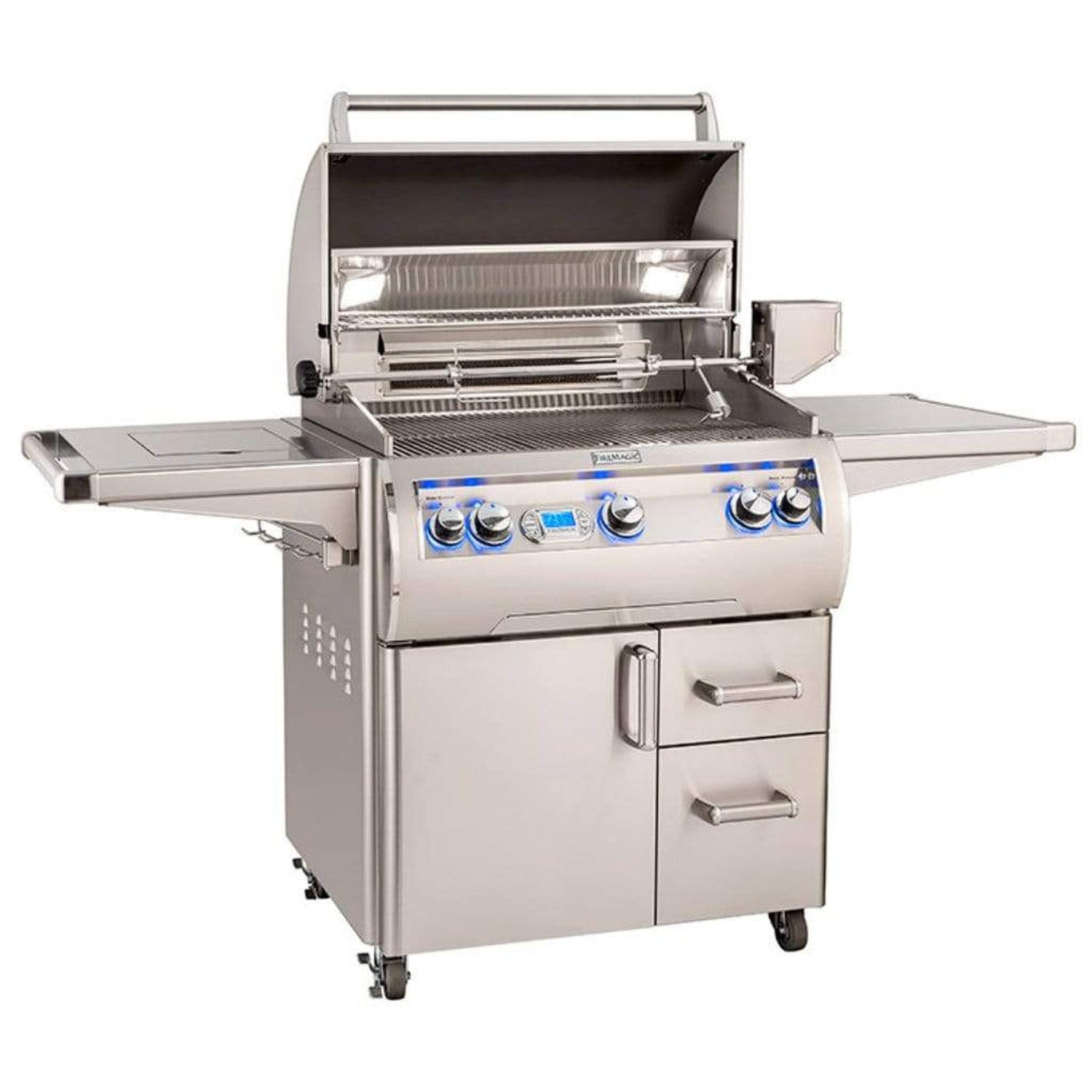

Echelon Diamond E660s: The Ultimate in Luxury Grilling
For those who demand the best, the Fire Magic Echelon Diamond E660s is the pinnacle of performance, beauty, and innovation. Featuring a sleek contoured design, hot surface ignition, blue backlit knobs, and an optional Magic View Window, this grill sets the standard for high-end outdoor cooking.
Key Features
90-Degree Double-Walled Hood
- 304 stainless steel construction for superior heat retention
- Opens to 90 degrees for easy access and efficient ventilation
- Teflon-coated spring assist for smooth, effortless operation
Angled Halogen Internal Lights
- Integrated 12V halogen bulbs for nighttime grilling
- Angled lighting for optimal visibility
- No screws and removable lens for easy cleaning and bulb replacement
Cast Stainless Steel Burners
- Made from 1/4" thick 304 stainless steel for durability
- Each burner weighs up to 12 lbs and delivers up to 31,000 BTUs
- Lifetime warranty
Charcoal Smoker Basket
- Allows grilling with charcoal or smoking with wood chips
- Stainless steel basket ignites quickly on the burner
- Bottom ash catch for easy cleanup
- Includes 14-gauge stainless steel smoker cover with lifter
Diamond Sear Cooking Grids
- Patented flat-top bars maximize heat transfer for even cooking
- 304 stainless steel with heavy-duty cross-rods for strength
- Bead-blasted matte finish for a non-stick surface
Chrome Digital Thermometer with Meat Probe
- Electronic temperature display with meat probe
- Independent zone temperature control
- Built-in oven light switch
- Choose from four backlight colors

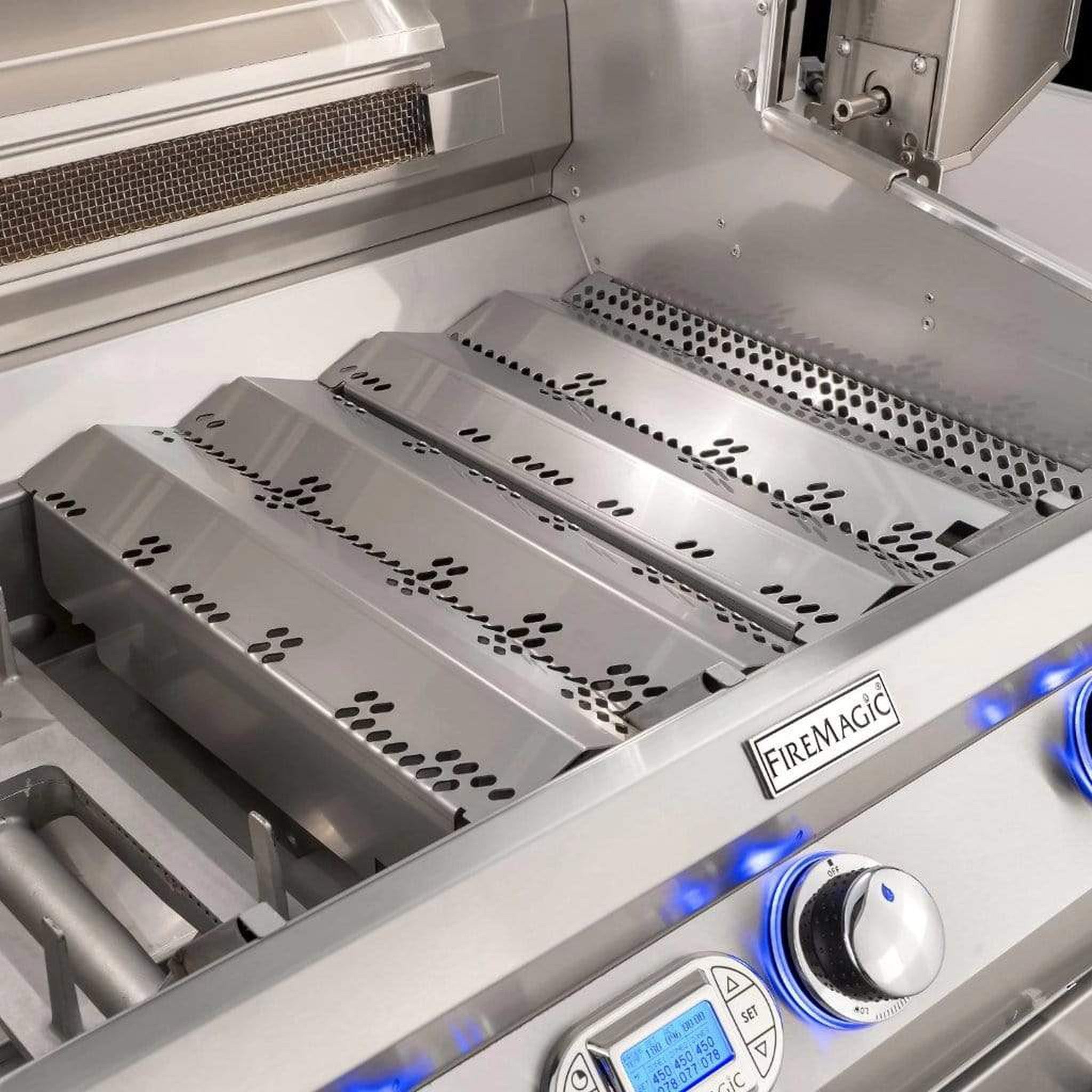

Flavor Grids
- Vaporizes drippings for added flavor while reducing flare-ups
- 16-gauge 304 stainless steel with rounded corners for safety
- Easy to remove for expanded rotisserie space
- 5-year warranty
Recessed Infrared Backburner
- Ceramic system encased in stainless steel mesh for high BTU output
- Faster, more efficient rotisserie cooking
- Includes protective stainless steel cover
Additional Features
- Available in 30", 36", and 48" models
- Contoured control panel

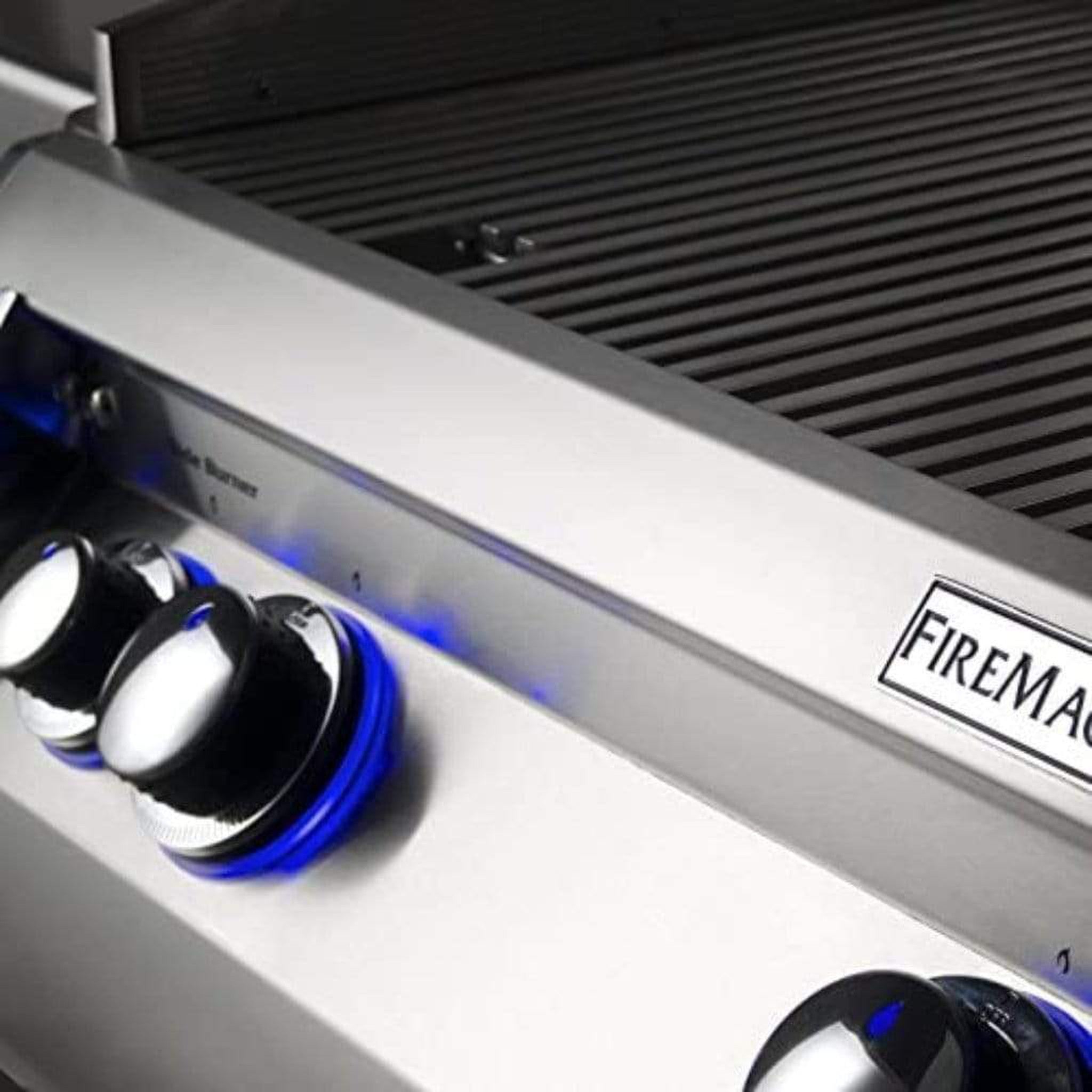

- LED backlit comfort-touch knobs

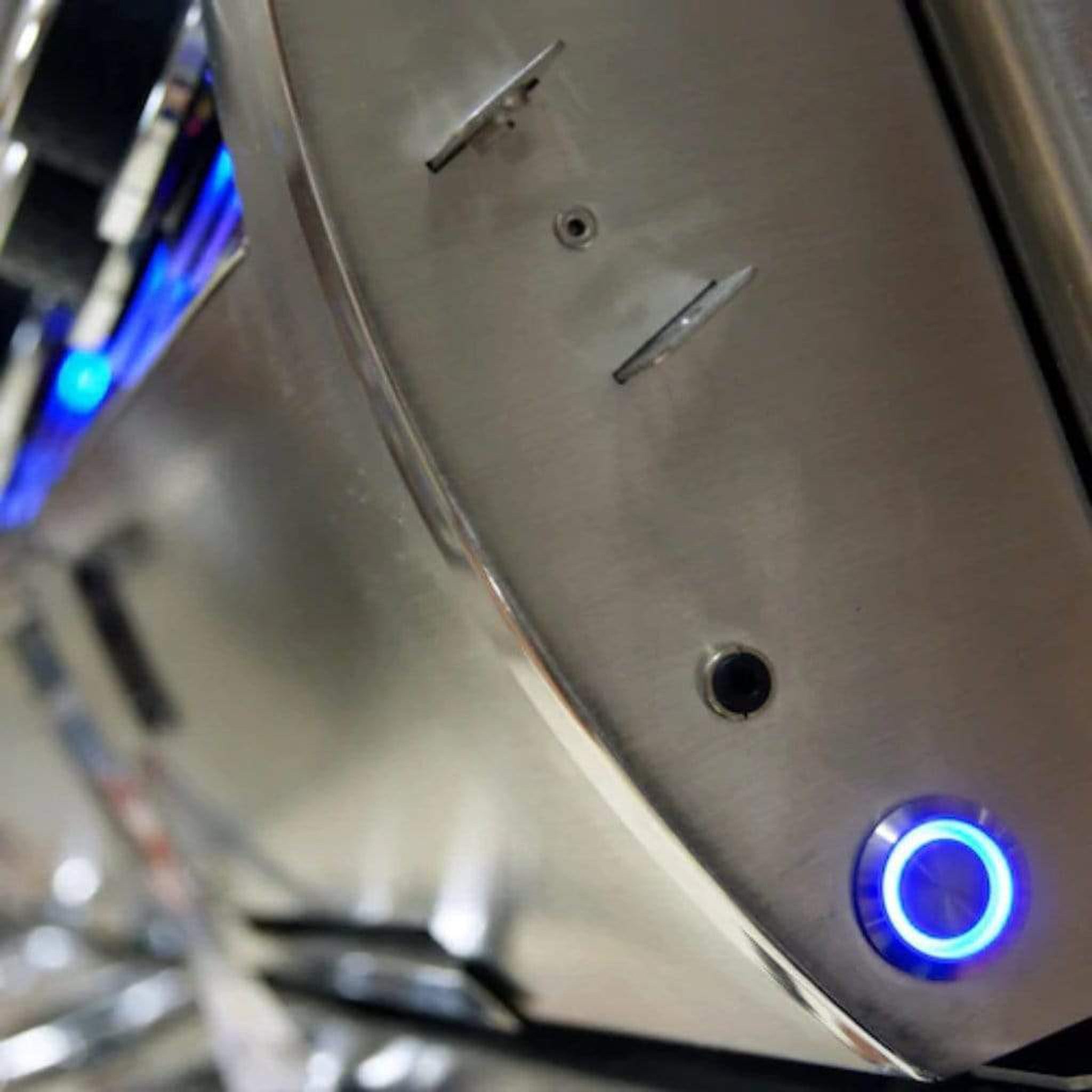

- Master power switch
- Sliding tray with latch
- Pre-assembled stainless steel cart

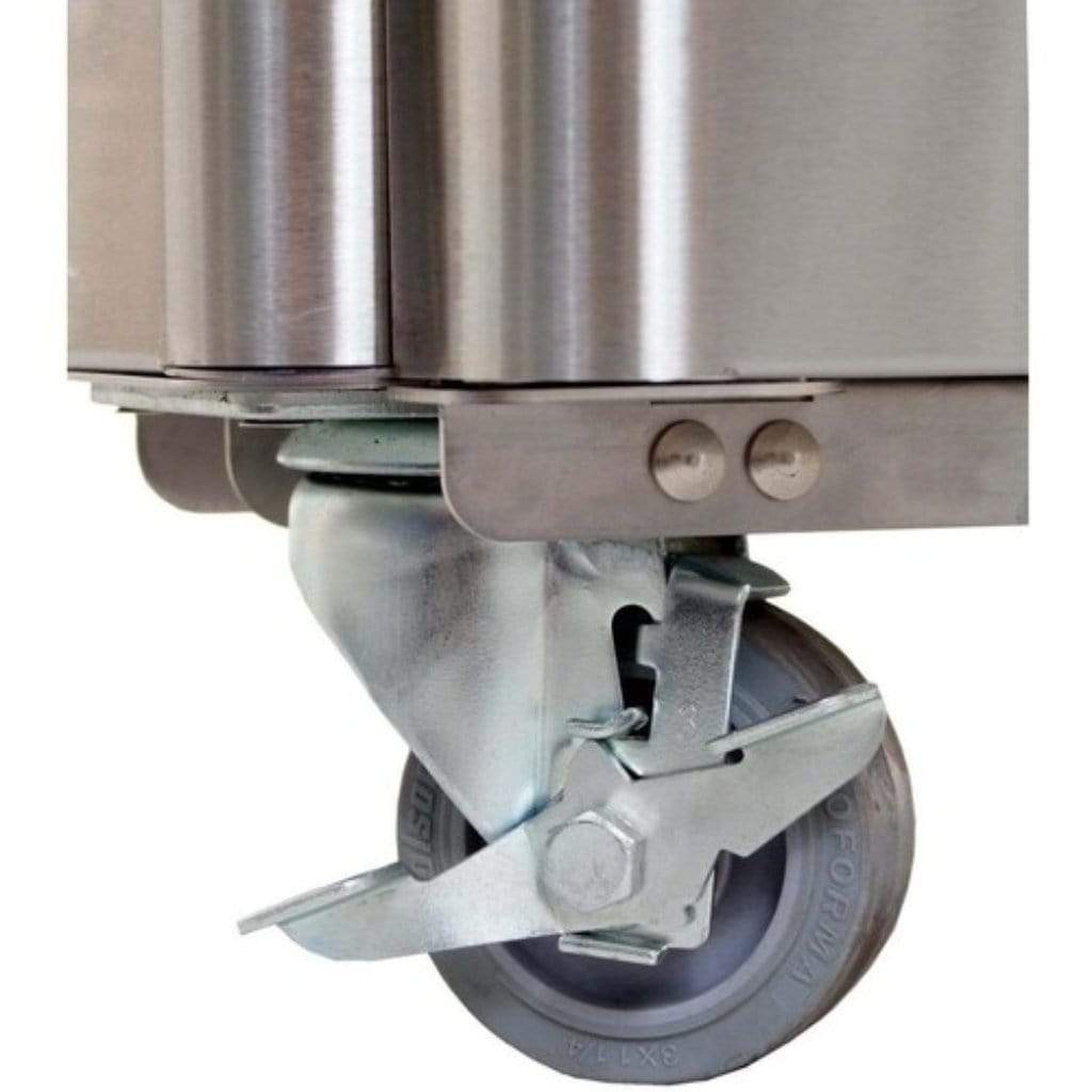

- Four locking casters
- Insulated storage doors
- Dual storage drawers
- Two fold-down solid shelves with towel bars

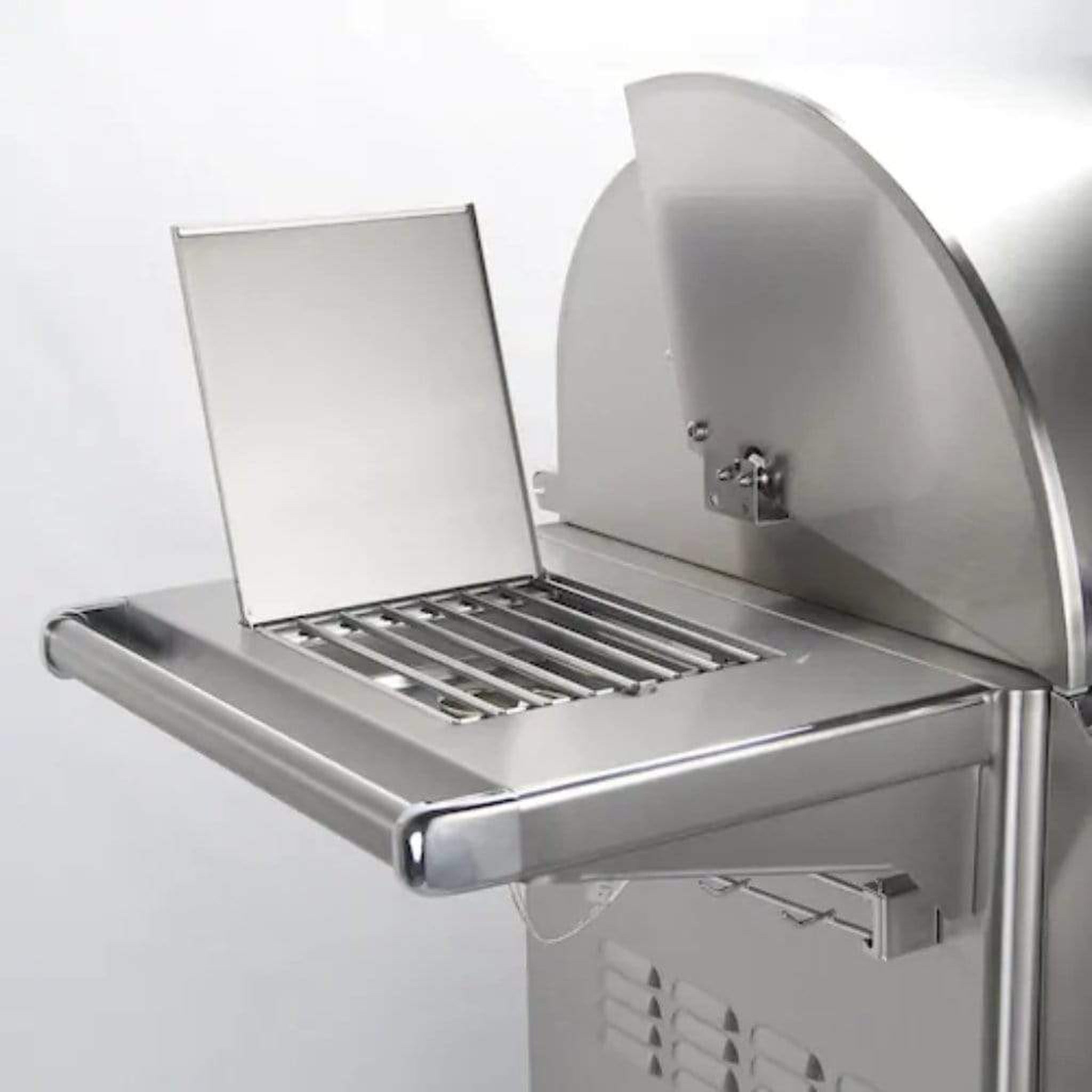

- Flush-mounted side burner

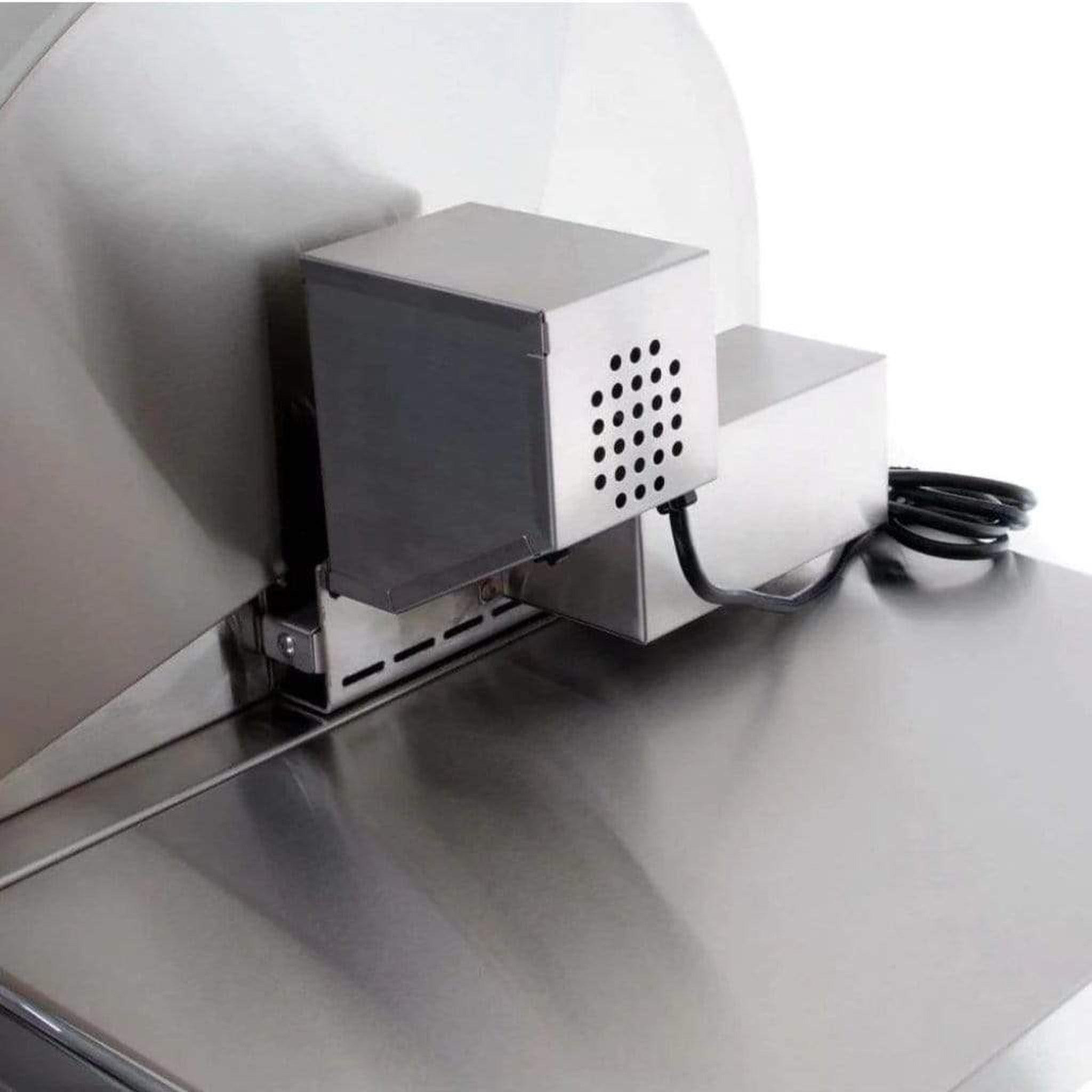

- Rotisserie kit included
Specifications
| Feature | Specification |
|---|---|
| Model Number | E660s (-62) |
| No. of Burners | 3 Cast Stainless Steel "E" Burners |
| Cooking Area | 30” x 22” (1,056 sq. in.) |
| Warming Rack | 30” x 8” (384 sq. in.) |
| Grilling Area BTU | 75,000 |
| Rotisserie Burner BTU | 11,000 |
| Side Burner BTU | 15,000 |
| Dimensions | 67.5" (W) x 29.75" (D) x 60.5" (H) |
| Exterior Material | 304 Stainless Steel |
| Cooking Grate | Stainless Steel |
| Ignition | 120 VAC/12V Hot Surface Ignition |
| Weight | 375 lbs |
| Thermometer | Digital |
Optional Upgrades

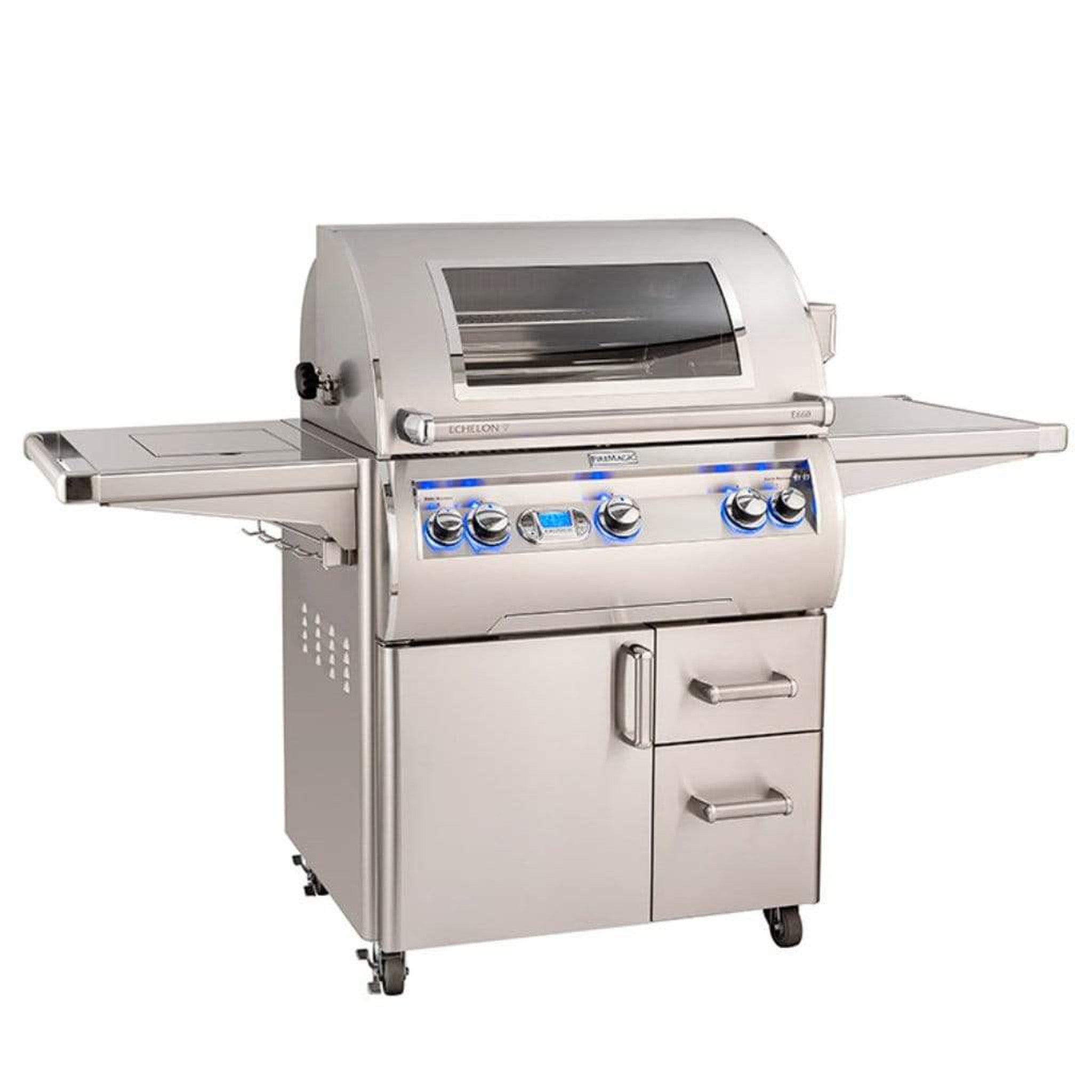

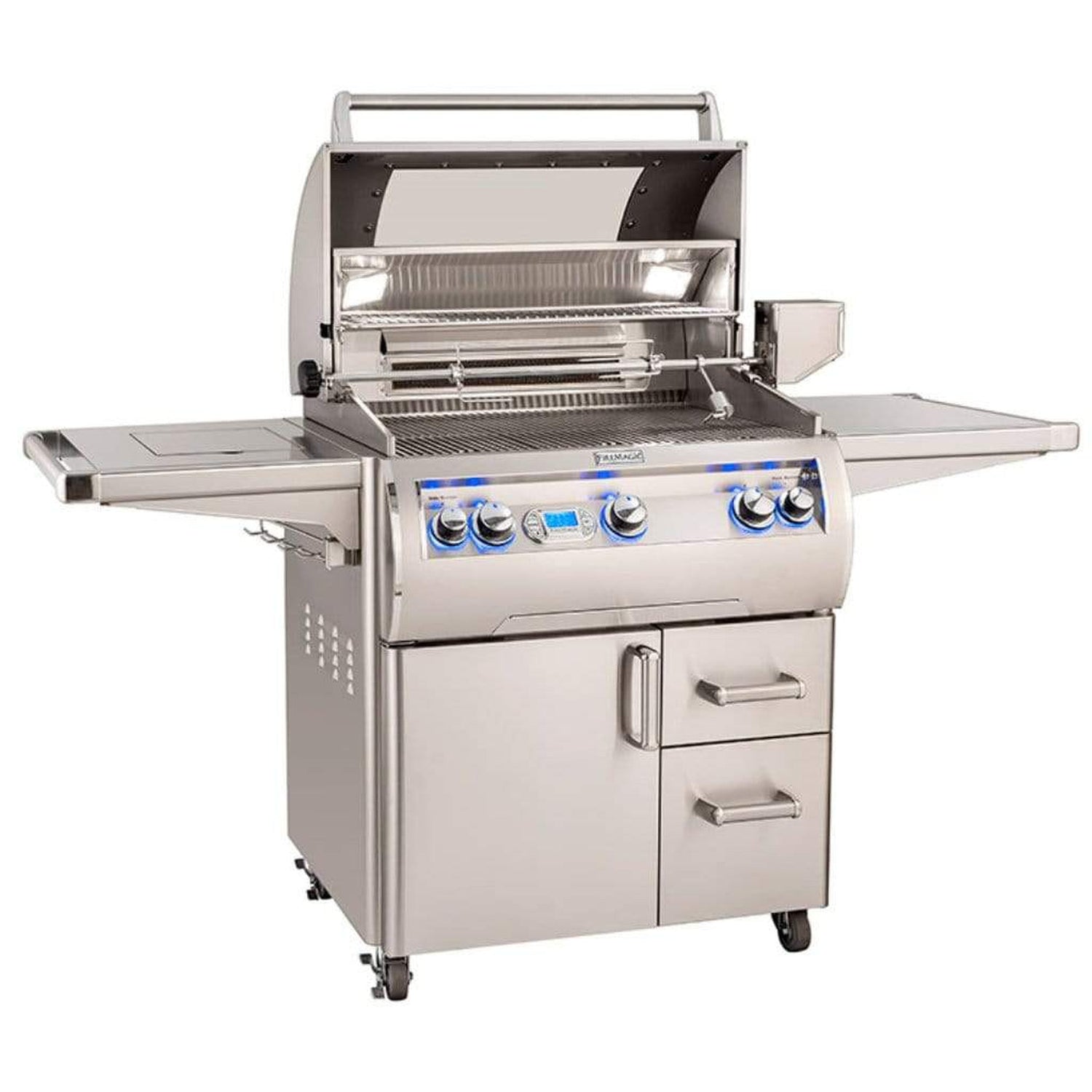

Magic View Window
- Monitor food without lifting the hood and losing heat

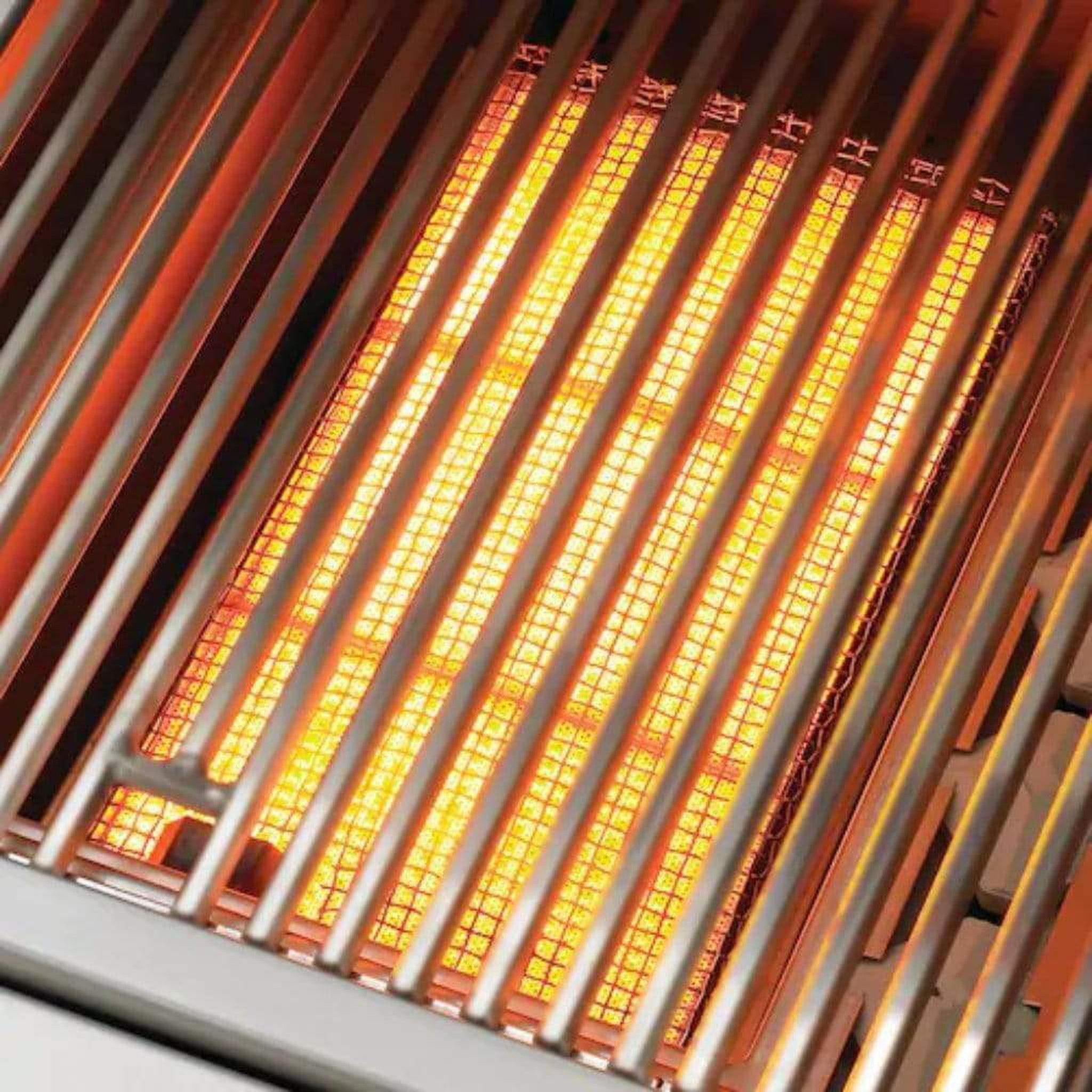

Infrared Burner (Left)
- Ideal for searing steaks or achieving high, intense heat
Warranty
- Lifetime Warranty: Cast stainless steel burners, stainless steel cooking grids, stainless steel housing
- 15-Year Warranty: Brass valves, inner liners, manifold assemblies, porcelain housings, backburner assemblies
- 5-Year Warranty: Flavor grids, infrared burners, charcoal stainless steel grills
- 3-Year Warranty: Side burners, other Fire Magic grill components (excluding ignition and electronic parts)
- 1-Year Warranty: Ignition systems (excluding batteries), electronic components (lights and thermometers), grill accessories
