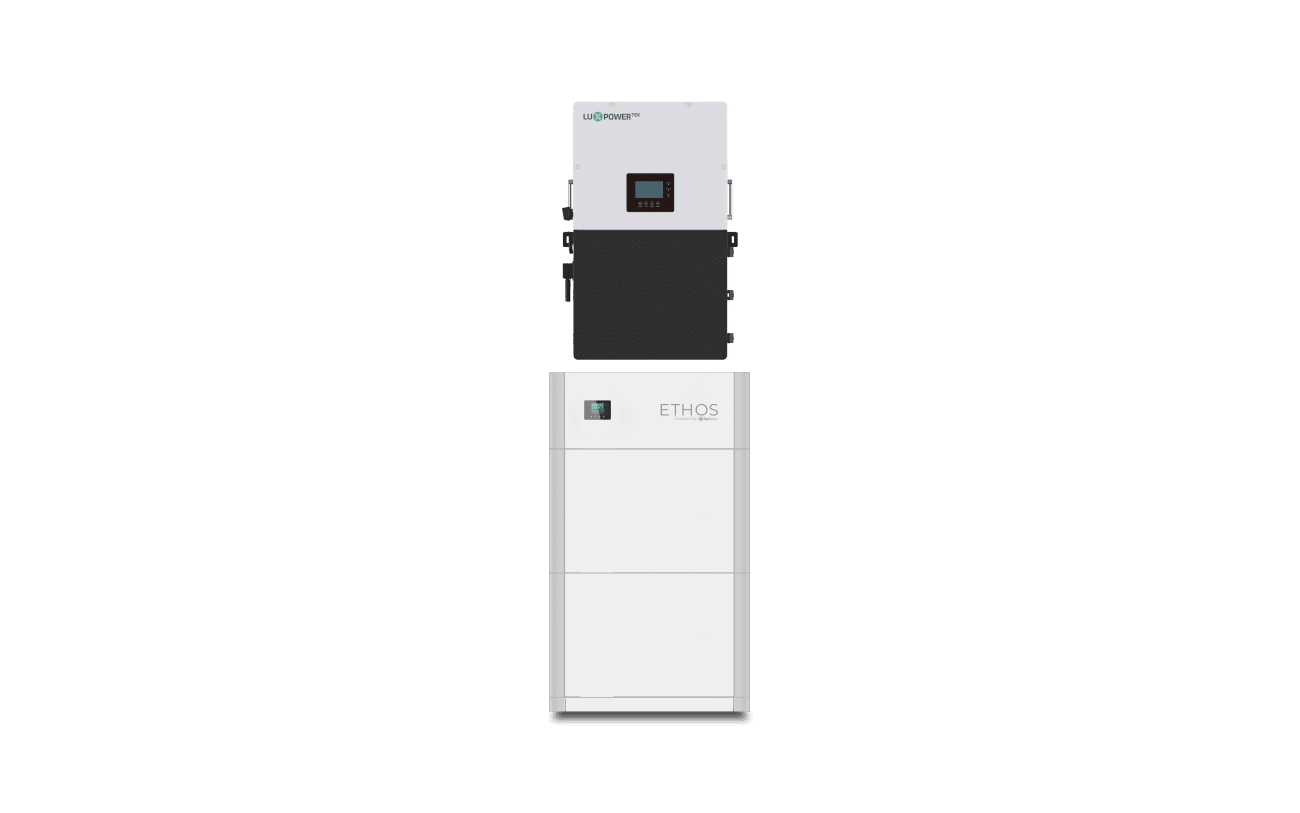

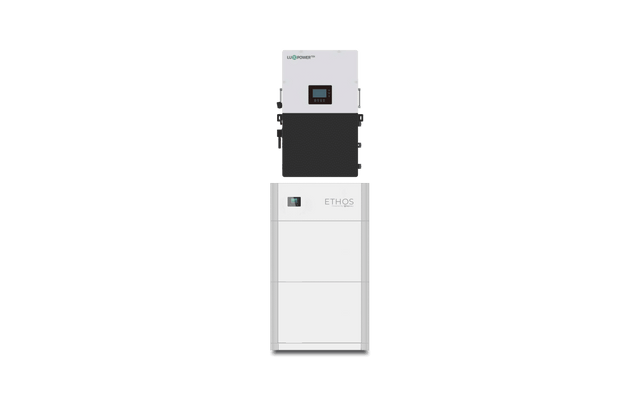

BigBattery 12kW 10.2kWh ETHOS Energy Storage System (ESS)


Price:
Sale price$8,940.00

Description

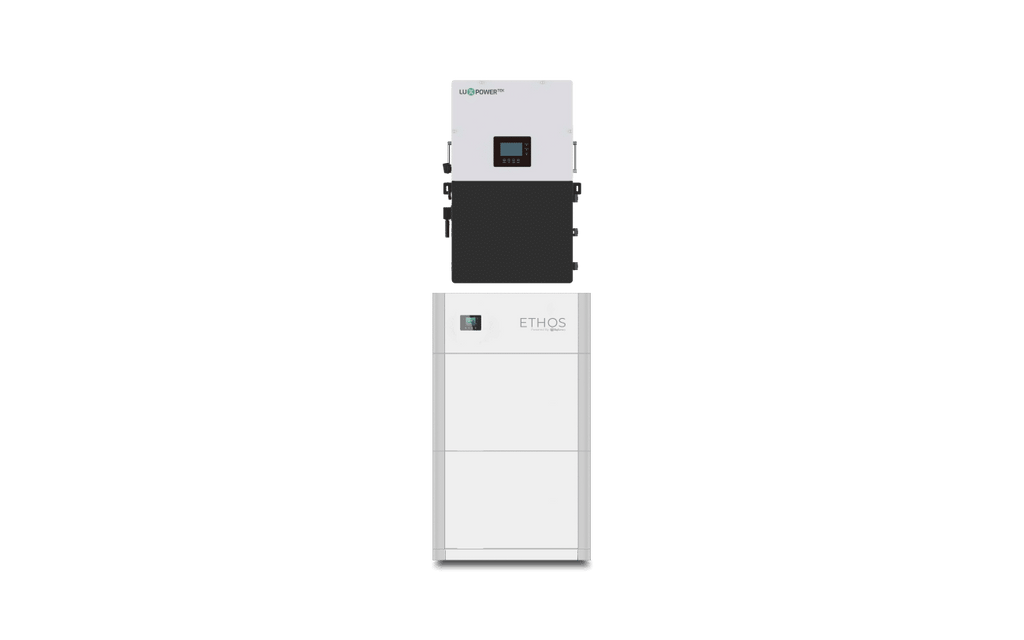

BigBattery 12kW 10.2kWh ETHOS Energy Storage System (ESS)

REVOLUTIONIZING RESIDENTIAL ESS! BigBattery’s 48V ETHOS systems are here, and this 10kWh indoor configuration is the ideal solution for grid-tied power in your tiny home, cabin, or family home, supported by comprehensive safety, reliability, and state-of-the-art features.

The ETHOS System was built to be a versatile home power solution, with a stackable, modular design for easy expandability, and all hardware included to mount your ETHOS to your wall with an effortless installation. The ETHOS comes equipped with an IP65-rated casing, an internal fire suppression system, as well as an advanced BMS with auto cell-balancing to ensure long-lasting safety and reliability. Plus, its control box features an interactive LED display, along with CANBus and RS485 communication protocols, so you can always monitor the status and performance of your power.

But that’s not all. We pair our ETHOS with a cutting-edge 12000W Lux inverter, which features its own LCD touch screen display, 3 MPPT inputs, an integrated UPS module for seamless on and off-grid switching, and the ability to handle PV arrays of up to 18000W. Plus, through its smart load control, AC coupling abilities, and peak shaving function, you can meet your power needs and protect your home against unstable grids or rolling blackouts, while seeing huge savings each month on your electric bill.

Whether you’re looking to ensure emergency backup power is always available, or you’re looking to outfit your home with a powerful solar system, the ETHOS ensures reliable, efficient power delivery day in and day out, allowing you to save on utilities, or get rewarded for giving back to the grid through net metering programs and other tax incentives. Take control of your home’s power and shop the 48V ETHOS today!

Included Components

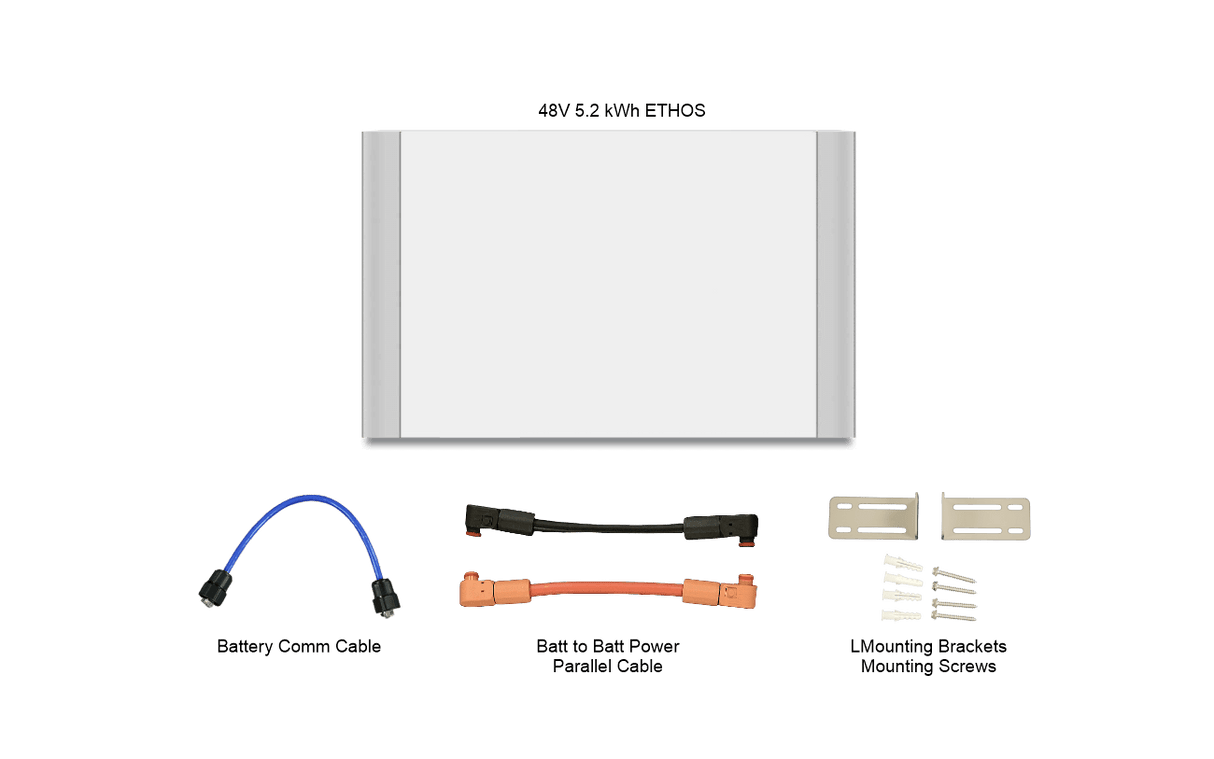

  • 2 × 48V ETHOS 5.12kWh Stackable Battery Module (FETHS-48051-G1)

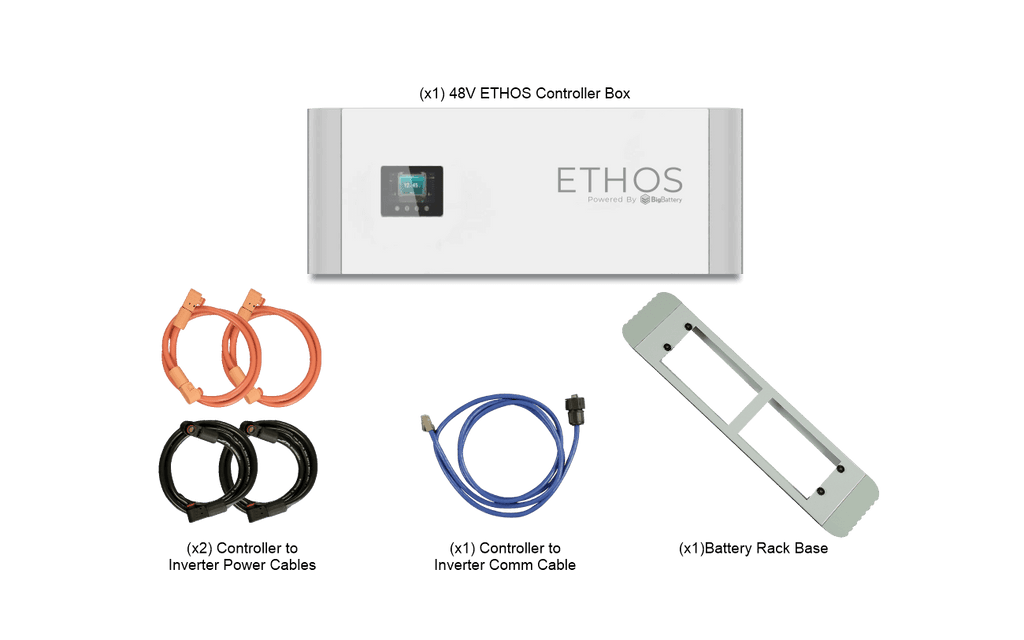

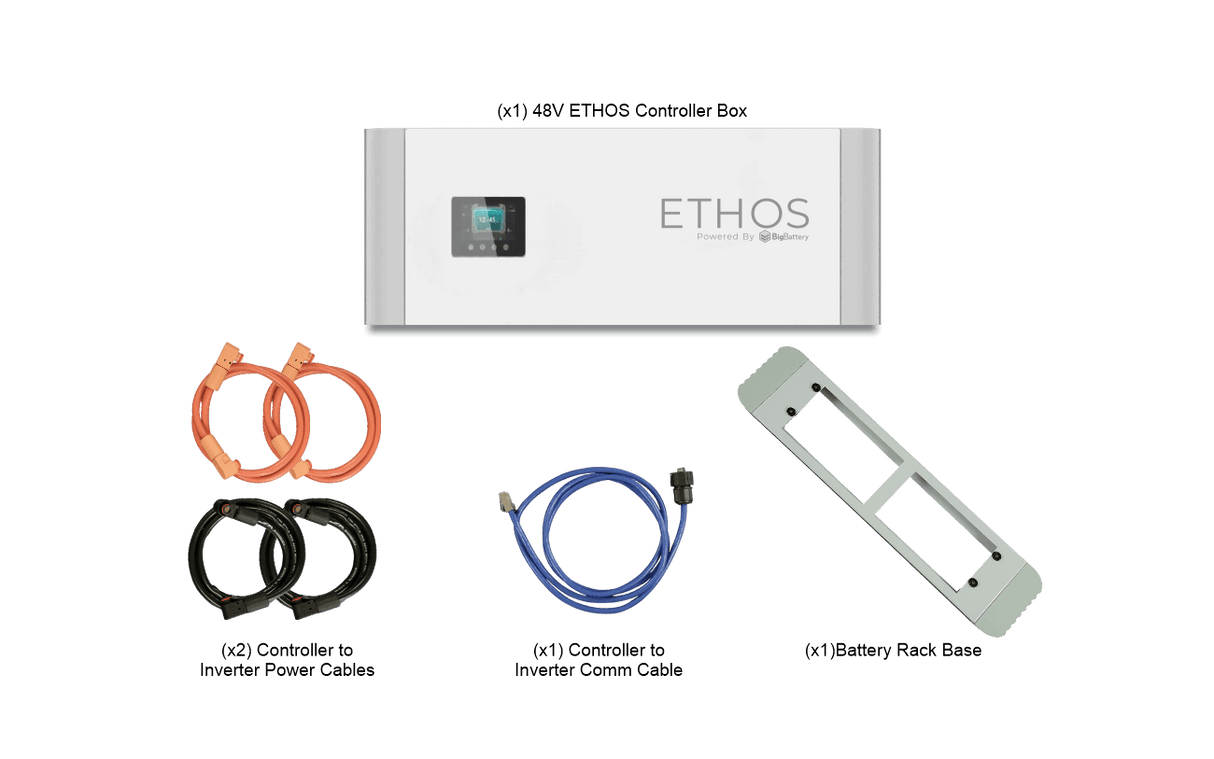

  • 1 × ETHOS Control Box (CNT060)

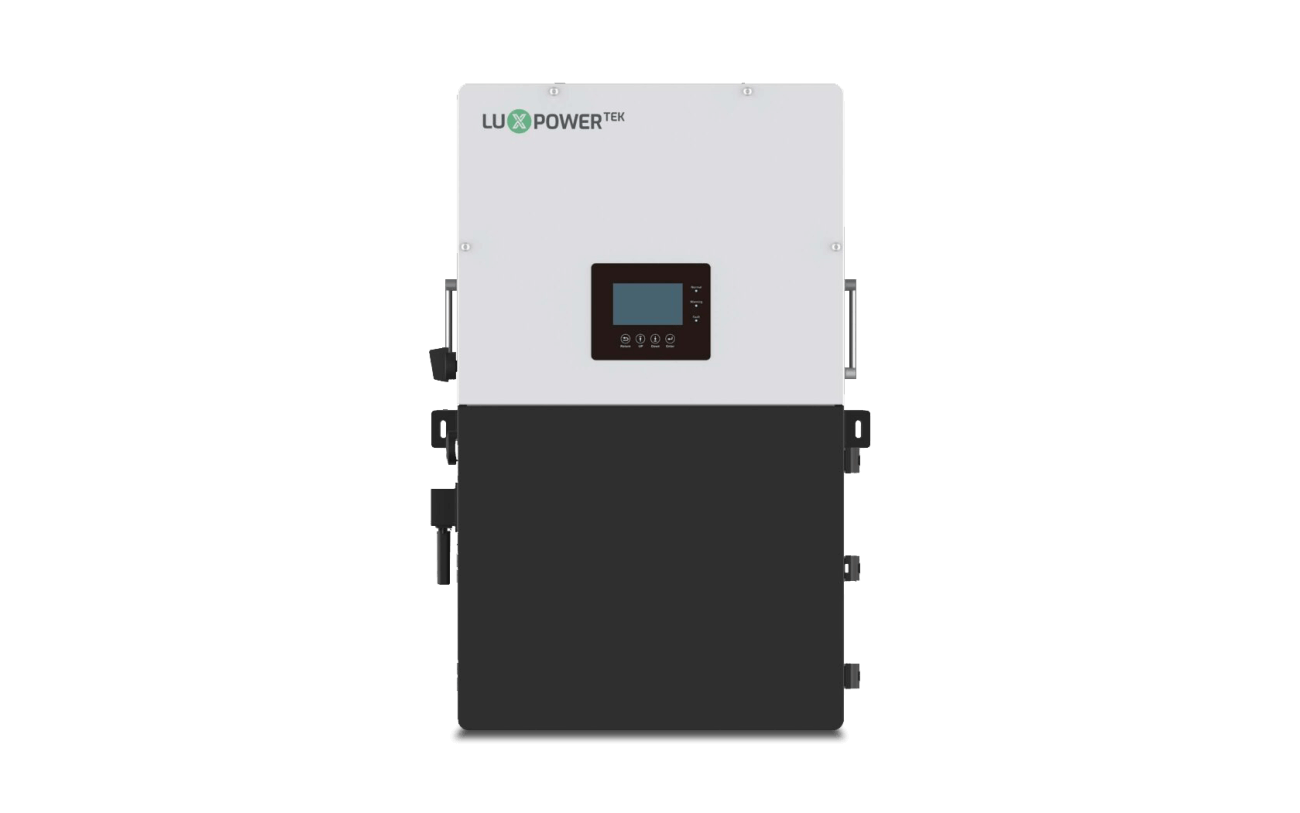

  • 1 × LUXPower 12kW (18kPV) Hybrid Inverter (INV020)

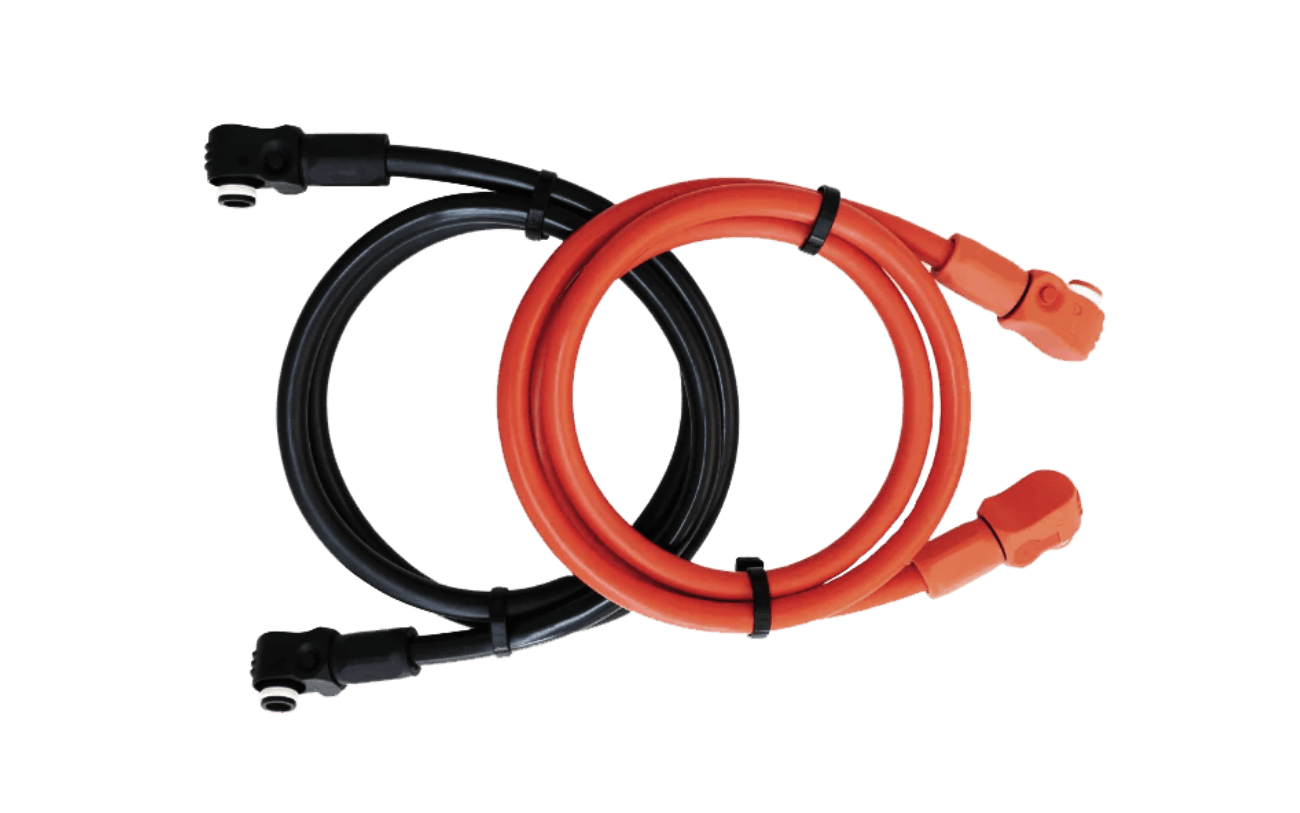

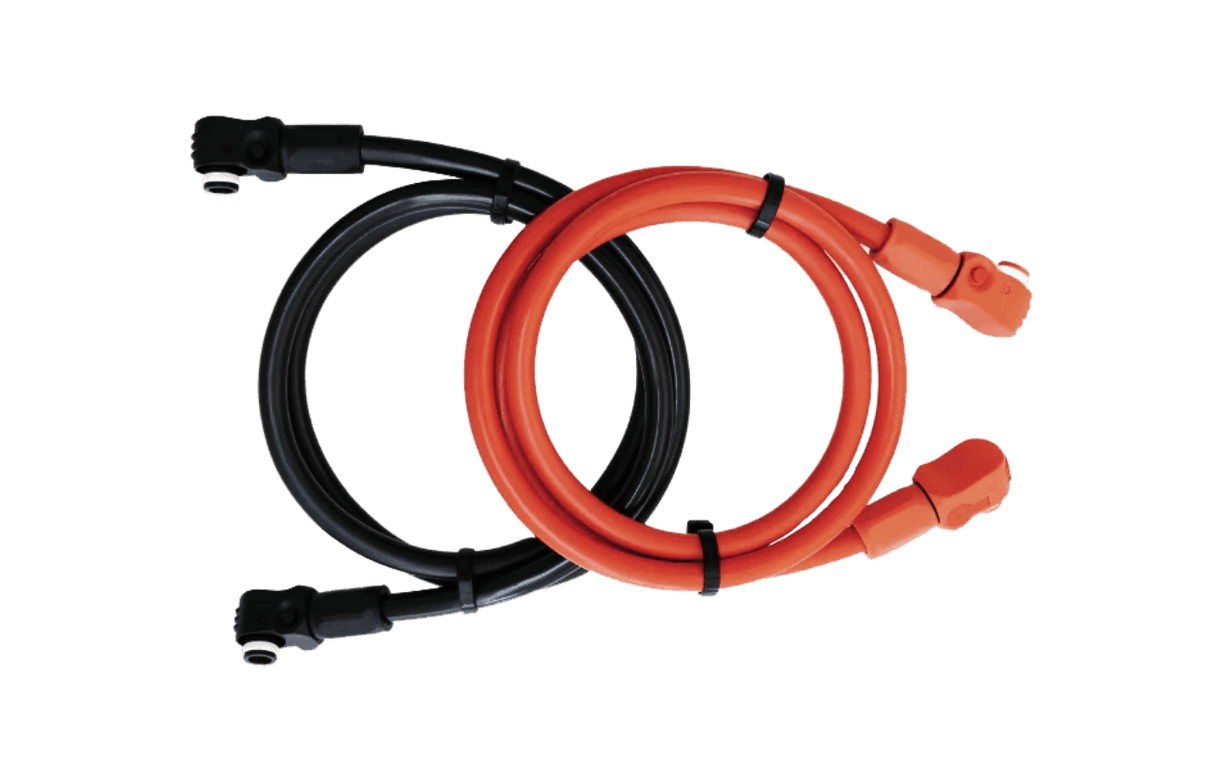

  • 1 × 10kWh Ethos Controller to Battery Power Cable 31.5" inch (800mm) (CBL088)

Designed For 48V Applications

  • RESIDENTIAL POWER SYSTEMS
  • HOME SOLAR SYSTEMS
  • CABINS & TINY HOMES
  • FAMILY HOMES & MANSIONS
  • OFF-GRID HOMESTEADS
  • EMERGENCY POWER
  • WHOLE HOME BACKUP
  • LEAD ACID REPLACEMENT

VIDEOS

Product Specifications

BigBattery 12kW 10.2kWh ETHOS Energy Storage System (ESS) Product Specifications

SKU: K0954
GTIN-12 (U.P.C.): 850061252005
System Voltage: 48V
Nominal Voltage: 51.2V
Chemistry: LiFePO4
kWh Capacity: 10.24kWh
Ah Capacity: 200Ah
Charging Voltage Range: 55.6 - 57V
Max Charge Voltage: 57V
Operating Voltage Range: 48 – 57V
Suggested Low Voltage Cutoff: 48 – 50.8V
BMS Cutoff Range: 42 - 47V
Cell Configuration: 16S 2P
Max Continuous Discharge Current: 200A
Max Continuous Power: 10240W
Max Discharge Peak Current: 300A (Max 5 seconds)
Max Charge Current: 200A
Charge Temperature Range: 32°F - 113°F (0°C - 45°C)
Discharge Temperature Range: -4°F - 140°F (-20°C - 60°C)
Optimal Discharge Temperature Range: 59°F - 95°F (15°C - 35°C)
Storage Temperature Range (SoC >50%): -4°F - 113°F (-20°C - 45°C) (Max 6 months)
Weight: 273 lb (123.8 kg)
Depth: 6.7 in (170 mm)
Width: 26.5 in (674 mm)
Height: 43.3 in (1100 mm)
Max Connections: Up to (16) parallel connections per control box
Protection Rating: IP65
Communications: CANBus / RS485

Product Manual

BigBattery 12kW 10.2kWh ETHOS Energy Storage System (ESS) Product Manual

Spec Sheet Download:
User Manual Download:
UL9540 Certification Download:
UL1973 Certification Download:
Safety Data Sheet Download:
View Our CEC Listing:

Inverter Downloads

Spec Sheet Download:
User Manual Download:
WiFi Setup Guide:
Rapid ShutDown Certificate:
UL1741 Certificate:
IEEE1547 Certificate:

Product Warranty & Return Policy

BigBattery Warranty

In the unlikely event you are having an issue with one of our batteries, we have developed a
straightforward Warranty & Return Policy servicing all customers in the USA:

  • Real (10) Year Warranty

    All our batteries come with a 10-Year Full Repair/Replacement Warranty. If our batteries malfunction
    due to component or manufacturing error, the product will be repaired or replaced free of charge.

  • Full Lifetime Tech Support & Customer Service

    All batteries include a Free Lifetime Technical Support & Troubleshooting Service. If you have any
    questions or need any help, simply call us at +1 (818) 280-3091 from 9am – 5pm, Monday – Friday, or
    send us an email anytime at Support@BigBattery.com.

  • Free Repair & Replacement

    All batteries are built to last a minimum of 10 years. We stand by the quality of our batteries. If any parts within our battery fail due to defects or manufacturing error within the next 10 years, we will fix or replace your battery free of charge. In addition, for the first year of the warranty we will even cover all shipping costs from/to your purchase address within the continental US.

  • Highest Quality Guarantee

    BigBattery utilizes Tier 1 cells to provide the highest quality lithium battery packs in the USA. Depending on the model, use case and environment, your battery is designed to last between 3,500 – 8,000 cycles when used as intended within our published battery specifications.

  • Covered Products

    This Warranty covers all battery packs from the “Date Of Purchase” from BigBattery for 10 years and
    all accessories included for 30 Days.

  • Automated Warranty Registration

    No warranty registration is needed. Warranties are automatically recorded via an internal customer
    database via serial number and QR code.

  • Product Manuals & Specification Sheets

    BigBattery provides a proprietary QR code on every battery. Scan this QR code with any phone to view
    the Product Manual and Product Spec Sheet for your specific battery model. Providing these documents
    to you in a digital format helps to protect our environment and provides you the most updated information
    on your product in real time.

  • Domestic Warranty Claim Support

    To start a warranty claim, please email us directly at Support@BigBattery.com to create a ticket. Include a written description of the problem and pictures if possible. Upon receipt, our Tech Support team will reach out to you within 24 – 48 hours to troubleshoot. If the battery has been purchased within a year if the issue being reported to BigBattery, you will be sent a Return Shipping Label at no cost. After the first year, you will have the option to pay for the shipping, or arrange your own shipping back to BigBattery. If the label is provided by BigBattery, please include a copy of this label in the return box or pallet when our 3rd party logistics provider arrives to pickup your return. All returns will be inspected prior to repair, replacement, or reimbursement, depending on the circumstances of return and availability of similar items. For detailed instructions, please review our Warranty Repair/Replacement Services section below.

  • Returning Accessories

    This Warranty includes a 30-Day replacement for all accessories (Anderson connectors, wiring, chargers, etc.)
    included with your battery. If product is not defective or damaged upon return, refunds will be offered based on
    the purchase price of the unit minus a 20% restocking fee.

  • Change Your Mind

    That’s OK! All our batteries come with a 30-Day money back guarantee. Returns will be subject to a 20% restocking
    fee
    . Call or email customer service for a free shipping return label.

  • Non-Transferable

    Our Warranty applies to the original owner. If you wish to transfer your Warranty to another party, you can do so
    within 30 days of your purchase by sending a Warranty Transfer Request to Support@BigBattery.com.

  • Return Hazmat Fee

    Due to the shipping regulations of lithium batteries, please note that some battery returns may require special
    documentation and packaging, and these instances could encounter extra fees if a customer is attempting to
    return a battery not covered by our Repair and Replacement Policy.

  • Battery Abuse Disclaimer

    This warranty does not cover damages resulting from misuse, abuse, accidents, alterations, or improper charging/
    installation of our product. Please scan the QR code on your battery and read the Manual prior to installation and
    charging. DIY modifications or damage due to gross negligence or abuse will void your Warranty.

  • Fraud Protection

    Repair, replacement, and refunds for your purchase will only be possible after your returned battery
    has been received and fully inspected at our facility.

  • Limitation of Damages

    In no event shall BigBattery, Inc. be liable for consequential damages due to breach of this Warranty.

  • Customer Satisfaction

    If buyers are not satisfied for any reason after speaking with Level 3 Tech Support and/or our Customer Service team,
    all original buyers may escalate dispute resolutions to our CTO for review. We aim to put our customers first, resolve
    any issues, and ensure that all customers are happy with their purchase from BigBattery.

Rev. March 2023

Warranty Details

10-Year Repair/Replacement Warranty Coverage Details: BigBattery, Inc. warrants the covered product to be free of all defects in material and workmanship for 10 years from the auto-registered date of purchase. This Warranty extends to the original buyer for the duration of 10 years.

All BigBattery batteries are designed to operate for a minimum of 10 years and require zero maintenance. Some BigBattery batteries can last up to 22 years depending on model, use case, and environmental variables.

BigBattery batteries are also guaranteed to hold a reasonable amount of capacity based on the time in service (see exclusion for details on limits). In the case of a diminished capacity claim, the customer has the opt
