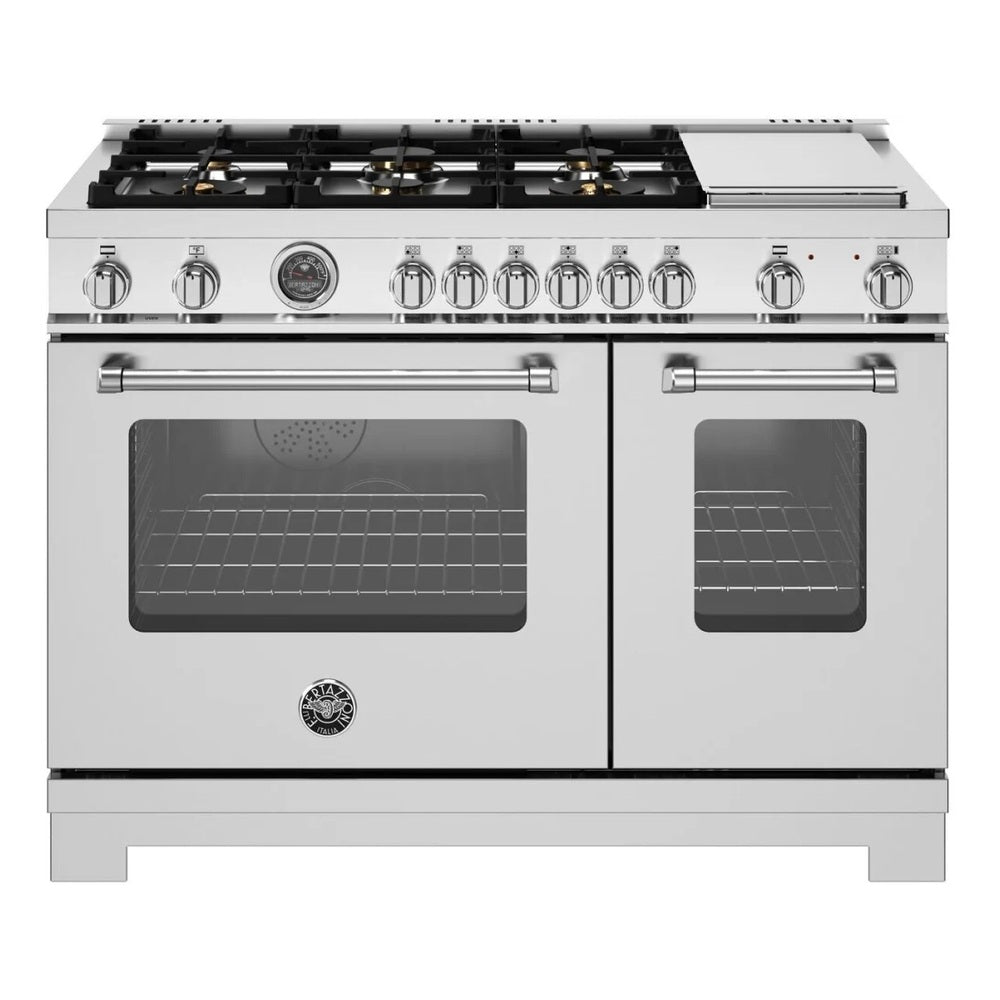

Bertazzoni Master Series 48 inch Gas Range with 6 Brass Burners, Electric Griddle, 7.1 cu. ft. Total Oven Capacity and Dual Convection - MAS486BTFGMXT*

48 inch All Gas Range, 6 Brass Burner and Griddle ,Master Series

The new Bertazzoni ranges are superb cooking appliances designed, engineered and made in Italy. All Bertazzoni appliances integrate seamlessly into style-harmonized suites for a true, high-performing kitchen.

The high-efficiency maintop with 6 brass burners and electric griddle features 2 dual ring 19,000 BTU power-burners that boil water in under 6 minutes (best in class), and 4 additional MonoBloc burners of variable size and power to suit every style of cooking, with delicate simmer at 750 BTUs. The stainless steel griddle with integrated cover provides additional cooking options.

The 4.7 cubic feet main oven cavity is the largest in its class, with dual convection fan for balanced airflow and even temperature baking and roasting on 7 shelf levels. The elegant digital gauge gives precise control of oven temperature during pre-heating, roasting and baking, and has integrated controls for the food temperature probe. The extra wide infrared gas broiler is ideal for grilling and searing at high heat. The 2.4 cubic feet auxiliary oven is perfect for smaller dishes and for warming. Both ovens include convenient features such as smooth telescopic glides for the oven shelves and soft-close doors. The edge-to-edge interior oven glass door maximizes interior volume and can be wiped clean without effort.

The fingerprint resistant finish on all knobs, handles, and stainless steel oven door surfaces makes cleaning a breeze.

Optional Collezione Metalli décor sets knobs and handles are available in contrasting metals - satin gold and black nickel to personalize these accent style elements on your range, as well as all refrigerators and dishwashers in your kitchen suite.

All Bertazzoni appliances are covered by a 2-year warranty.

This model is also available with LP gas connection.

---

Highlights

Counter Depth Worktop and Range

Bertazzoni’s Counter-Depth Ranges are expertly crafted to blend perfectly with your kitchen cabinetry, offering a sophisticated, streamlined look that enhances the overall design of your space.

Best in Class Burners

Experience culinary precision and safety with Bertazzoni's best-in-class burners, expertly engineered for rapid boiling, energy efficiency, and precise simmering control.

Thermocouple Gas Safety System

Bertazzoni’s Thermocouple Gas Safety System shuts off gas flow instantly if a flame is extinguished, ensuring top-tier safety and reliability. Every burner is independently equipped for unparalleled protection and peace of mind.

Category Leading Range Oven Cavity

Discover unparalleled cooking precision with Bertazzoni’s counter-depth ranges, featuring the largest oven cavities in their category.

With up to seven cooking levels, a dual convection system, and best-in-class temperature management, Bertazzoni ranges ensure even heat distribution and flawless results.

Continuous contour grates and single piece worktop

Modelled on commercial grade cast iron contour grates, the maintop offers a larger and more stable cooking surface. Designed to fit precisely and equipped with nonscratch larger silicon buffers, it helps keep cookware more stable. The one piece molded worktop has no sharp angles or dirt traps, making cleaning quick and easy. The elegantly designed low-profile back guard makes flush counter depth installation easily achievable as well as making it extremely effective in an island configuration.

Gas convection oven

The precision temperature control system gives you complete control of your oven. Even heat distribution on all 7 levels offers consistent temperatures with best-in-class accuracy, accurately monitored with the timelessly elegant temperature gauge. The full oven width infrared gas broiler delivers a truly professional performance.

High-efficiency maintop and digital food probe

Bertazzoni engineers have worked to design a highly efficient worktop by reducing the flame-to-cookware distance for faster heating. More lateral space has been created between the burners so you can use larger cookware more effectively. This digital thermostat and user interface make cooking a large variety of dishes at exactly the right temperature simple. It constantly monitors the temperature at the heart of the dish and adjusts the oven temperature automatically for even cooking and perfect results every time.

Discover Collezione Metalli for Master Series

Now you can add an exquisite personal touch to your Master Series appliances with the new Collezione Metalli Décor set.

---

Features

Continuous contour grates and single piece worktop

Modelled on commercial grade cast iron contour grates, the maintop offers a larger and more stable cooking surface. Designed to fit precisely and equipped with nonscratch larger silicon buffers, it helps keep cookware more stable. The one piece molded worktop has no sharp angles or dirt traps, making cleaning quick and easy. The elegantly designed low-profile back guard makes flush counter depth installation easily achievable as well as making it extremely effective in an island configuration.

Gas convection oven

The precision temperature control system gives you complete control of your oven. Even heat distribution on all 7 levels offers consistent temperatures with best-in-class accuracy, accurately monitored with the timelessly elegant temperature gauge. The full oven width infrared gas broiler delivers a truly professional performance.

High-efficiency maintop and digital food probe

Bertazzoni engineers have worked to design a highly efficient worktop by reducing the flame-to-cookware distance for faster heating. More lateral space has been created between the burners so you can use larger cookware more effectively. This digital thermostat and user interface make cooking a large variety of dishes at exactly the right temperature simple. It constantly monitors the temperature at the heart of the dish and adjusts the oven temperature automatically for even cooking and perfect results every time.

Exclusive Finish and Materials

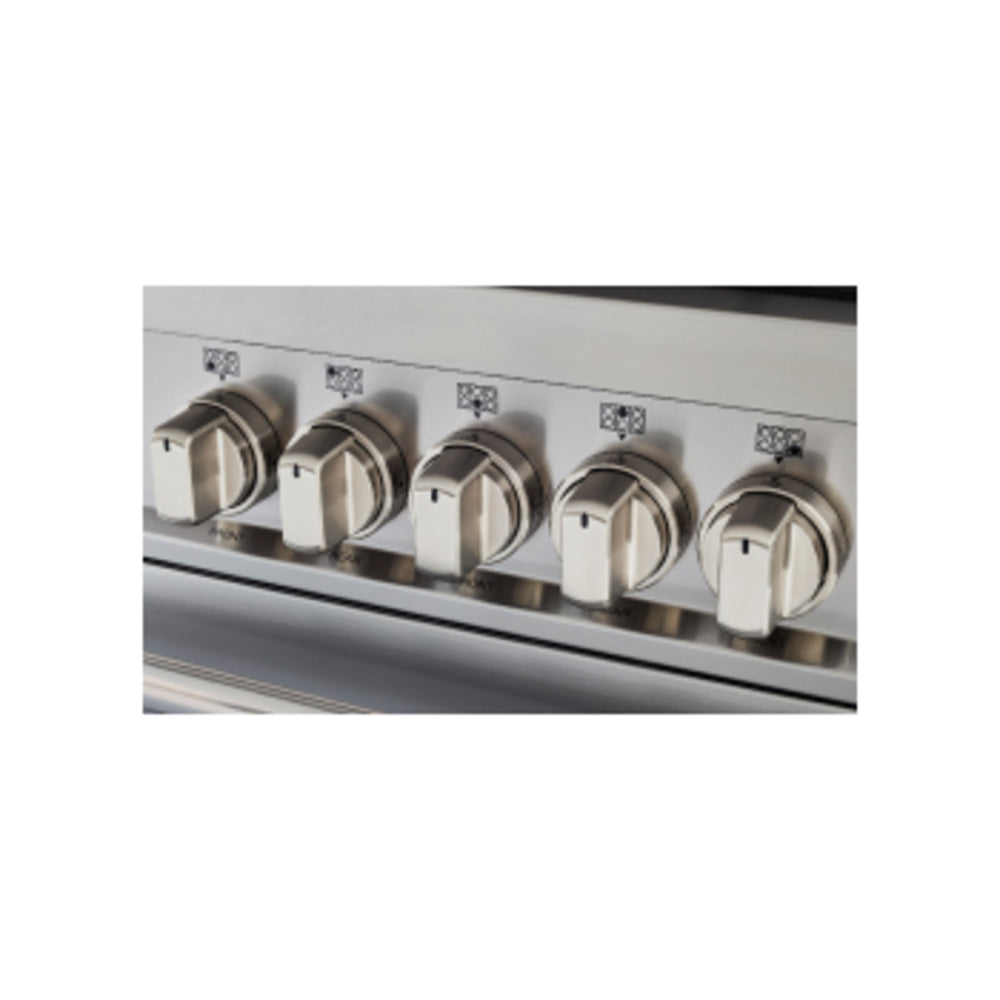

Metal knobs and handles make the range a standout in every kitchen. Stainless toekick included with the range. Optional Décor Sets knobs and handles in contrasting metals - satin gold and black nickel - for aesthetic customization.

Bertazzoni signature counter-deep maintop

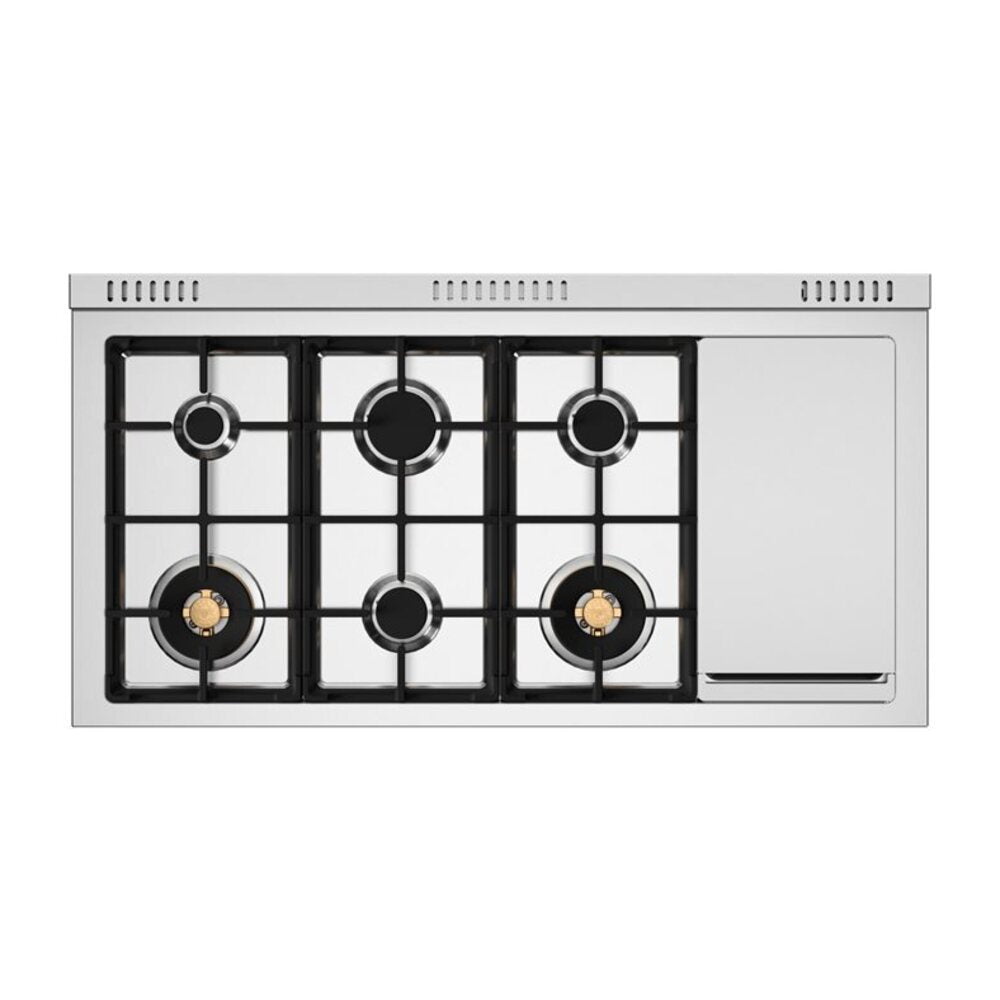

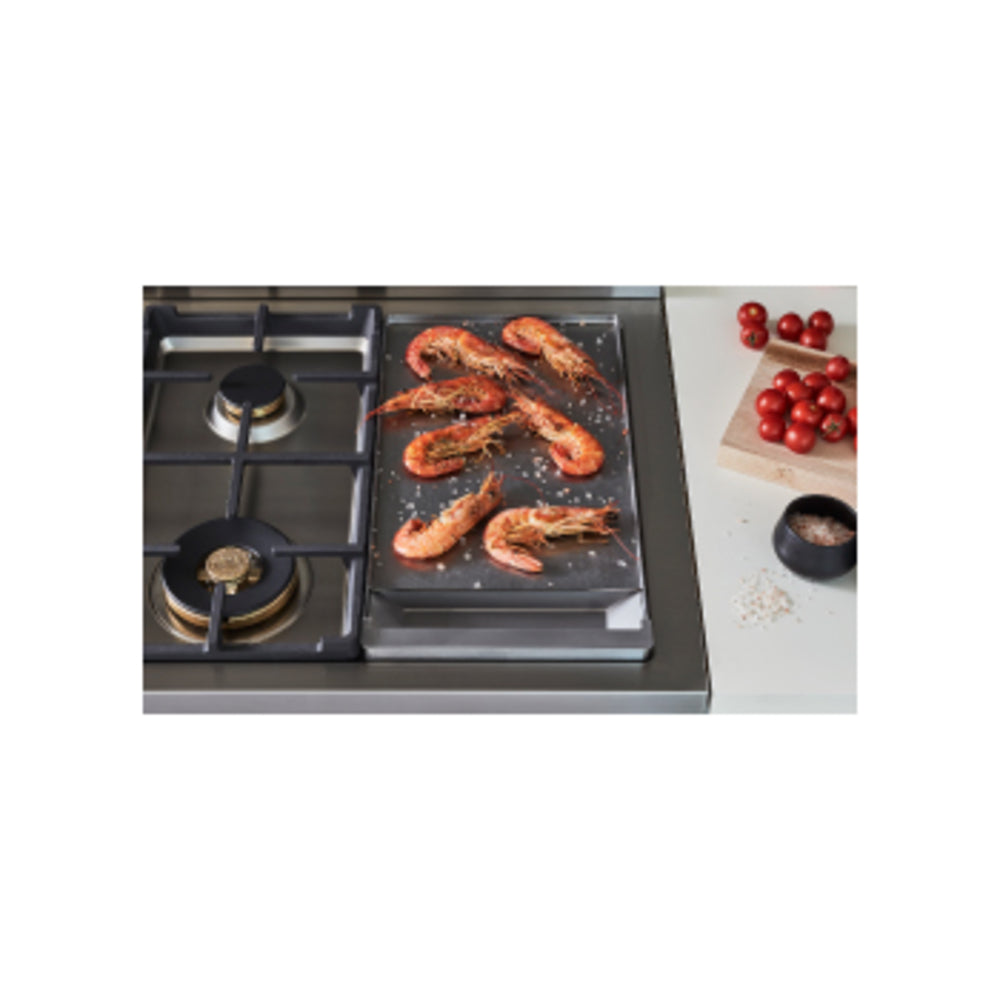

Bertazzoni signature stainless counter-deep maintop is designed to install flush with most kitchen countertops for a perfectly integrated look. Precise and flexible heating is generated through 6 Mono-bloc brass burners. 2 x 19000 BTUs power burners with dual ring of flame boil water in 6 minutes flat. The stainless steel electric griddle comes with a handy integrated cover.

Extra large oven with dual convection

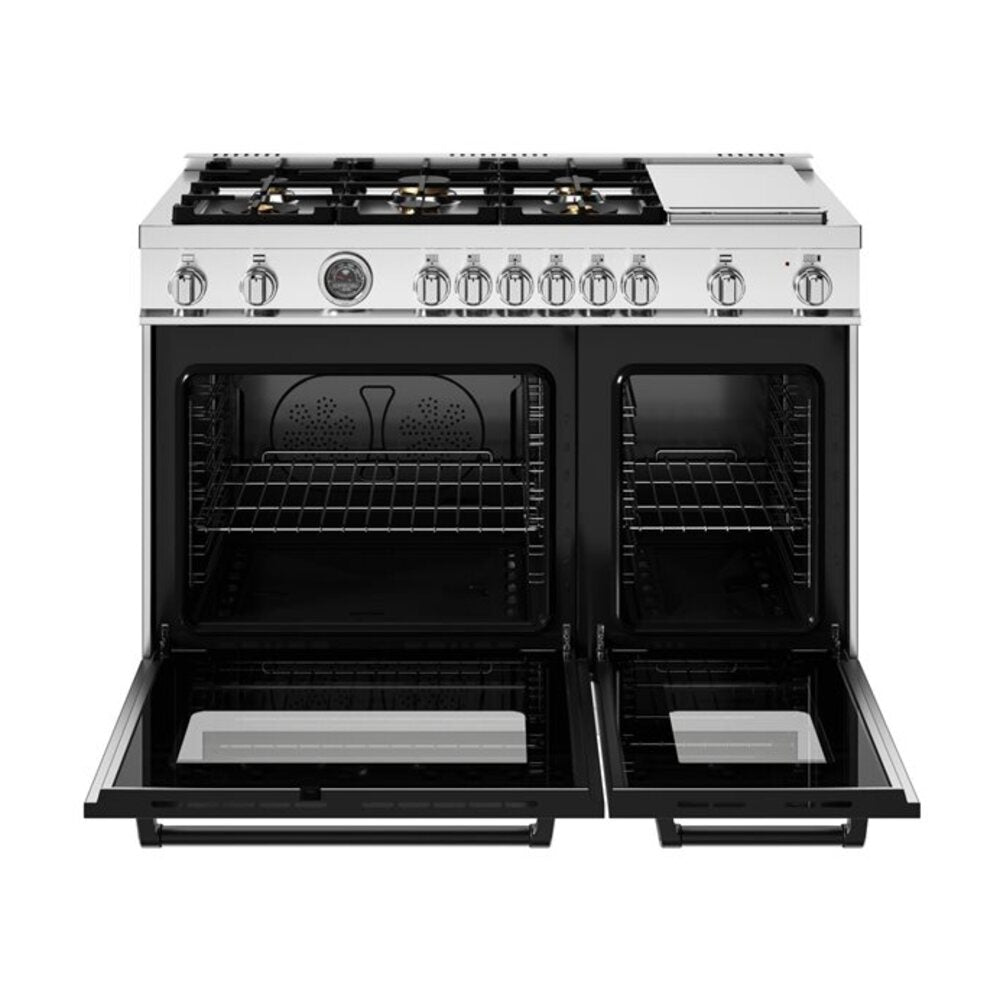

The 4.7 cu.ft gas oven with dual horizontal convection allows even baking and roasting on 7 shelf levels. A 2.4 cu.ft auxiliary oven helps prepare multiple dishes at the same time. Bertazzoni ovens are equipped with an extra-large high-power broiler for broiling and grilling

Advanced programming and controls for the oven

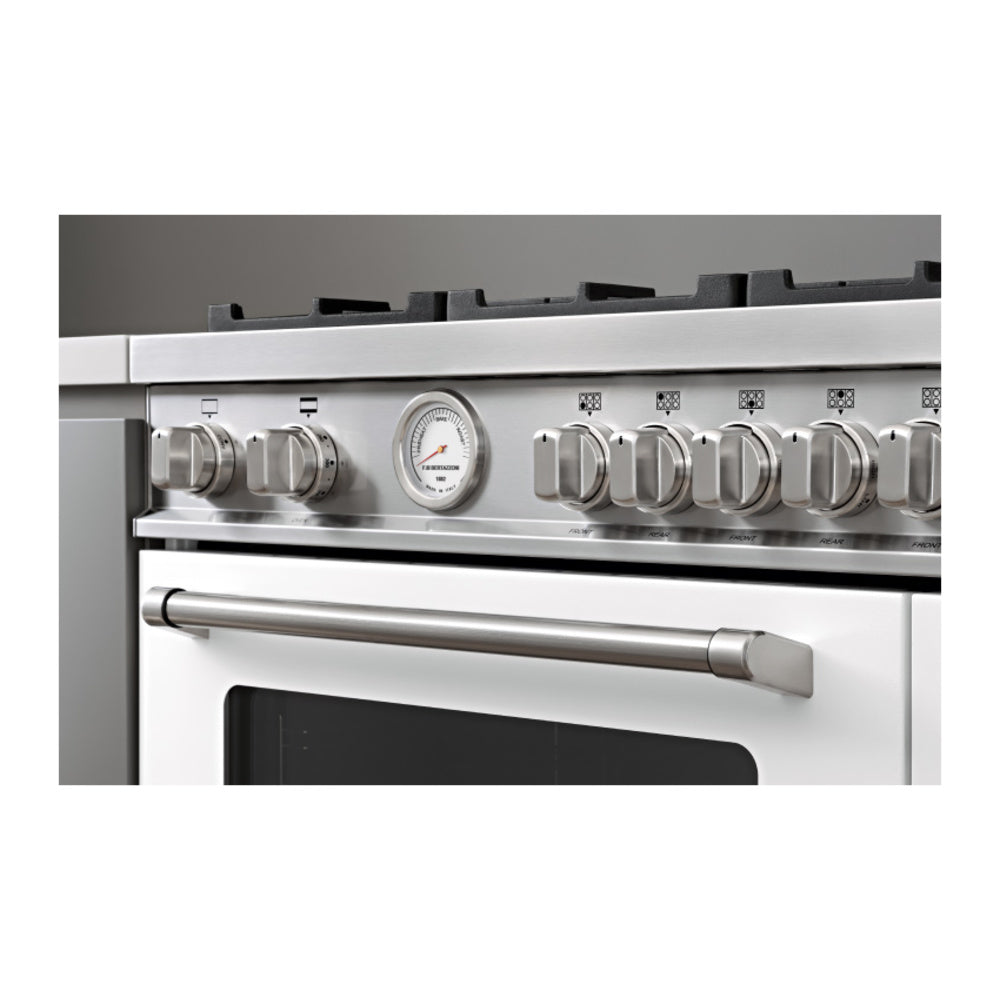

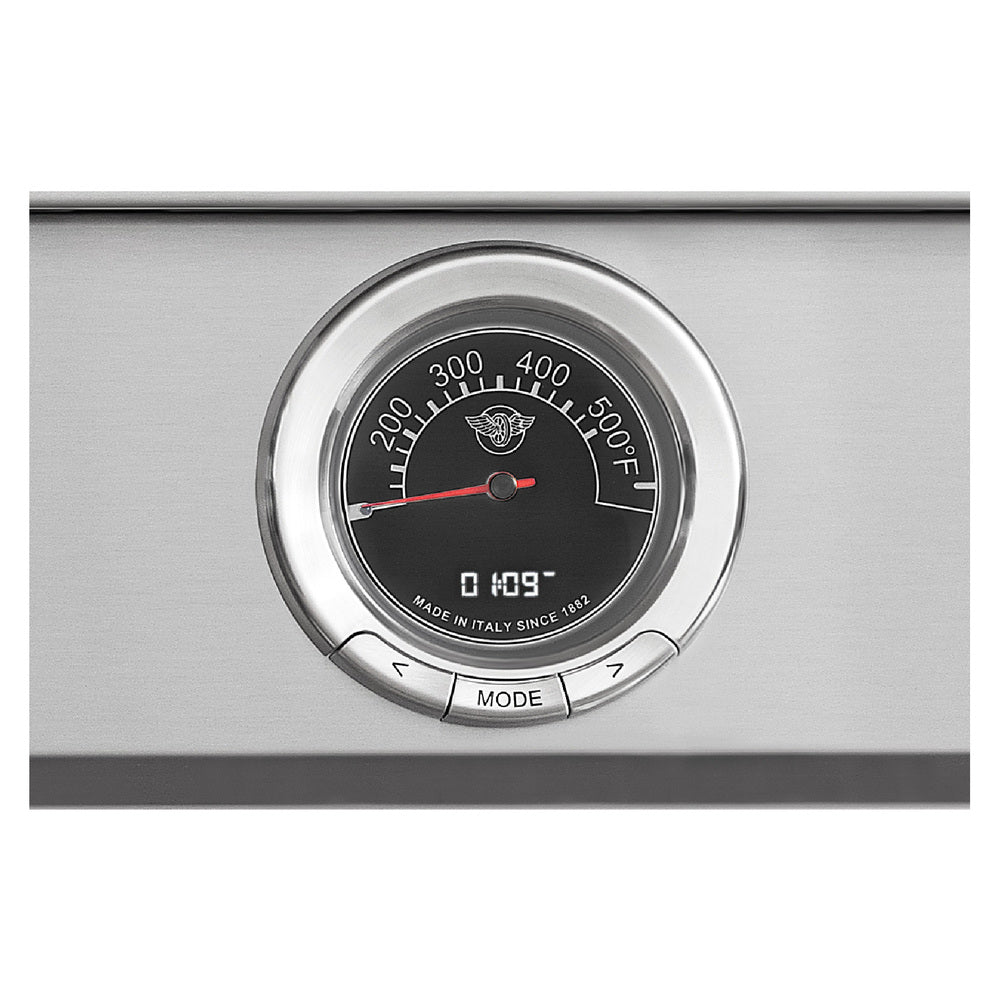

The elegant digital gauge gives precise control of oven temperature during pre-heating, roasting and baking, and has integrated controls for the food temperature probe.

Best-in-class features and design

The soft-close oven door with edge-to-edge tempered glass is a masterpiece of European engineering and makes the oven door very easy to wipe clean. Convenient smooth-glide telescopic racks on 2 levels help loading and unloading the oven.

Specifications

Feature	Details
Color Family	Stainless Steel
Color	Stainless Steel
Width	47 7/8"
Exterior Width	48"
Height	36"
Depth	27 1/2"
Oven Total Capacity (Cu Ft)	7.1
Handle Shape	Tubular
Grill	No
Griddle	Yes
French Top	No
Burner/Element Output N1	3500 BTU
Burner/Element Output N2	5900 BTU
Burner/Element Output N3	19000 BTU
Burner/Element Output N4	19000 BTU
Burner/Element Output N5	10400 BTU
Burner/Element Output N6	5900 BTU
Griddle Output	1100 Watts
Viewing Window	Yes
Interior Oven Light	Yes
Oven BTUs	14000 BTU
Star/K Certified	No
Digital Temperature Display	No
Convection	Yes
True European Convection	Yes
Dual Door	Yes
Removable Door	No
Brass Burners	Yes
Temperature Probe	Yes
Cast Iron Grates	Yes
Proofing	No
Voltage	110
Digital Clock	No
Downdraft	No
Series	Master
Number Of Burners/Elements	6
ADA Compliant	No
Continuous Grates	Yes
Sabbath Mode	No
Main Oven Capacity (Cu Ft)	4.7
Second Oven Capacity (Cu Ft)	2.4
Highest Burner Output	19000 BTU
Double Oven	Yes
Oven Racks	4
Broiler	Yes
Amps	10
Frequency	60 Hz
Drawer	None
Brand	Bertazzoni
LP Convertible	Yes
Simmer Burner	Yes
Appliance Category	Range
Gas Conversion Kit Included	Yes
Control Location	Front
Number Of Ovens	Double Oven
Smart Appliance	No
Wi/Fi	No
Warranty	2 Year Parts and Labor
Fingerprint Resistant	Yes
Air Fry	No
Steam Oven	No
Delay Bake	No
Fuel Type	Gas
Oven Control Type	Knobs
Oven Cleaning Type	Manual Clean
Cooktop Control Type	Knobs
Style	Freestanding
Gas Type	Natural Gas
Design Style	Pro Style
Burner/Element Type	Sealed Burner
Handle Type	Bar Handle
Pro/Style	Yes
